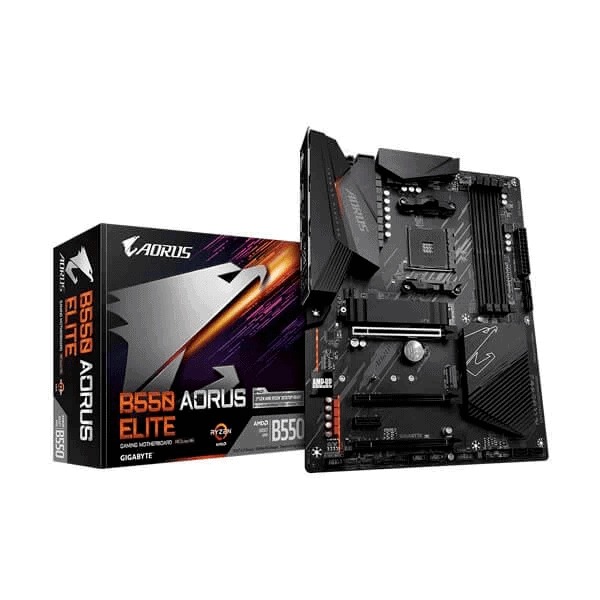

Gigabyte B550 AORUS Elite V2 Gaming Motherboard

12*+2 Phases Digital Twin Power Design

• Digital PWM Controller delivers appropriate voltage to the CPU
• With 12+2 Phases 50A DrMOS, each power phase connects to the CPU and provides more balanced and efficient power delivery. With capability to handle up to 700 Amps current in a total
• All-solid capacitors to improve transient response and minimize oscillation
• 24pin+8pin solid pin CPU power connectors

B550 AORUS ELITE V2 motherboard uses a 12+2 phases Digital Twin Power Design which includes PWM controller, DrMOS and Ferrite core choke as high quality selected components. The 100% digital controller offers incredible precision in delivering power to the motherboard’s most power-hungry and energy-sensitive components, allowing enthusiasts to get the absolute maximum performance from 3rd Gen AMD Ryzen processors.

* 6+6 Phases parallel power design

1. Intersil Digital PWM Controller

2. 12+2 Phases Digital Twin Power Design with 50A DrMOS

3. All-Solid Capacitors

4. 8 Solid Pin CPU Power Connector

2X Copper PCB

GIGABYTE’s exclusive 2X Copper PCBs design provides sufficient power trace paths between components to handle greater than normal power loads and to remove heat from the critical CPU power delivery area. This is essential to ensure the motherboard is able to handle the increased power loads that is necessary when overclocking.

Memory Layout—Daisy Chain Design

With the optimized daisy-chain routing, the B550 motherboard provides a proven speed of DDR4-4000MHz and beyond with high density memory modules*. Optimized daisy-chained routing eliminates the stub effect, pushes the one DIMM per channel in dual channel interleaving mode to hit higher memory frequencies, providing professional gamers a denser and faster system memory experience.

* Performance may vary in circumstances. Please refer to the QVL list for detail support information.

Single 32GB Support

With populated 2 DIMMs per channel on GIGABYTE B550 motherboards, the maximum memory capacity support is 128GB. For users who always run out of memory capacity, they are able to enjoy more bandwidth now for memory-intensive application such as rendering and video editing.

PCIe 4.0 Hardware Design

1. PCIe 4.0 Slot

PCIe 4.0 x16 slot with faster bandwidth and lower impedance.

2. M.2 PCIe 4.0 Slot

M.2 PCIe 4.0 x4 slot with lower impedance.

* Product uses PCIe 4.0 grade material. Actual support varies by hardware configuration

Dual NVMe M.2 PCIe SSDs in RAID 0 Support

Performance with PCIe 4.0 x4 + PCIe 3.0 x4 NVMe PCIe SSDs

B550 AORUS motherboards offer the industry’s best compatibility in terms of NVMe storage for users who demand high capacity and seek the best performance. AORUS’ unique design can be configured in RAID for record speeds of up to 6560 MB/s (Sequential Read), making AORUS the obvious choice for the ultimate PC.

Thermal Solution

1. Enlarged Surface Heatsinks

2. 5 W/mK Thermal Conductivity Pad

By using 5 W/mK high thermal conductivity pads, it can transfer 2.7x more heat as compared to traditional thermal pads in the same time.

3. M.2 Thermal Guard

Built-in M.2 thermal guard heatsink helps the high-speed, large capacity PCIe 4.0/3.0 SSDs to prevent overheat throttling and performance bottlenecks.

Thermal Throttling as Temperature Rises

Hybrid Fan Pin Headers

Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers, giving you absolute mastery over your PC.

All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.

Intelligent Fan Control Design

Achieve fan silence. With Fan Stop, map any fan to stop completely when temperatures drop below a specified threshold. Which fan stops, based on readings from which sensor, and at what temperature—all of it can be customized to your liking.

New Smart Fan 5 Software

Choose from different modes, Quiet to Full Speed, to match your system usage preferences.

For each fan or pump, you can use the intuitive fan curve to define trigger thresholds and corresponding fan speeds.

2.5GbE LAN Onboard

Adoption of 2.5G LAN provides up to 2.5 GbE network connectivity, with at least two times faster transfer speeds as compared to general 1GbE networking. It perfectly suits gamers and streamers with ultimate and smooth online experience. It is also backward compatible with Multi-Gig (10/100/1000/2500Mbps) RJ-45 Ethernet.

HDMI 2.1 for 4K / 60P / 21:9 / HDCP 2.3 Support

HDMI 2.1, which is backwards compatible with HDMI 2.0/ 1.4 and offering 48 Gb/s of bandwidth—two times more than previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), Full HDR and HDCP 2.3 support, to offer the best visual experience for viewers.

Note: Only New Gen AMD Ryzen with Radeon Graphics processors support displaying function.

Multi-Zone Light Show Design

Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, users will have complete control over the LEDs which surround the motherboard.

Note: Lighting effects depicted are for demonstration purposes only. Actual lighting effects may vary by model.

RGB FUSION Software

With an integrated intuitive user interface, the RGB Fusion 2.0 provides you with a better solution for customizing the lighting effects across all supported devices. From motherboards, graphics cards to the peripheral products, you can personalize your gaming rig with your own style and show off your build by sharing the profiles. In addition, the new gaming mode makes the lighting effects interactive with selected games to bring you the most immersive gaming experience.

GIGABYTE RGB Fusion APP

Don’t just make your PC shine, make it a work of art that friends will envy. With the GIGABYTE RGB Fusion mobile app users can watch as they control the lighting within their gaming PC. This gives users ease of access as they try and adjust colors and speeds for different modes, all of which can be achieved away from the keyboard and monitor of their PC.

Ultra Durable PCIe Armor

The innovative one-piece stainless steel shielding design from GIGABYTE reinforces the PCIe connectors to provide the extra strength required to support heavy graphics cards.

Solid Pin Power Connectors

B550 AORUS motherboards feature solid plated ATX 24pin & ATX 12V 8pin power connectors to offer a stable power supply during CPU overloading.

Solid Pin Power Connector Advantages

• Larger contact area for electricity
• More metal quantity to sustain higher power and generated heat
• Ultra durable and longer lifespan

BIOS

New User Interface

All new EASY MODE shows important hardware information in one page for CPU, Memory, Storage, and Fan.

My Favorites

Add constantly used items to the favorite menu for quick access.

Storage Information

Show all kinds of storage information for SATA, PCIE and M.2 interface.

Changelog

List all changes before saving and exiting BIOS. Quickly review overall settings modification.

Intuitive Load Line Curve

Clearly show each loadline calibration setting in an intuitive curve graph.

APP CENTER

GIGABYTE APP CENTER is a useful portal of all GIGABYTE MB utilities and drivers. You can choose any utility you want to install from APP CENTER and keep updated with the latest utilities and driver version.

EasyTune

GIGABYTE’s EasyTune is a simple and easy-to-use interface that allows users to fine-tune their system settings or adjust system and memory clocks and voltages in a Windows environment. With Smart Quick Boost, one click is all it takes to automatically overclock your system, giving an added performance boost when you need it the most.

@BIOS

The GIGABYTE @BIOS app allows you to update your system’s BIOS from within Windows using a simple and slick graphical user interface. @BIOS can automatically download the latest version from the GIGABYTE servers or you can update your BIOS from a file on your computer. @BIOS also allows you to save your current BIOS to a file, recover your previous BIOS from an image and backup your BIOS to an image.

System Information Viewer

GIGABYTE System Information Viewer is a central location that gives you access to your current system status. Monitor components such as the clocks and processor, set your preferred fan speed profile, create alerts when temperatures get too high or record your system’s behavior. These are the possibilities the System Information Viewer offers.

XSplit Gamecaster + Broadcaster: Cast Your Game Anytime, Anywhere

Now set up your stage and share the greatest gaming moments with XSplit Gamecaster + Broadcaster! Fully optimized social media integration is ready for real-time chats—keeping you notified yet focused in the game. It takes just one click to stream your gameplay to Twitch. Host your game like a pro!

* Free 14 days XSplit Gamecaster + Broadcaster Premium License.
