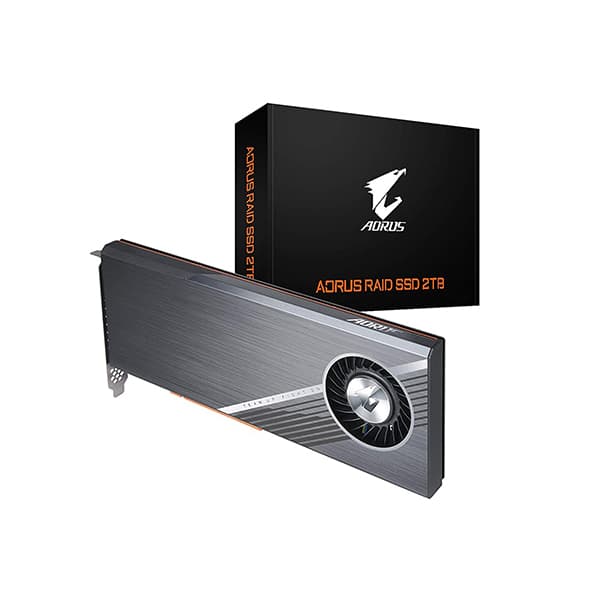

Name: GIGABYTE AORUS RAID 2TB Internal Solid State Drive
Brand: Gigabyte
SKU: ASACNE2200TTTDA
Price: 35200.00 INR
Availability: InStock

Form Factor : PCl Express Card
Interface : NVMe 1.3, PCIe 3.0 x8
Capacity : 2TB*

Seq. Read speed : up to 6,300 MB/s (QD32T1)**

GIGABYTE AORUS RAID GP-ASACNE2200TTTDA PCI-E 4 x 512GB PCI-Express 3.0 x8, NVMe 1.3 3D TLC Enterprise Solid State Drive

Gigabyte Aorus RAID 2TB 4xPCIe 3.0 512GB Enterprise NVMe SSD GP-ASACNE2200TTTDA

Feature

AORUS RAID ADAPTOR built in with 4 x PCIe 3.0 512GB NVMe SSD, Equipped with enterprise class NVMe RAID controller, Advanced Thermal Solution, Dedicated AORUS Storage Manager

Form Factor : PCl Express Card
Interface : NVMe 1.3, PCIe 3.0 x8
Capacity : 2TB*
Seq. Read speed : up to 6,300 MB/s (QD32T1)**
Seq. Write speed : up to 6,000 MB/s (QD32T1)**
Controller : Phison E12
NAND Flash : 3D TLC
Warranty: Limited 5-years

BEST UPGRADE SOLUTION FOR PCIE 3.0 PLATFORM

Gigabyte AORUS RAID SSD 2TB equipped with four high speed 512GB SSD and server class RAID controller, RDs optimized the design to push performance to the boundary to blazing fast speed up to 6300 MBs for sequential read speed and 6000 MBs for sequential write speed. It's almost two to three times faster than PCIe 3.0 SSD. No doubt it's the best upgrade solution for users who have a PCIe 3.0 platform such as Z390 but would like to experience PCIe 4.0 Ultra fast transfer rate in advance. It surely brings high efficiency to your work, shorten the time of waiting. It’s the perfect solution for people like video editors, 3D file creators and engineers who make giant files daily. Further more, you can easily to configure RAID array to meet your needs under BIOS setting.

Embedded with the Enterprise Level NVMe RAID Controller

The enterprise grade RAID Controller ensures server class performance reliability to unleash the full potential of normal consumer PCIe 3.0 SSD. The benefit of switch is low latency due to it does not do any hard work on NAND Flash management. The Marvell Intelligent NVMe Switch has x8 interface and connected up to four NVMe SSD behind switch and can be presented individually to the host system. In addition, user are free to configure RAID array as need, RAID1 for Data redundancy and RAID 0 for performance or both(RAID10). For more detail, please check here for more information.

Advance Thermal Solution for Extreme Performance

The thermal design is exclusively for high end SSDs with its smart active and passive cooling. It prevents SSDs from thermal throttling and ensures stable operation. The working temperature is 30%* lower with the armor, dense heatsink and reactive fan.

Key Features

Interface	PCI-Express 3.0×8, NVMe 1.3
Form Factor	PCI Express Card
Total Capacity	2TB
NAND	High Quality 3D TLC
External DDR Cache	512MB / per SSD
Sequential Read speed	Up to 6300 MB/s
Sequential Write speed	Up to 6000 MB/s
Mean time between failure (MTBF)	1.77 million hours
Power Consumption (Active)	Average: R : 19W; W : 19W
Power Consumption (Idle)	7.5W
Temperature (Operating)	0°C to 70°C
Temperature (Storage)	-40°C to 85°C
Compatibility	Please refer to the support list
Warranty	5 Years
