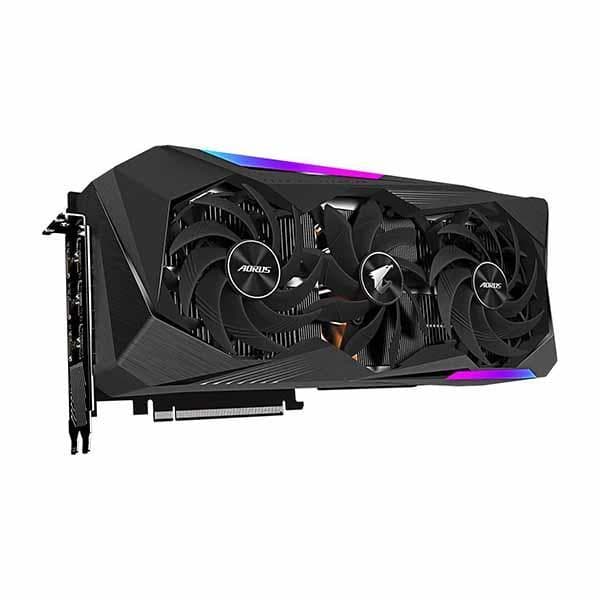

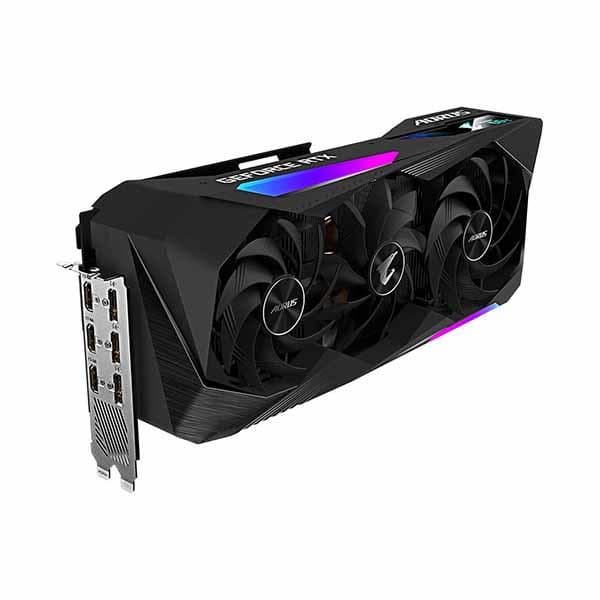

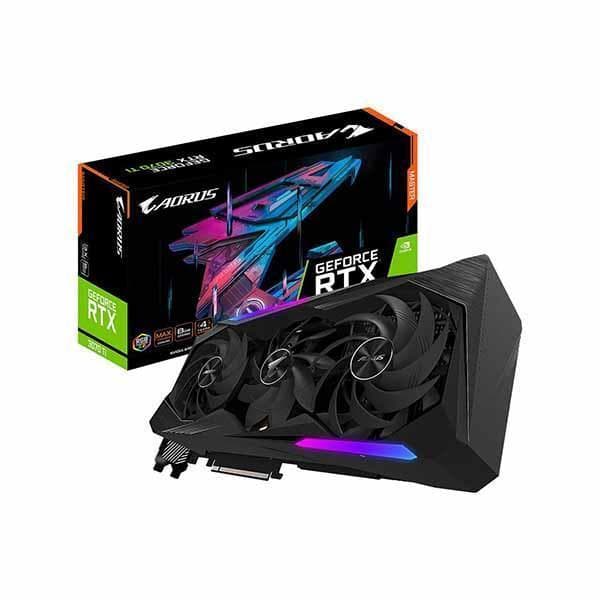

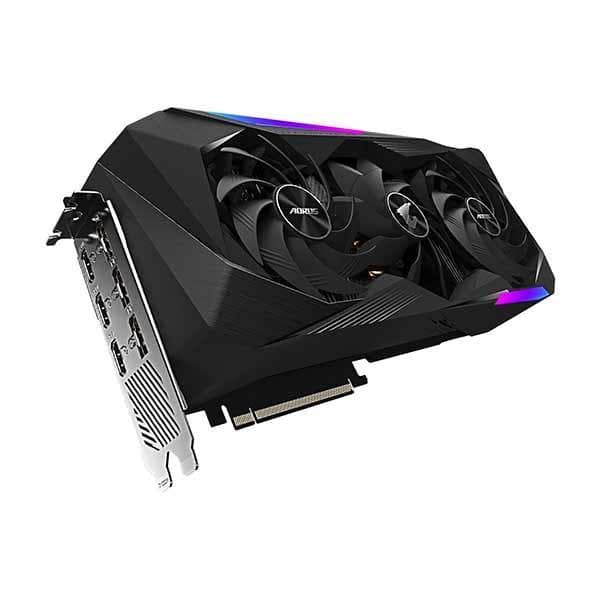

Gigabyte Aorus Master Geforce Rtx 3070 Ti 8gb Gddr6x Graphic Card

GIGABYTE AORUS GeForce RTX 3070 Ti 8GB GDDR6X PCI Express 4.0 ATX Video Card GV-N307TAORUS M-8GD

Features

• NVIDIA Ampere Streaming Multiprocessors
• 2nd Generation RT Cores
• 3rd Generation Tensor Cores
• Powered by GeForce RTX 3070 Ti
• RTX 3070 Ti Integrated with 8GB GDDR6X 256-bit memory interface
• MAX-Covered cooling
• LCD Edge View
• RGB Fusion 2.0
• Protection metal back plate
• 2 x HDMI 2.1, 1 x HDMI 2.0, 3 x DisplayPort 1.4

CORE CLOCK

• 1875 MHz (Reference Card: 1770 MHz)

DESIGN CONCEPT

In the Gigabyte AORUS dimension, everything is constructed digitally. The lighting and patterns are mapped onto the products with an efficient, free flowing style. Welcome to the Digital Code Era.

MAX-COVERED COOLING

The MAX-Covered cooling features two 115mm and one 100mm unique blade stack fans with wind claw design and alternate spinning, so the air pressure can completely cover the heatsink.

UNIQUE BLADE STACK FANS

The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

WIND CLAW DESIGN

Reinforce and channel the airflow to completely cover the heat sink.

ALTERNATE SPINNING

Reduce the turbulence of adjacent fans and increase air pressure.

SCREEN COOLING

Extended heatsink design allows air flow to pass through, providing better heat dissipation.

VAPOR CHAMBER & HEAT PIPE

With direct contact to the GPU and VRAM, the large vapor chamber combines the composite heat pipes to efficiently transfer heat generated from the interior cores to the heat sink.

ANGULAR FIN DESIGN

The angular and unequal fins height can channel the airflow through the fins and enlarge the contact surface.

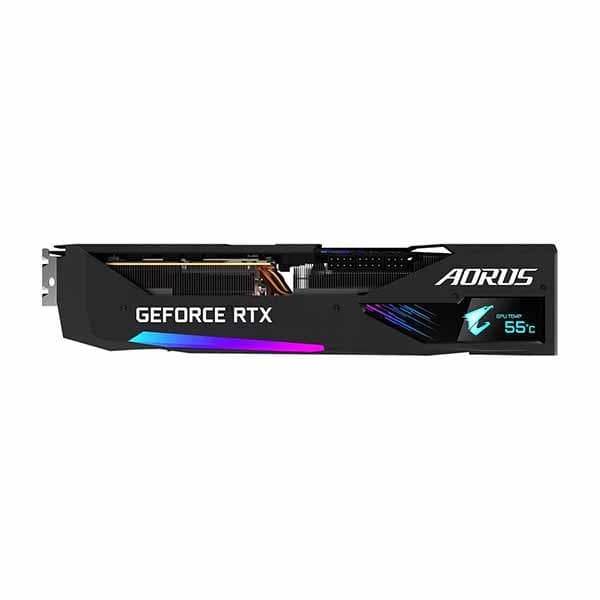

LCD EDGE VIEW

The LCD monitor not only display graphics card information, but also various favorite texts, pictures and GIFs. You can also adjust lighting effects via RGB FUSION 2.0 software.

ENTHUSIAST

Various GPU and VRAM status such as temperature, clock, usage and fan speed can be selected for real-time monitoring.

CUSTOM TEXT

Users can easily customize texts and fonts.

CUSTOM IMAGE

Support jpg, bmp and png file types. You can crop the image to fit.

CUSTOM GIF

Users can upload a favorite GIF video.

CHIBI TIME

TEAM UP. FIGHT ON.

RGB FUSION 2.0

With 16.7M customizable color options and numerous lighting effects, you can choose lighting effects or synchronize with other AORUS devices.

PERFORMANCE

GeForce RTX 3070 Ti with 8 GB memory and 608 GB/s memory bandwidth has 6144 CUDA® Cores, 2nd gen ray tracing cores and 3rd gen tensor cores operating in parallel. It is the most suitable solution for those who are gaming, rendering, and developing A.I. technology.

PROTECTION METAL BACK PLATE

The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.

DUAL BIOS

Silent mode will provide a quieter experience. The mode switch requires a reboot to take effect. The default is OC mode.

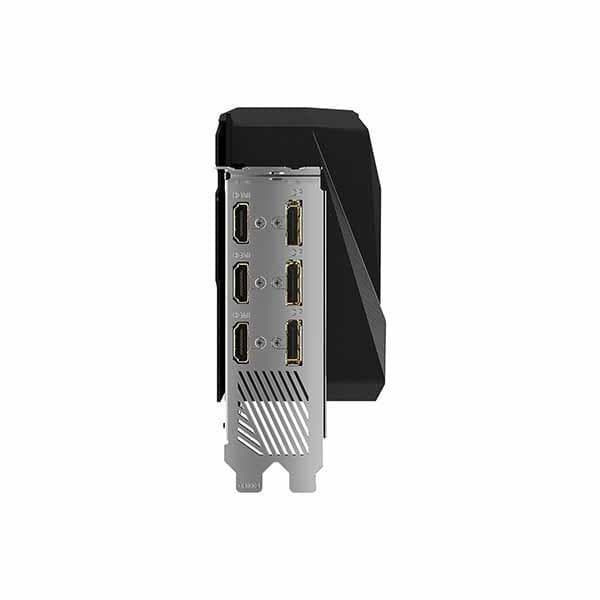

6 OUTPUTS

You can choose 3xHDMI or 3xDP for your monitors without any adaptors. (Option 4 views)

POWER INDICATORS

When experiencing any power supply abnormality, the indicator will alert gamers by flashing light.

EXCELLENCE

Excellent circuit design with the top-grade materials, not only maximizes the excellence of the GPU, but also maintains stable and long-life operation. EXTREME OVERCLOCKING RTX 3070 Ti graphics card uses the better power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET. ULTRA DURABILITY The Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. PCB COATING Dust resistant - shields from dust, insects, dropped screws, drill shavings, and abrasion. Moisture resistant - prevents unwanted conduction paths and board damage. Corrosion resistant - protects from salt spray, humidity, and corrosion. FRIENDLY PCB DESIGN Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build. INTUITIVE AORUS ENGINE Clock speeds, voltage, fan excellence, power target can be monitored and tuned in real-time according to your own preference through this intuitive interface.
