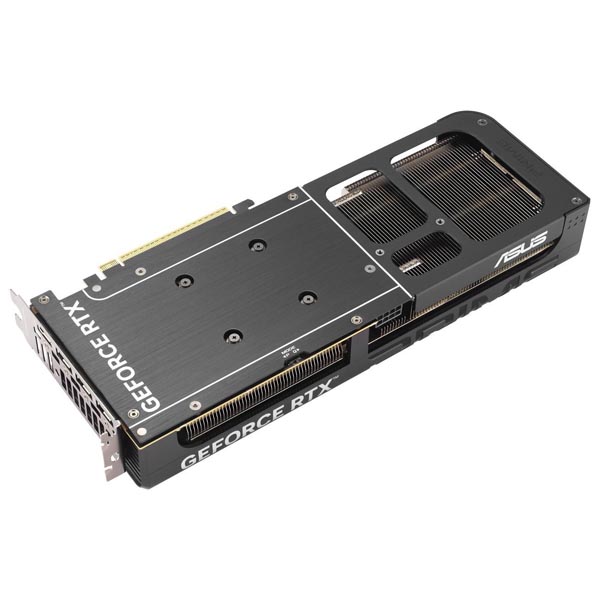

ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card
- 16GB 128-Bit GDDR7
- 1 x HDMI 2.1b 3 x DisplayPort 2.1b
- 4608 Cores CUDA Cores
- PCI Express 5.0 x8
- DLSS 4.0
Original price was: ₹138,750.00.₹50,999.00Current price is: ₹50,999.00.
ASUS PRIME GeForce RTX 5060 Ti 16GB GDDR7 OC Edition Graphics Card
Feature
The SFF-Ready ASUS Prime GeForce RTX™ 5060 Ti OC Edition 16GB GDDR7 boasts three axial-tech fans for supreme cooling.
- AI Performance: 772 AI TOPS
- OC mode: 2647 MHz (OC mode)/ 2617 MHz (Default mode)
- Powered by the NVIDIA Blackwell architecture and DLSS 4
- SFF-Ready Enthusiast GeForce Card
- Axial-tech fans feature a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure
- 2.5-slot design allows for greater build compatibility while maintaining cooling performance
- Dual-ball fan bearings last up to twice as long as standard sleeve bearings
- 0dB technology lets you enjoy light gaming in relative silence
- Dual BIOS switch lets you toggle between Quiet and Performance BIOS profiles
- Protective Backplate is reinforced by a metal backplate for rigidity and protection.
- Auto-Extreme manufacturing process for precision and reliability
- GPU Tweak III software provides intuitive performance tweaking, advanced thermal control and system monitoring
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5060 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Cooling
2.5-slot Design
The Prime RTX 5060 Ti features a 2.5 slot design with a carefully arranged layout for the shroud, heatsink and heat pipes to let the three Axial-tech fans leverage chassis side-panel ventilation and deliver optimal thermal performance.
Axial-tech Upgrades
Three tried-and-true Axial-tech fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure for lower temperatures, less noise and higher performance.
0dB Technology
All three fans come to a standstill when GPU temperatures are below 50°C, letting you play less demanding games or perform light tasks in relative silence. Fans start up again when temperatures are over 55°C, establishing a speed curve that balances performance and acoustics for work or play.
Dual Ball Fan Bearings
Different bearing types have unique pros and cons. Dual-ball bearings excel at durability and can last up to twice as long as sleeve bearing designs.
Vented Backplate
Large backplate vents significantly enhance heat dissipation, helping to keep the GPU cooler during intense tasks. This additional airflow helps ensure optimal temperatures, boosting performance, longevity and stability by defending against overheating and thermal throttling.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Unmatched Reliability
Protective Backplate
The PCB is reinforced by a metal backplate that adds structural rigidity, helping to prevent flex and to protect components and trace pathways from damage.
Stainless Steel Bracket
The mounting bracket features grade 304 stainless steel, chosen for its strength and high resistance to corrosion.
Dual BIOS
Do you prioritize low core temps or low noise levels? Performance mode lets the fans spin up to keep the card running cool all the time, and Quiet mode keeps the same power target and top-end settings while offering a less aggressive fan curve for quieter operation at moderate temperatures.
Auto−Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass, ASUS Auto-Extreme technology reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
NVIDIA Blackwell Architecture
The Ultimate Platform for Gamers and Creators
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4
New Streaming Multiprocessors
Optimized for neural shaders
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry
Accelerate Your Creativity
NVIDIA Studio creator tools and technology
Enhance Any Video with AI
NVIDIA Broadcast and ninth-gen NVIDIA Encoder
Performance and Reliability
NVIDIA app with Game Ready and Studio Drivers and Studio Drivers
Full Ray Tracing with Neural Rendering
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
| Model | PRIME-RTX5060TI-O16G |
| Graphic Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| AI Performance | 772 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL®4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC mode: 2647MHz, Default mode: 2617MHz (Boost) |
| CUDA Core | 4608 |
| Memory Speed | 28 Gbps |
| Memory Interface | 128-bit |
| Resolution | Digital Max Resolution 7680 x 4320 |
| Interface | 1x Native HDMI 2.1b, 3x Native DisplayPort 2.1b |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink/ Crossfire Support | No |
| Accessories | Speedsetup Manual, ASUS Velcro Hook & Loop, Thank You Card |
| Software | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from support site) |
| Dimensions | 304 x 120 x 50mm |
| Recommended PSU | 550W |
| Power Connectors | 1 x 8-pin |
| Slot | 2.5 Slot |
| SFF Ready | Compatible |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Max GPU Boost Clock | |
| Memory Series | |
| Warranty |
