SKU: ATHENA M4M
users viewing this item right now
• Perforated Mesh Front Panel with Lighting Strip
• 3 Built-in 120mm NOTUS M1 Fans
• Front-Mounted ATX PSU Design
• Supports Dual 360mm Radiators
• Supports Connector-hidden Motherboards
• Fits Mini-ITX, and Micro-ATX motherboards
• Compatible with 395mm GPU
• Gen 2x2 Type-C Port Ready

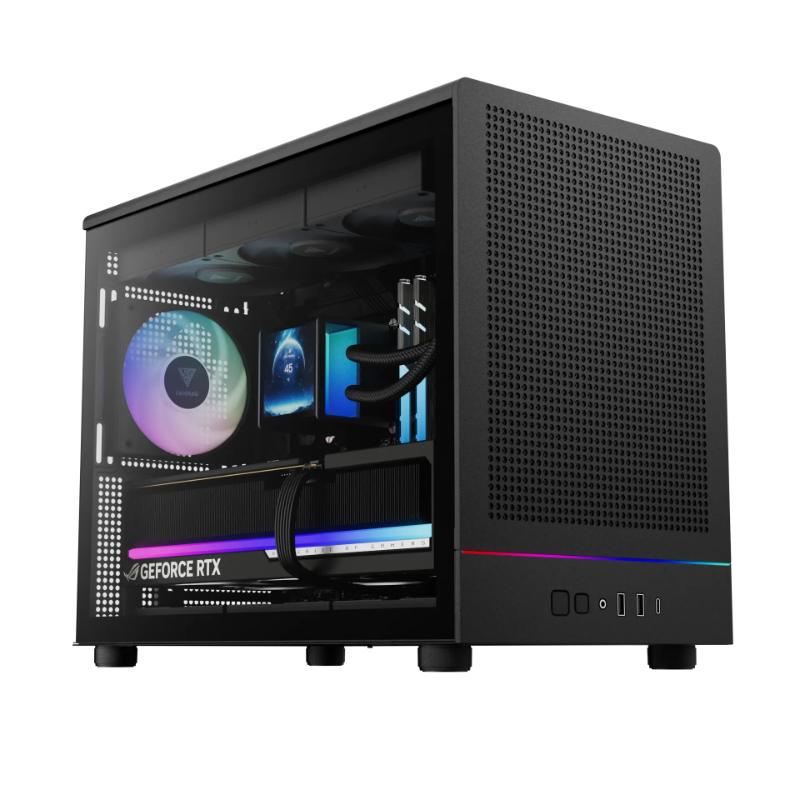

The ATHENA M4M is a compact micro-tower case engineered for performance and style, featuring a fully perforated mesh front panel, a dynamic RGB lighting strip, and three built-in 120mm NOTUS M1 fans for optimized airflow. It supports dual 360mm radiators, BTF motherboards, and GPUs up to 395mm, offering advanced compatibility and standout thermal performance in a space-efficient design, making it an ideal choice for high-performance compact builds.
The ATHENA M4M allows robust airflow intake and exhaust configurations with a mesh front panel and perforated vents built throughout the case.

Featuring three built-in silent NOTUS M1 fans, the case provides exceptional lighting and finely tuned airflow with minimal noise. The included 8-port PWM ARGB fan hub allows for easy management and synchronization, ensuring a cohesive lighting setup that perfectly complements the high-performance, quiet operation of the fans.

The PSU is strategically positioned at the front side of the case, with connector ports oriented downward for easier cable management. A PSU shroud enhances the clean aesthetic, and an extension cable is included to facilitate rear power connection.

This case supports connector-hidden motherboard (BTF motherboard), enabling cables to plug in from the back for a cleaner front appearance and enhanced PC setups.

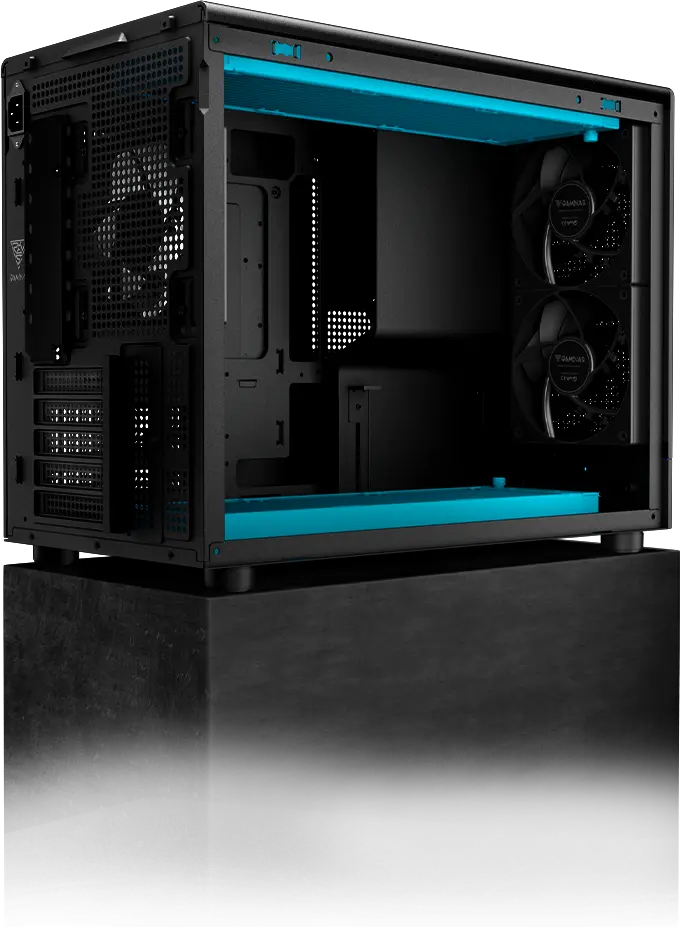

The ATHENA M4M provides superior cooling performance as it can support 360mm radiators on the top and the bottom simultaneously.
The I/O features one USB 3.2 Gen 2x2 Type-C port for high transfer speeds up to 20 Gbps, two USB 3.0 port, fan LED controls, and additional audio connectivity.

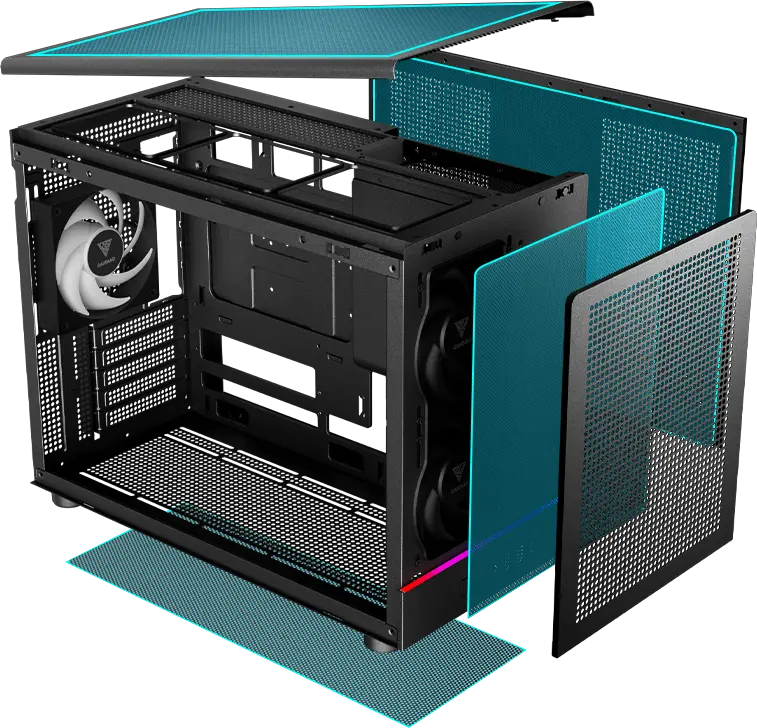

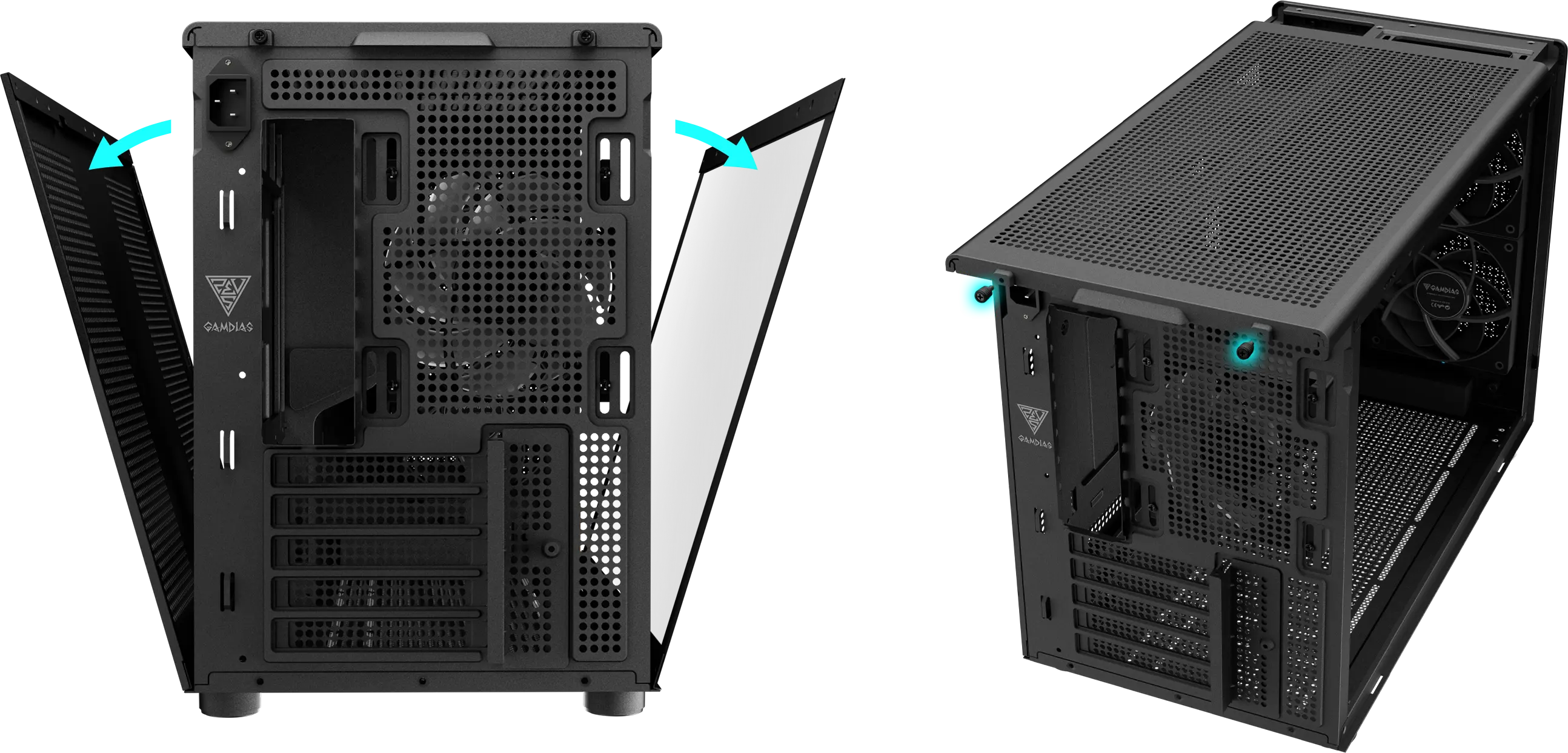

The case features a modular design that allows nearly every panel to be easily detached for better accessibility. The side panels are secured with a simple clasp mechanism, while the top panel is secured with thumb screws.

The ATHENA M4M can accommodate up to 9 fans and offers flexible options for the installation of radiators at the front, top, bottom and rear.

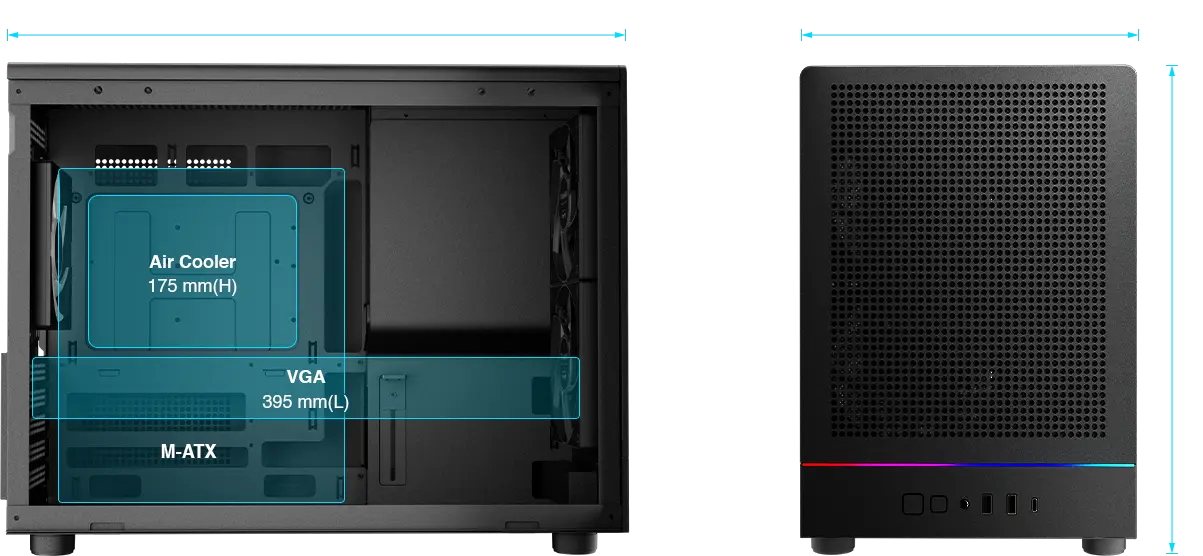

Designed with a compact form factor, the case offers the option to house up to m-ATX motherboards and VGA cards up to 395mm.

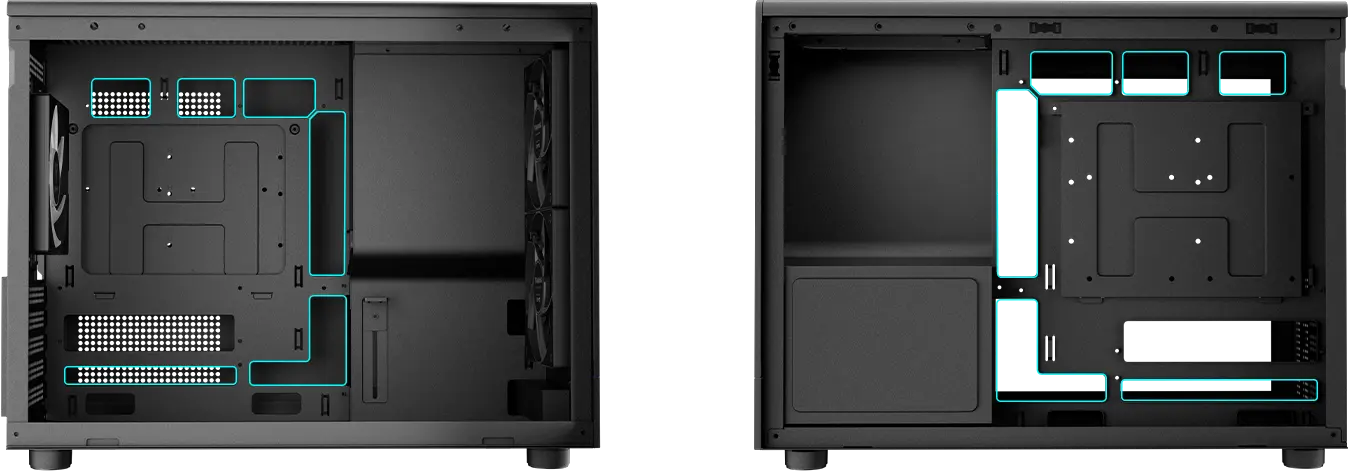

The interior configuration has ample room for cable management optimization and supports PSU lengths up to 150mm.

Equipped with dust filters on the top and side, the case effectively protects against dust while maintaining ventilation.
| Category | Specification |
|---|---|
| Model | ATHENA M4M |
| Case Type | Micro Tower |
| Motherboard Support | Mini-ITX, Micro-ATX |
| Case Color | Black |
| Material | SPCC, ABS, Tempered Glass |
| Side Panel | Left (Tempered Glass Window) |
| Expansion Slots | 5 |
| RGB Sync | 5V 3-Pin Addressable Header |
| Radiator Support | Top: 360 mm / Front: 240 mm / Bottom: 360 mm |
| Fan Support | Top: 3 × 120 mm / Front: 2 × 120 mm / Bottom: 3 × 120 mm / Rear: 1 × 120 mm |
| Pre-installed Fans | Front: 2 × 120 mm BK PWM Fans / Rear: 1 × 120 mm ARGB PWM Fan |

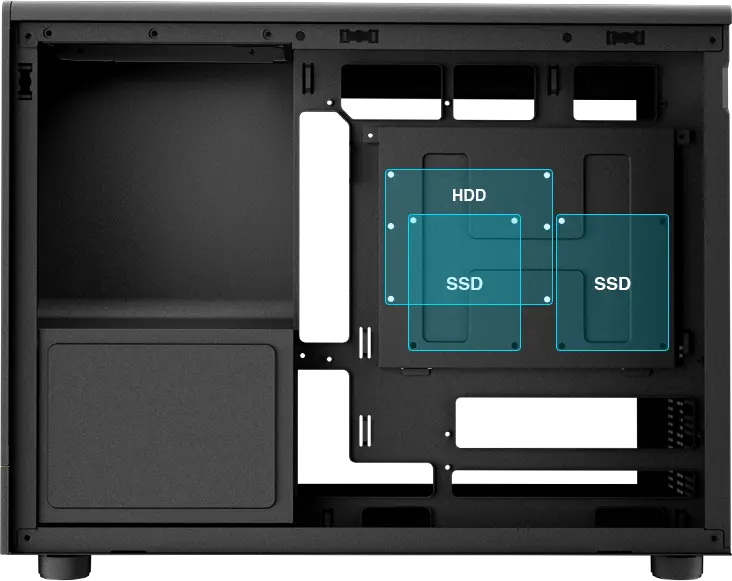

| Drive Bays | 1 × 3.5" + 1 × 2.5" or 2 × 2.5" |
| I/O Ports | USB 3.0 ×2, Type-C ×1, HD Audio ×1, LED Control ×1 |
| CPU Cooler Clearance | 175 mm |
| GPU Clearance | 395 mm |
| PSU Clearance | 150 mm |
| Dimensions (L × W × H) | 446 × 235 × 347 mm |
| Fan Hub | 8 Ports Hub (4 ports used) |
| Note | Some PSUs may have compatibility issues depending on AC inlet orientation; recommended to use GAMDIAS PSU |
| Downloads | User Manual |
