SKU: TD300-KGNN-S00
users viewing this item right now



We're all about the things that make building a PC such a rewarding experience. The sense of achievement. The joy of making and creating something uniquely yours in form and function and, of course, the thrill of bringing your creation to life without melting your components.

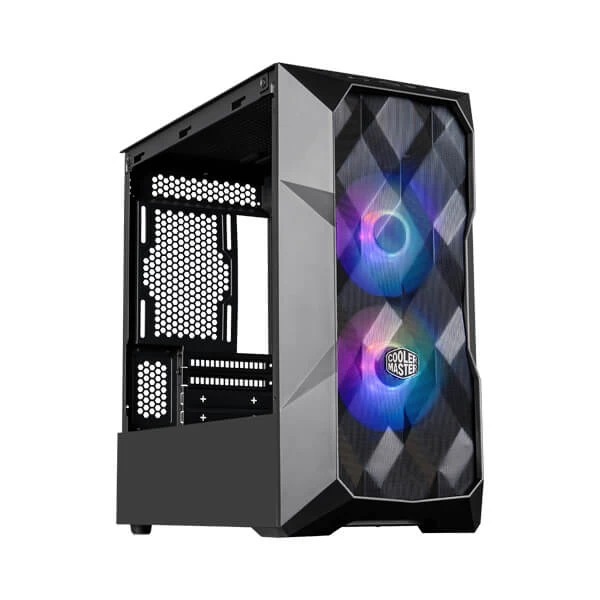

Cooler Master TD300 Mesh brings together modern presentation and performance with its three dimensional artistic mesh front panel. The polygonal diamond-cut FineMesh facade provides high airflow, dust filtration, while emphasizing the illumination of two included SickleFlow PWM ARGB fans, cast various glowing effects, shifting based on the viewing angle.
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|
Polygonal MeshCrafted with FineMesh technology, the polygonal mesh showcases a dynamic three-dimensional contour, enabling optimal airflow and superior dust filtration. | Sickleflow ARGB FansThe pre-installed Dual Sickleflow fans ensure ample airflow, optimal temperatures, and captivating aesthetics, enhancing your gaming experience | Addressable RGB FansAddressable RGB 3-Pin fans with an updated frosted blade design, purposefully crafted to amplify light dispersion and create a mesmerizingly vibrant and luminescent effect. | Versatile CoolingEnjoy high compatibility for liquid-cooled systems with support for up to six 120 fans and the ability to accommodate a 280mm radiators. |
![]() | ![]() | ![]() | ![]() |
|---|---|---|---|
Components ClearanceThis case provides support for CPU coolers with a maximum height of 166mm, accommodates GPU up to 344mm in length, and allows for PSU lengths of up to *325mm. | Removable Top PanelFor enhanced access during the assembly of cooling solutions, the top panel can be easily and completely removed, allowing for convenient handling of components. | ARGB/PWM HubSimplify cable management with the included HUB, 5 ARGB and 4 PWM ports. This convenient allows you to control fans with a single connector for power and PWM. | Tempered Glass PanelThe tempered glass side panel elegantly showcases the hardware, custom-loop cooling, and the pure pride of the builder, adding a touch of sophistication to the overall aesthetic. |
| Specification | |
|---|---|
| Model | TD300-KGNN-S00 |
| AVAILABLE COLOR | Black |
| MATERIALS | Steel, Mesh, Plastic |
| Materials – Side Panel | Tempered Glass |
| DIMENSIONS (L X W X H) | 366.5 x 210 x 410mm (Body Size), 433 x 210 x 420.5mm (incl. Protrusions) |
| Volume | 38.24L (incl. Protrusions) |
| MOTHERBOARD SUPPORT | Mini ITX, Micro ATX |
| EXPANSION SLOTS | 4 |
| DRIVE BAYS | 5.25″ Drive Bays = N/A
2.5″ / 3.5″ Drive Bays (combo) = 2 2.5″ Drive Bays = 2 |
| I/O PANEL | 2x USB 3.2 Gen 1 (formerly USB 3.0), 1x 3.5mm Audio Jack, 1x 3.5mm Mic Jack, 1x ARGB/PWM Hub |
| PRE-INSTALLED FANS | PRE-INSTALLED FANS – TOP = N/A
PRE-INSTALLED FANS – FRONT = 2x 120mm Sickle flow PWM ARGB Fans PRE-INSTALLED FANS – REAR = N/A Pre-installed Fans – Bottom = N/A |
| FAN SUPPORT | FAN SUPPORT – TOP = 2 x 120mm / 2 x 140mm
FAN SUPPORT – FRONT = 3 x 120mm* / 2 x 140mm, *can only mount behind the front plate FAN SUPPORT – REAR = 1x 120mm |
| RADIATOR SUPPORT | RADIATOR SUPPORT – TOP = 120mm, 140mm, 240mm, 280mm
RADIATOR SUPPORT – FRONT = 120mm, 140mm, 240mm, 280mm RADIATOR SUPPORT – REAR = 120mm |
| CLEARANCE | CLEARANCE – CPU COOLER = 166mm”
CLEARANCE – PSU = 325mm (w/o front radiator & drive cage), 140mm (drive cage in backmost position) CLEARANCE – GFX = 344mm |
| DUST FILTERS | Front, Top, Bottom |
| POWER SUPPLY SUPPORT | Bottom Mount, ATX |
| SERIES | MasterBox Series |
| SIZE | Mini Tower |
| Warranty | 2 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
No reviews yet for this product.
No questions have been answered yet.
