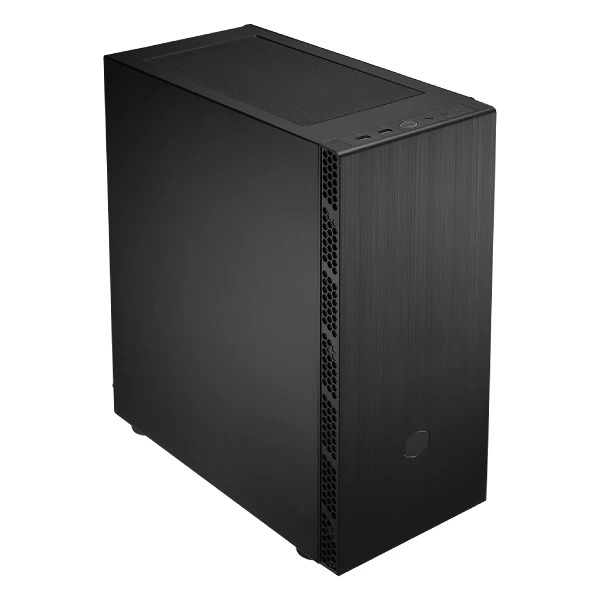

Cooler Master MasterBox MB600L V2 Cabinet (Black)
- Brushed Front Panel
- Hexagon Gleam
- Mesh Intakes
- With/Without ODD Support
- Versatile Cooling Options
- Breathable Power Supply Shroud
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹4,899.00 ₹3,709.00
- Hexagon Gleam – If an optional, illuminated fan is installed, the Cooler Master hexagon logo will capture light from the fan and emit a glow on the front panel.
- Mesh Intakes – Large, mesh intakes span each side of the front panel to provide additional airflow to system.
- Versatile Cooling Options – Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
- Breathable Power Supply Shroud – The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
- Removable HDD Cage – The modular frame allows builders to remove the drive cage completely, providing a greater freedom in building and increased compatibility for long power supplies.
PALETTE & BRUSH
Each element of the MasterBox MB600L was created from an elegant palette. With a brushed finish, subtle hue, and the minimalistic Cooler Master hexagon, this ATX PC case decorates the gaming setup and workspace while also being able to house the latest hardware.
BRUSHED FRONT PANEL
A brushed finish spans the entire front panel for an elegant and minimalistic design.
HEXAGON GLEAM
The Cooler Master hexagon on the front panel relays light from optional, illuminated fans. If an optional RGB or ARGB fan is installed behind the front panel, the hexagon will capture light from the fan and emit a glow on the front panel.
MESH INTAKES
Large, mesh intakes span each side of the front panel to provide additional airflow to system.
WITH/WITHOUT ODD SUPPORT
Depending on preference, an ODD version of the chassis is available. If an ODD is not preferred, a cleaner appearance and more cooling options on the top and front panels are supported. The ODD version of the MB600L is slightly deeper in comparison to its non-ODD counterpart.
VERSATILE COOLING OPTIONS
Support for up to six fans and front, top, and rear radiator support ensure that performance is not compromised.
BREATHABLE POWER SUPPLY SHROUD
The PSU cover is ventilated on top of the power supply location, this allows actively cooled units to be installed either with the fan facing the top or bottom, also with the possibility of installing passively cooled power supplies.
ROOM FOR UPGRADES
Support for up to a 400mm graphics card, a 161mm CPU cooler, and multiple fan/radiator locations provide room for upgrades to stay ahead of the game.
*clearances vary per model
REMOVABLE HDD CAGE
The modular frame allows builders to remove the drive cage completely, providing a greater freedom in building and increased compatibility for long power supplies.
MODEL | MB600L2-KNNN-S00 |
SERIES | MasterBox Series |
SIZE | Mid Tower |
AVAILABLE COLOR(S) | Black |
MATERIALS | Steel, Plastic |
DIMENSIONS (L X W X H) | 405.5x204x455.3mm (incl. Protrusions) |
VOLUME (EXLC. PROTRUSIONS) | 37.15L |
MOTHERBOARD SUPPORT | Mini ITX, Micro ATX, ATX |
EXPANSION SLOTS | 7 |
5.25" DRIVE BAYS | 0 |
2.5" / 3.5" DRIVE BAYS (COMBO) | 2 |
2.5" DRIVE BAYS | 2 |
I/O PANEL | 2x USB 3.2 Gen 1 Type-A, 1x 3.5mm Headset Jack (Audio+Mic) |
PRE-INSTALLED FANS - TOP | N/A |
PRE-INSTALLED FANS - FRONT | N/A |
PRE-INSTALLED FANS - REAR | 1x 120mm |
FAN SUPPORT - TOP | 2x 120/140mm |
FAN SUPPORT - FRONT | 3x 120mm, 2x 140mm, 3x 120mm |
FAN SUPPORT - REAR | 1x 120mm |
RADIATOR SUPPORT - TOP | 120mm, 240mm, (RAM height limit 32mm; install RAM first, then install radiator) |
RADIATOR SUPPORT - FRONT | 120mm, 140mm, 240mm, 280mm, 360mm |
RADIATOR SUPPORT - REAR | 120mm |
CLEARANCE - CPU COOLER | 161mm |
CLEARANCE - PSU | 160mm (MB600L2-K*NN-S00), |
CLEARANCE - GFX | 350mm (w/o front fans & radiator) |
CABLE ROUTING | 18.5mm |
DUST FILTERS | Front, Top, Bottom |
POWER SUPPLY SUPPORT | Bottom mount, ATX |
WARRANTY | 2 Years |
NOTE | *** Features, Price, Specifications are subject to change without notice. |
Weight | 1 kg |
---|---|
Product Type | |
color | |
Brands | |
Case Form Factor | |
Motherboard Size | |
Radiator Size | |
Max Fan Support | |
Warranty | |
EAN / UPC Code |
