SKU: MCC-C700P-KG5N-S00
users viewing this item right now

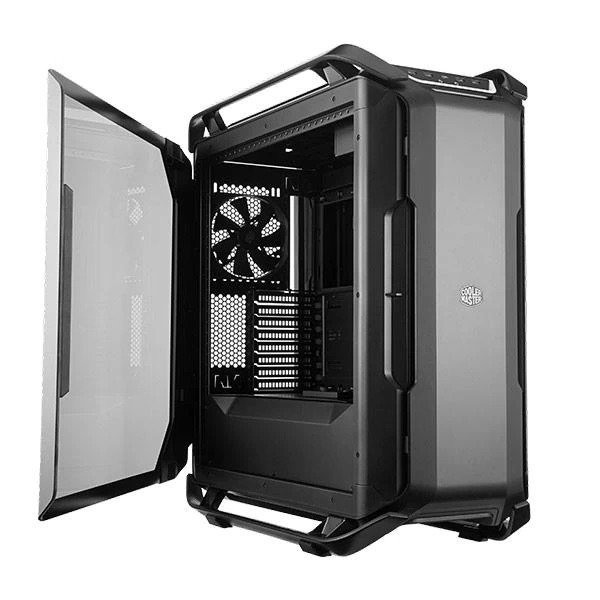

Advancements upon the original Cooler Master COSMOS C700P include the PSU Shroud, flat radiator brackets, fine mesh panels, cable cover system, and an extra rear panel—all housed in a matte black C700P.
A lightly-tinted tempered glass side panel with two curved edges offer a wide view of the system build.
The PSU Shroud advances in modularity with two independent parts while the cable cover system features 3 separate pieces, each with the capability of mounting storage or a pump for liquid cooling.
Flat radiator brackets offer an easier maintenance, mounting, and removal process for liquid cooling with more clearance for push-pull configurations.
To support exotic layouts with motherboards or graphics card oriented vertically, an alternate panel with rubber grommets is included to allow a pass-through for external cables.
The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis.
The 3 included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir.
The advanced I/O panel features a USB 3.1 (Gen 2) Type-C port, four additional USB 3.0 ports, a fan speed control button and an RGB control button.
| Top: | 120 / 140 / 240 / 280 / 360* / 420mm* *Remove ODD, maximum thickness clearance 70mm |
| Front: | 120 / 140 / 240 / 280 / 360 / 420mm* *remove ODD |
| Rear: | 120 / 140mm |
| Bottom: | 120 / 140 / 240mm |
| Top: | 120 / 140mm x 3 |
| Front: | 120 / 140mm x 3 |
| Rear: | 120 / 140mm x 1 |
| Bottom: | 120 / 140mm x 2* *Requires bracket |
Mini-ITX Micro-ATX ATX E-ATX* *E-ATX up to 12" x 10.7" may impact cable management options.
5.25” ODD X 1 3.5” / 2.5” COMBO X 4 2.5” SSD X 4 Upgradeable to 12x 3.5“ HDD
| Product Name | COSMOS C700P BLACK EDITION | |
| Model Number | MCC-C700P-KG5N-S00 | |
| Available Color | Black | |
| Materials | Outlook | Aluminum, Steel, Plastic |
| Body | Steel | |
| Side Panel | Curved Tempered Glass, Steel | |
| Dimensions (LxWxH) | 639 x 306 x 651mm | |
| Weight | 22.2 kg | |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX, E-ATX (Support 12" x 11") | |
| Expansion Slots | 8 | |
| Drive Bays | 5.25" | 1 |
| 2.5"/3.5" HDD | 4 | |
| 2.5" SSD | 4 | |
| I/O Port | USB 3.1 Gen 2 Type C x 1, USB 3.0 x 4, Fan Speed & RGB control buttons, Audio In / Out (supports HD Audio) | |
| Pre-installed Fans | Front | 140mm fan x 2, 1200RPM |
| Rear | 140mm fan x 1, 1200RPM | |
| Fan Support | Top | 120/140mm fan x 3 |
| Bottom* | 120/140mm fan x 2 | |
| Front | 120/140mm fan x 3 | |
| Rear | 120/140mm fan x 1 | |
| Liquid Cooling Support | Top | 120mm, 140mm, 240mm, 280mm, 360mm (requires removal of ODD cage) |
| Bottom* | 120mm, 140mm, 240mm | |
| Front | 120mm, 140mm 240mm, 280mm, 360mm, 420mm (requires removal of ODD cage) | |
| Rear | 120mm, 140mm | |
| Clearances | CPU Cooler | 198mm |
| GPU | 490mm (without 3.5" HDD cage) 320mm (with 3.5" HDD cage) | |
| Power Supply Support | Bottom Mount, ATX PS2 | |
| Lighting Support | RGB Control Board x 1 (Cycle, Static, M/B modes) to embedded lightings One RGB connection available | |
| Note | * Required additional cooling bracket | |
| Warranty | 2 Years | |
| Note | Features, Price and Specifications are subject to change without notice. Images used for representation purpose only | |
