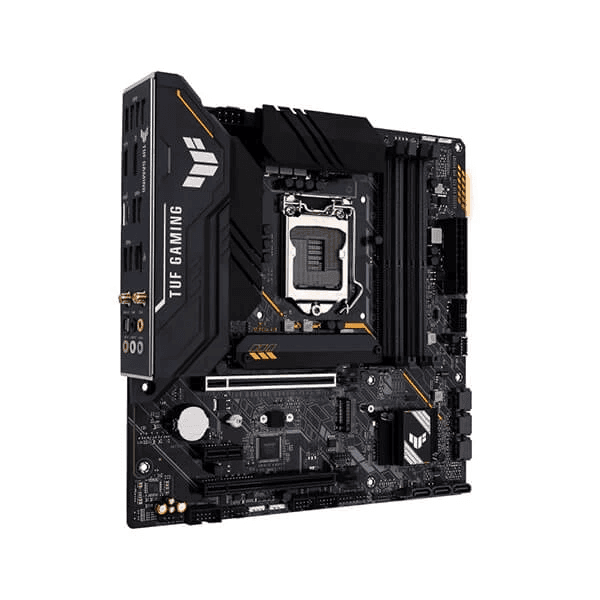

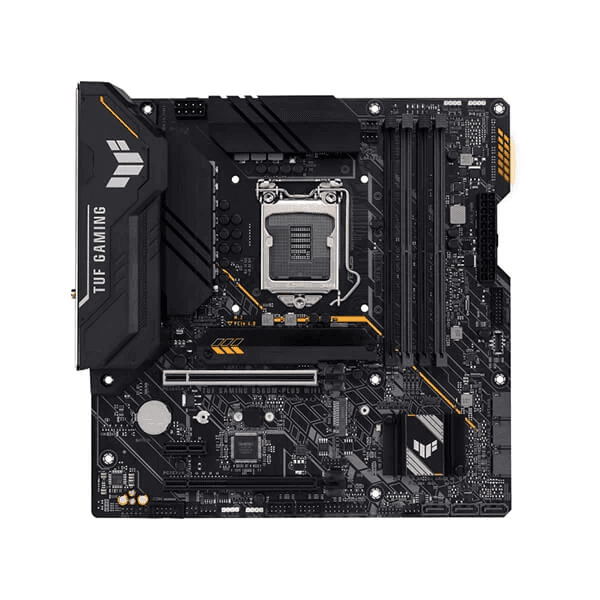

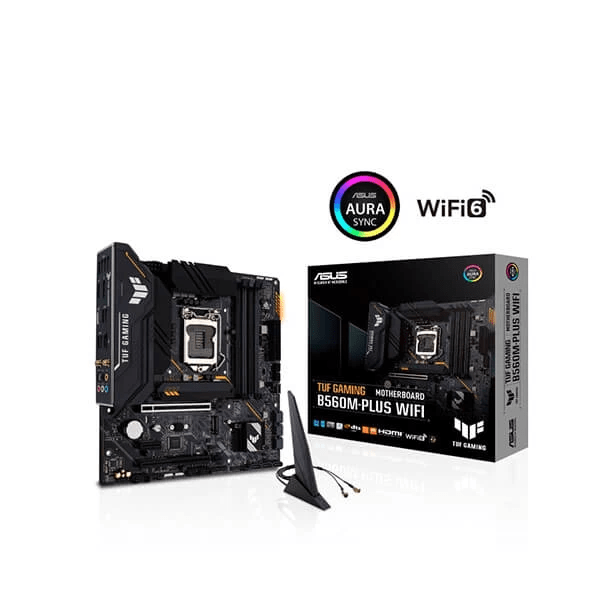

Asus TUF Gaming B560M-Plus WIFI Intel Motherboard
Asus TUF Gaming B560M-Plus WIFI Intel Motherboard
₹14,999.00
- Intel® LGA 1200 socket: B560M-Plus Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Next-gen connectivity: PCIe 4.0, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 support
Add to cart
Buy Now
Asus B560 M-ATX Form Factor Motherboard, The TUF Gaming B560M Plus WiFi Features Unlocked Memory Support, All new 11th Gen Rocket Lake CPU Support, DDR4 5000 Mhz and Upto 128GB Memory Support, Includes Intel 2,5 Gigabit Lan, 8+1 Power Phase VRM and Intel
Features
Intel® B560 (LGA 1200) mATX motherboard with PCIe 4.0, two M.2 slots, 8+1 Power stages, Realtek 2.5Gb Ethernet, DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen 2, USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, Aura Sync RGB Lighting, Addressable RGB
- Intel® LGA 1200 socket: B560M-Plus Ready for 11th Gen Intel® Core™ processors
- Enhanced power solution: 8+1 power stages, 6-layer PCB, ProCool socket, and durable capacitors for stable power delivery
- Comprehensive cooling: VRM heatsink, flexible M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
- Next-gen connectivity: PCIe 4.0, Realtek 2.5Gb Ethernet, Intel® Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C® and Thunderbolt™ 4 support
- Made for online gaming: Intel Wi-Fi 6, Realtek 2.5 Gb Ethernet, TUF LANGuard, and Turbo LAN technology
- Two-way AI Noise-Cancelation: B560M-Plus Reduce background noise from the microphone and audio output for crystal-clear communication in games or video conferences
- ASUS OptiMem II: B560M-Plus Careful routing of traces and vias to preserve signal integrity for improved memory stability.
- MyASUS: Offer a variety of support features such as helping to contact the customer service center, optimize networking performance and collaborate with your mobile phone through Link to MyASUS.
Specification
| CPU | Supports Intel® 14 nm CPU
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel® B560 Chipset |
| Memory | DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/ 4266(OC)/4000(OC)/3733(OC)/3600(OC)/ 3466(OC)/3333(OC)/3200/2933/2800/2666/ 2400/2133 MHz Non-ECC, Un-buffered Memory*Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II * 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. * 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Graphics | * Graphics specifications may vary between CPU types.
** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates. *** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of [email protected], others will only support HDMI™ 1.4 with max. resolution of [email protected] .Please refer to www.intel.com for any updates. |
| Expansion Slots | Intel® 11th &10th Gen Processors
1 x PCIe 4.0/3.0 x16 slot(s)* – Intel® 11th Gen processors support PCIe 4.0 x16 – Intel®10th Gen processors support PCIe 3.0 x16 Intel® B560 Chipset 1 x PCIe 3.0 x16 slot (supports x4 mode) 1 x PCIe 3.0 x1 slots |
| Storage | Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports Intel®11th Gen ProcessorsM.2_1 slot (Key M), type 2242/2260/2280 – Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs Intel® B560 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)* 6 x SATA 6Gb/s ports To enable Intel® Optane™ Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel® Rapid Storage Technology. * M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled. |
| Ethernet | 1 x Intel® I225-V 2.5Gb Ethernet ASUS LANGuard |
| Wireless & Bluetooth | Intel® Wi-Fi 6 2×2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency band Bluetooth v5.0 or later |
| USB | Rear USB:Total 9 ports 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)3 x USB 3.2 Gen 1 port(s) (2 x Type-A+ 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x USB 3.2 Gen Gen 1 connector(s) (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports |
| Audio | – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
– Supports up to 24-Bit/192 kHz playback Audio Features – Audio Shielding – Rear optical S/PDIF out port – Premium Japanese audio capacitors – Dedicated audio PCB layers |
| Back Panel I/O Ports | 2 x USB 3.2 Gen 2 port(s) (2 x Type-A)
3 x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C®) 4 x USB 2.0 port(s) (4 x Type-A) 1 x DisplayPort 1 x HDMI™ port 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port |
| Intrernal I/O Connectors | Fan and Cooling related1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s) 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C®) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header(s) 2 x AURA RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt™ header |
| Special Features | ASUS TUF PROTECTION
– Digital power design with DrMOS – Enhanced DRAM Overcurrent Protection – ESD Guards – TUF LANGuard – Overvoltage Protection – SafeSlot Core+ – Stainless-Steel Back I/O ASUS Q-Design – M.2 Q-Latch – Q-DIMM – Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) – Q-Slot ASUS Thermal Solution – Flexible M.2 heatsink – VRM heatsink design ASUS EZ DIY – ProCool – Pre-mounted I/O shield AURA Sync – AURA RGB header(s) – Addressable Gen 2 RGB header(s) |
| Software Features | ASUS Exclusive Software
Armoury Crate – AURA Creator – AURA Sync – Two-Way AI Noise Cancelation AI Suite 3 – Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ – EZ update TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools DTS Custom for GAMING Headsets Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY – ASUS CrashFree BIOS 3 – ASUS EZ Flash 3 – ASUS UEFI BIOS EZ Mode |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables
2 x SATA 6Gb/s cables Miscellaneous 1 x M.2 Rubber Package(s) 1 x M.2 SSD screw package(s) 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual |
| Operating System | Windows 10 64bit |
| Form Factor | microATX 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
