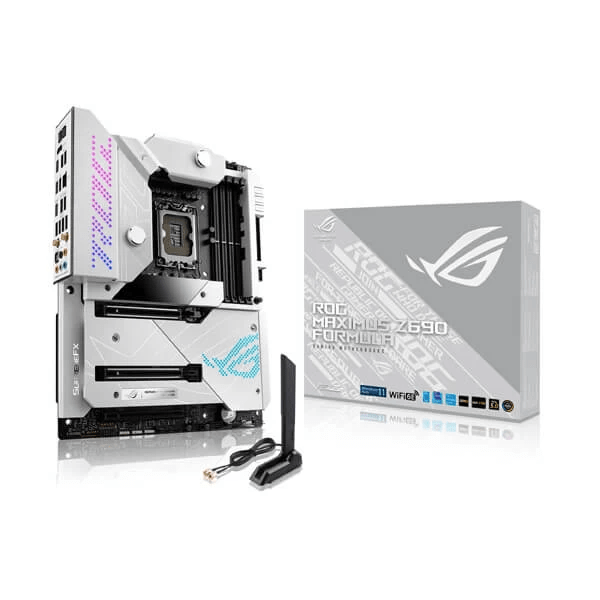

Asus ROG Maximus Z690 Formula (Wi-Fi) Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors

Name: Buy Asus ROG Maximus Z690 Formula (Wi-Fi) Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors - Computech Store
Brand: Asus
SKU: ROG-MAXIMUS-Z690-FORMULA
Price: 65400.00 INR
Availability: OutOfStock

Brands

Brand:

Asus

Z690 Formula Socket LGA 1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration
Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone

... people are viewing this right now

Guaranteed Safe Checkout

₹65,400.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

Asus ROG Maximus Z690 Formula (Wi-Fi) Intel Motherboard

Features:

Intel^® Z690 ATX motherboard with 20+1 power stages, DDR5, Five M.2, USB 3.2 Gen 2×2 front-panel connector, Dual Thunderbolt™ 4, PCIe^® 5.0, Onboard WiFi 6E, 10 Gb Ethernet and Aura Sync RGB lighting

Z690 Formula Socket LGA 1700 for 12th Gen Intel^® Core™, Pentium^® Gold and Celeron^® processors
Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation for easy configuration
Robust Power Solution: 20+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors
Optimized Thermal Design: Enlarged VRM heatsinks with EK CrossChill III solution, high-conductivity thermal pads, triple M.2 heatsinks and two M.2 backplates, and ROG Water-Cooling Zone
High-Performance Networking: Onboard WiFi 6E, Marvell^® AQtion 10 Gb Ethernet, and ASUS LANGaurd
Fastest Connectivity: PCIe^® 5.0, dual Gen 4 M.2 onboard, ROG Hyper M.2 card with Gen 5 M.2 support, USB 3.2 Gen 2×2 front-panel connector and dual Thunderbolt™ 4 USB Type-C^® ports
Industry-Leading Audio: Z690 Formula ROG SupremeFX ALC4082 with ESS^® ES9018Q2C DAC for pinpoint positioning and dynamics
Unmatched Personalization: 2-inch LiveDash OLED, ASUS-exclusive Aura Sync RGB lighting, including one RGB header and three addressable Gen 2 headers
DIY-Friendly Design: Pre-mounted I/O shield, PCIe Slot Q-Release, Q-Latch, BIOS  FlashBack™, Q-Code, FlexKey, Q-Connector, SafeSlot, ROG Hyper M.2 card, and ROG graphics card holder
Renowned Software: Bundled 1year AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard with integrated MemTest86

CPU	Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset	Intel® Z690 Chipset
Memory	4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) ** Supported memory types, data rate (speed), and number of DRAM modules may vary depending on the CPU and memory configuration, for more information refer to www.asus.com for the memory support list.
Graphics	1 x HDMI® port 2 x Intel® Thunderbolt™ 4 ports (USB Type-C®) support DisplayPort 1.4 and Thunderbolt™ video outputs* * Graphics specifications may vary between CPU types. Support 4K@60Hz as specified in HDMI 2.1. * VGA resolution support depends on processors' or graphic cards' resolution.
Expansion Slots	Intel® 12th Gen Processors* 2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s)) Intel® Z690 Chipset* 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)*** * Please check PCIe bifurcation table in manual Chapter 1 When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. * Supports Intel® Optane Memory H Series on PCH-attached PCIe slot
Storage	Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 Intel® 12th Gen processors support PCIe 4.0 x4 mode. Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110* Intel® 12th Gen processors support PCIe 5.0 x4 mode Intel® Z690 Chipset M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)* Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode) 6 x SATA 6Gb/s ports*** * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots. * When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. ** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. *** SATA6G_E12 cannot support RAID 0/1/5/10.
Ethernet	1 x Marvell® 10Gb Ethernet ASUS LANGuard
Wireless & Bluetooth	Intel® Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later.
USB	Rear USB: Total 12 ports 2 x Thunderbolt™ 4 port(s) (2 x USB Type-C®) 7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) Front USB: Total 9 ports 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio	ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 - Impedance sense for front and rear headphone outputs - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input - Supports up to 32-Bit/384 kHz playback Audio Features - SupremeFX Shielding Technology - ESS® SABRE9018Q2C DAC/AMP - Gold-plated audio jacks - Rear optical S/PDIF out port - Premium audio capacitors
Back Panel I/O Ports	2 x Thunderbolt™ 4 USB Type-C® port(s) 7 x USB 3.2 Gen 2 port(s) (6 x Type-A + 1 x USB Type-C®) 3 x USB 2.0 port(s) (3 x Type-A) 1 x HDMI® port 1 x Wi-Fi Module 1 x Marvell® AQtion 10Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button 1 x Clear CMOS button
Intrernal I/O Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) 1 x 2-pin Water In header 1 x 2-pin Water Out header 1 x 3-pin Water Flow header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 6-pin PCIe Graphics Card connector Storage related 3 x M.2 slots (Key M) 6 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x FlexKey button 1 x 12-1 pin Front Panel Audio header (AAFP) 1 x ReTry button 1 x SPI TPM header (14-1pin) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
Special Features	Extreme OC Kit FlexKey button ReTry button Start button Extreme Engine Digi+ 10K Black Metallic Capacitors MicroFine Alloy Choke ASUS Q-Design M.2 Q-Latch PCIe Slot Q-Release Q-Code Q-Connector Q-DIMM Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) Q-Slot ASUS Thermal Solution CrossChill EK III M.2 heatsink backplate M.2 heatsinks Steel backplate ASUS EZ DIY BIOS FlashBack™ button Clear CMOS button CPU Socket lever protector ProCool II Pre-mounted I/O shield SafeSlot SafeDIMM AURA Sync AURA RGB header(s) Addressable Gen 2 header(s) OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support Support: up to 60W charging* Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE 1 x 12-1 pin Front Panel Audio header (AAFP) 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list.
Software Features	ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS® Sound Unbound - BullGuard Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation AI Suite 3 - Easy Optimization with AI Overclocking TPU EPU DIGI+ Power Control Turbo app MyAsus WinRAR WEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
BIOS	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	WOL by PME, PXE
Accessories	Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 2 x ROG weave SATA 6G cables 4 x SATA 6Gb/s cables ROG Hyper M.2 Card 1 x ROG Hyper M.2 Card 2 x M.2 screw package for ROG Hyper M.2 Card Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Rubber Package(s) 1 x Q-connector 1 x M.2 Q-Latch package(s) 2 x M.2 Q-Latch packages for M.2 backplate 1 x ROG key chain 1 x ROG stickers 1 x ROG thank you card 1 x ROG Graphic card holder Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide
Form Factor	ATX 30.5cm x 24.4cm
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Product Type	Gaming
Brands	Asus
Socket	LGA 1700
Chipset	Z690
Motherboard Size	ATX
Memory Series	DDR5
Platform	Intel
Motherboard Series	Asus ROG
EAN / UPC Code	4711081483199
