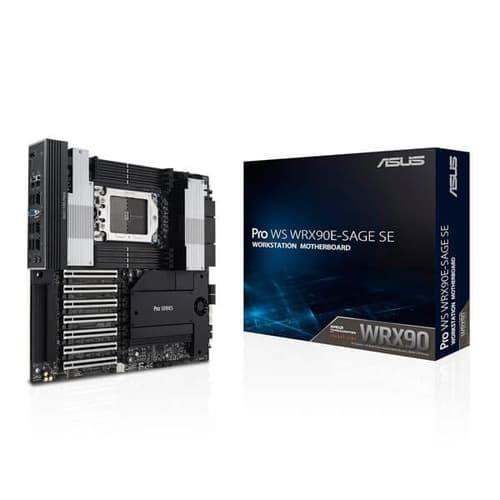

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard

ASUS Pro WS WRX90E-SAGE SE Workstation Motherboard

Feature

• AMD sTR5 socket supports up to 96-core CPUs: Ready for AMD Ryzen Threadripper PRO 7000 WX-Series Processors.
• Ultrafast connectivity: Seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support.
• CPU and memory overclocking: Support for up to 2 TB ECC R-DIMM DDR5 memory modules (1DPC).
• Robust power and thermal design: 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad.
• PCIe Q-release Slim: Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch.
• Server-grade IPMI remote management and onboard BMC: Hardware and software-level with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management.
• Trusted stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation.

A WORKSTATION WONDERLAND The ASUS Pro WS WRX90E-SAGE SE motherboard offers elite speed, compatibility and stability tailored to content creation, software development, machine learning and more. Thirty-two power stages fuel AMD Ryzen Threadripper PRO 7000 WX-Series processors with up to 96 cores, while supporting up to 2 TB of R-DIMM DDR5 modules, delivering the performance potential that professionals need for cutting-edge applications. With onboard PCIe power connectors offering additional support for multiple graphics cards, active cooling on the VRM heatsinks, USB 40Gbps ports, SlimSAS and onboard BMC, the Pro WS WRX90E-SAGE SE comes prepared for a wide array of scenarios and industries. Multi-GPU Support The Pro WS WRX90E-SAGE SE motherboard features seven PCIe 5.0 x16 slots that provide flexible system configurability and expandability. With high-powered graphics cards, it can bring enhanced performance in modelling, simulation and rendering applications. ULTRAFAST CONNECTIVITY The Pro WS WRX90E-SAGE SE features an Ethernet port to provide fast data transfers simultaneously for 1 Gbps internet streaming to the onboard baseboard management controller. Ultrafast Networking The USB Type-C port in the rear offers a DisplayPort alt mode with support for up to 8K resolution at 60 Hz, providing great compatibility for Type-C monitors and portable displays which are getting popular among creators. M.2 PCIe 5.0 slots The Pro WS WRX90E-SAGE SE includes up to four onboard M.2 slots. Users working with massive files can RAID together multiple NVMe devices for massive I/O bandwidth and speedy data transfers. SlimSAS slot The Pro WS WRX90E-SAGE SE motherboard also features two SlimSAS ports for connecting industrial SSD drives, servers and networking equipment. Active VRM Cooling Solutions The extruded aluminum heatsinks on the MOSFETs and chokes contain active cooling to greatly enhance thermal efficiency. Onboard PCIe Power Connectors Two additional 8-pin PCIe cable connectors built into the motherboard can ensure power output stability when multiple graphic cards need to be installed. ECC R-DIMM Memory Support The Pro WS WRX90E-SAGE SE motherboard boasts a robust design featuring eight R-DIMM DDR5 memory module slots with ECC support, to improve the prevention of system crashes and data corruption, thereby ensuring that a workstation remains reliable and responsive for professional demands.  ASUS Control Center Express The Pro WS WRX90E-SAGE SE comes with ASUS Control Center Express, real-time IT monitoring and management software designed for business that improves productivity and enhances security and can help prevent unauthorized access and data leaks. M.2 Heatsinks with Active Fan An active fan provides an additional cooling method to M.2 slots. All four M.2 slots come with large heatsinks to keep NVMe storage at the optimal operating temperature for consistent performance and reliability. M.2 thermal pads on select slots go even further to ensure peak performance for next-gen drives. PCIe Q-release Slim The new design of Q-release Slim allows users to remove the graphics card by tilting the card in its slot. This design also keeps the original method of removing the graphics card by pushing down on the retention clip. SafeSlot & SafeDIMM PCIe 5.0 is 2x faster than PCIe 4.0, so ASUS adapted its SMT manufacturing process to ensure the highest data speeds for its SafeSlot design. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep an expansion card firmly installed. Meanwhile, strong ASUS SafeDIMM sheathes support and protect memory modules on ASUS Pro series workstation motherboards, empowering users to insert modules with speed, accuracy and confidence. Built for around-the-clock operation Optimized for 24/7 operation, the Pro WS WRX90E-SAGE SE WIFI motherboard is tested to work at up to 45°C and 80% humidity, ensuring it can handle diverse operating environments. Built for Firm Protection The back-plate on the back of the motherboard provides protection for adjacent electrical components and circuits.
