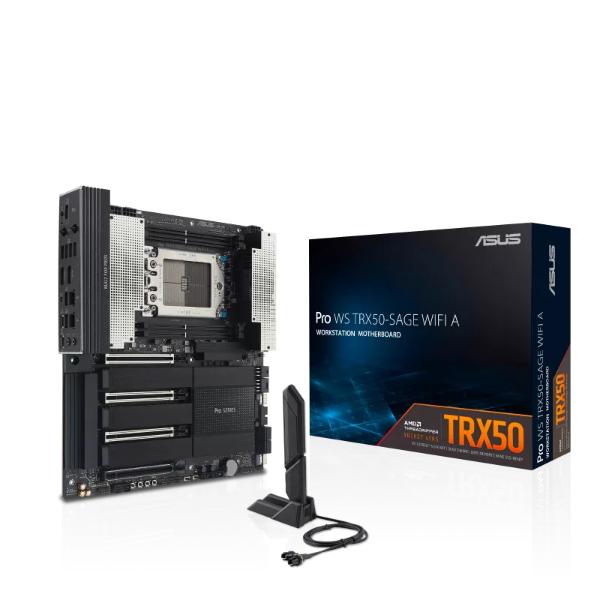

Asus Pro WS TRX50-SAGE WIFI A Motherboard

Name: Asus Pro WS TRX50-SAGE WIFI A Motherboard
Brand: Asus
SKU: PRO-WS-TRX50-SAGE-WIFI-A
Price: 999999.00 INR
Availability: OutOfStock

SKU: PRO-WS-TRX50-SAGE-WIFI-A

Asus

users viewing this item right now

₹999999

Availability

Sold Out

Ready for Advanced AI PC
AMD sTR5 Socket Supports up to 96-Core CPUs
CPU and Memory Overclocking
Robust Power & Thermal Design

Asus Pro WS TRX50-SAGE WIFI A Motherboard

Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD sTR5 Socket Supports up to 96-Core CPUs: Ready for AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series and Ryzen™ Threadripper™ 9000 & 7000 Series Processors
CPU and Memory Overclocking: Support for up to 1TB ECC R-DIMM DDR5 memory modules (1DPC)
Robust Power & Thermal Design: 20 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks, and M.2 thermal pad
Ultrafast Connectivity: Three PCIe® 5.0 x16 slots, one PCIe® 4.0 x16 slot, two USB4 (40Gbps) ports, 10 Gb & 2.5 Gb LAN ports, four M.2 slots, front USB 20Gbps Type-C® ports, and SlimSAS NVMe support
Server-Grade IPMI Remote Management: hardware and software support for ASUS IPMI expansion cards, plus ASUS Control Center Express software for real-time monitoring and management
Trusted Stability: Validated for extensive compatibility with the latest technologies, an expansive QVL list, and tested for 24/7 operation

Key Features

Category	Specification	Details
Model	Model Name	Pro WS TRX50-SAGE WIFI A
CPU	Socket	AMD Socket sTR5
	Supported Processors	Ryzen™ Threadripper™ PRO 9000 & 7000 WX-Series Ryzen™ Threadripper™ 9000 & 7000 Series
Chipset	Chipset	AMD TRX50
Memory	Memory Slots	4 × DIMM, DDR5 ECC Registered
	Architecture	4-Channel
Expansion Slots	PCIe Slots	3 × PCIe 5.0 x16 1 × PCIe 4.0 x16
Storage	M.2 Slots	4 × M.2 (Key M)
	SATA Ports	4 × SATA 6Gb/s
	SlimSAS Ports	2 × SlimSAS
	RAID Support	AMD RAIDXpert2 (PCIe & SATA RAID 0/1/5/10)
Ethernet	Network	1 × Marvell® AQtion 10GbE 1 × Intel® I226-LM 2.5GbE
Wireless	Wi-Fi	Wi-Fi 7 (Realtek® RTL8922AE) 2x2, 2.4/5/6GHz, 160MHz
	Bluetooth	Bluetooth® v5.4
USB	Rear USB	2 × USB4® (40Gbps Type-C) 6 × USB 10Gbps (Type-A) 1 × USB 2.0 (Type-A)
	Front USB	1 × USB 20Gbps (Type-C, up to 30W PD) 1 × USB 5Gbps header (2 ports) 2 × USB 2.0 headers (4 ports)
Audio	Audio Codec	Realtek ALC1220P Surround Sound HD Audio
	Features	120 dB SNR playback, 113 dB SNR recording, up to 32-bit/192 kHz
Back Panel I/O	Ports	2 × USB4® Type-C, 6 × USB 10Gbps Type-A, 1 × USB 2.0, 2 × DisplayPort IN, Wi-Fi Module, 10GbE, 2.5GbE, 2 × Audio Jacks, BIOS FlashBack™, Clear CMOS
Internal Connectors	Fan Headers	1 × CPU Fan, 1 × CPU OPT Fan, 1 × W_PUMP+, 4 × Chassis Fan, 2 × VRM Fan
	Power Connectors	1 × 24-pin + 1 × 4-to-24-pin Main Power 2 × 8-pin CPU Power 2 × 8-pin PCIe-to-CPU, 1 × 6-pin + 1 × 8-pin PCIe Power
	Other Headers	Addressable RGB Gen 2, BMC, COM, FlexKey, Front Audio, Start/Safe Boot/ReTry buttons, LN2, Slow Mode, SPI TPM, Front Panel, Chassis Intrusion, Thermal Sensor, ProbeIt points
Special Features	ASUS Q-Design	Q-Code, M.2 Q-Latch/Q-Release, Q-Connector, Q-DIMM, Q-LED, Q-Slot
	Thermal Solution	M.2 heatsinks + thermal pads, VRM heatsink with active fans
	EZ DIY	BIOS FlashBack™, Clear CMOS, Dual DIMM clips, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM
	Aura Sync	Addressable RGB Gen 2 header
	Business Features	24/7 Reliability, Overcurrent Protection
Software	ASUS Software	Armoury Crate, Fan Xpert 4, Aura Sync, ASUS CPU-Z, DriverHub, Control Center Express (ACCE)
	Bundled	Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days), WinRAR (40 Days)
BIOS	Type	256 Mb Flash ROM, UEFI AMI BIOS
Manageability	Features	WOL by PME, PXE (UEFI), BMC header (IPMI card sold separately)
Accessories	Included	2 × SATA cables, Thermistor cable, DisplayPort cable, 4-to-24-pin power connector, Wi-Fi Antenna, M.2 Q-Latch/Slide/Rubber packages, Fan bracket, Q-connector, ACC Express Key Card, QSG
Operating System	Supported	Windows® 11
Form Factor	Size	CEB 12" × 11" (30.5 cm × 28.0 cm)
