Asus Prime Z690-P D4 Intel Motherboard Supports Intel 12th, 13th & 14th Gen Processors
- Intel® LGA 1700 socket: Z690-P D4 Ready for 12th gen Intel® processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Delivery & Return
🚚 Shipping and Risk:
- Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
- Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
- Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
- Loss or damage occured during shipping is Computech Responsibility.
- You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
- You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package
♻️ Replacement and Refund Policy:
- We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
- For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
- If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
- Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
- Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
- All the accessories which were delivered along with the product should be returned in the same way and along with the product.
- If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
₹32,000.00 Original price was: ₹32,000.00.₹19,299.00Current price is: ₹19,299.00.
Out of stock
Email when stock available

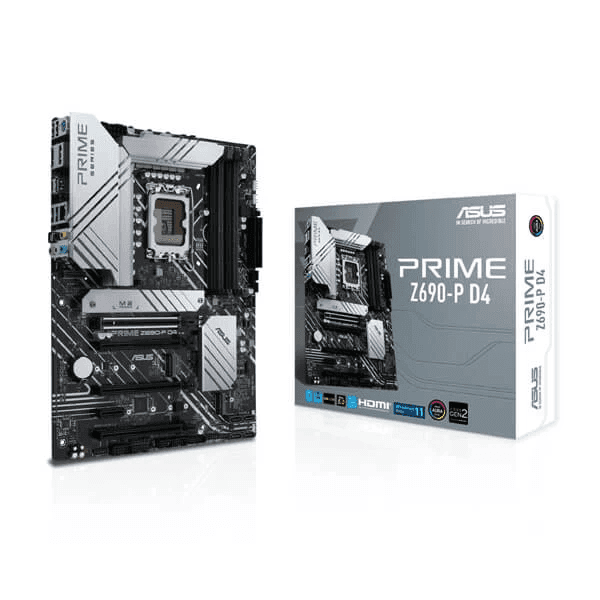

Asus Prime Z690-P D4 Intel Motherboard
Features:
- The ASUS PRIME Z690-P WIFI D4 ATX motherboard is designed to support latest 12th Gen Intel CPU’s with LGA 1700 socket, Pentium Gold and Celeron Processors.

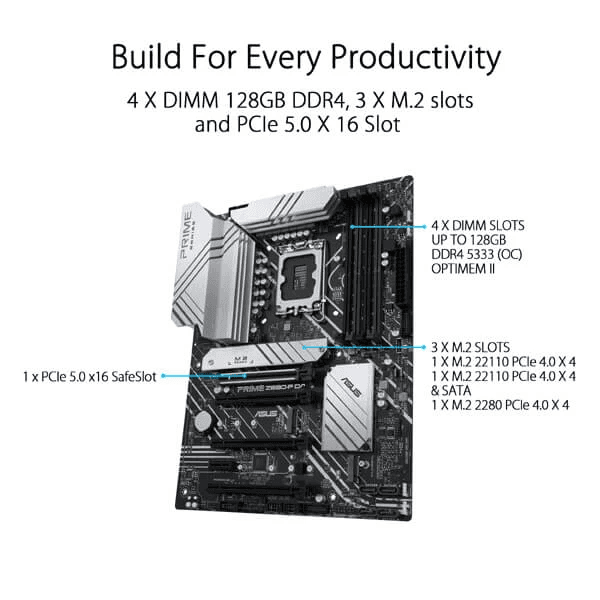

- The board is built with PCIe 5.0 Ready supporting 4 x DIMM, up to 128GB DDR4 5333MHz(OC) of memory and Intel Turbo Boost Technology to push your experience to its peak.
- Equipped with the next-gen technology of Intel WIFI 6 which is compatible with the 802.11ax standard. Comes with PCIe 5.0, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Three M.2 slots(PCIe 4.0) and Thunderbolt 4 header support.
- Comes with extensive cooling options like VRM heatsink, M.2 Heatsink, PCH heatsink and hybrid fan headers via Fan Xpert 4 or the UEFI BIOS.
- The board comes with DIY Friendly features. The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test that can help users troubleshoot potential issues. It is also have a handful features like Overvoltage Protection, DRAM Overcurrent Protection, Stainless-Steel Back I/O and LANGuard.
ASUS is one of Fortune magazine’s World’s Most Admired Companies and is one of the top motherboard and gaming brands as well as a top-three consumer notebook vendor. ASUS is driven by passion and innovation and dedicated to creating quality products for a future smart life, designing and manufacturing products that perfectly meet the needs of today’s digital home, office and person. Our wide portfolio includes MG248Q, Chromebox and a range of devices and components, along with AR and VR
PRIME Z690-P WIFI D4
Intel Z690 (LGA 1700) ATX motherboard with PCIe 5.0, three M.2 slots, 14+1 DrMOS, DDR4, HDMI, DisplayPort, Intel WiFi 6, 2.5 Gb Ethernet , USB 3.2 Gen 2×2 Type C, front USB 3.2 Gen 1 Type C,Thunderbolt 4 support and Aura Sync RGB lighting
- Intel LGA 1700 socket: Ready for 12th gen Intel processors
- Enhanced power solution: 14+1 DrMOS, 8+4 pin ProCool connector, alloy chokes and durable capacitors for stable power delivery
- Comprehensive cooling: Large VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 4
- ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
- Next-gen connectivity: Intel WiFi 6, DDR4, PCIe 5.0, 2.5 Gb Ethernet, USB 3.2 Gen 2×2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header support
|
|
|
---|---|---|
VRM Heatsinks and Thermal PadsTwo massive VRM heatsinks and high quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance |
M.2 HeatsinkTwo M.2 heatsinks take care of the three M.2 slots, warding off throttling that can occur with M.2 storage during sustained transfers |
Intel WiFi 6The Intel WiFi 6 module is compatible with the 802.11ax stan dard and pushes theoretical peak bandwidth up to an incredible 2.4 Gbps. Perhaps more importantly for power users, it’s optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 route rs to fully experience the networking potential of WiFi 6 |
|
|
|
---|---|---|

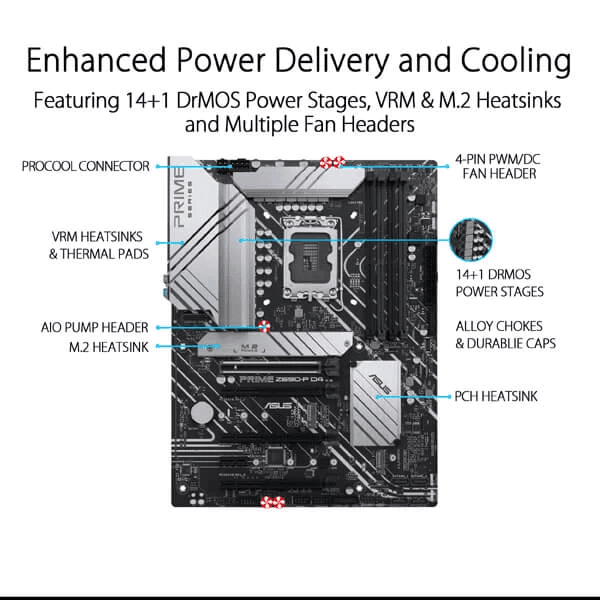

14+1 DrMOSA VRM with 14+1 DrMOS delivers the power and efficiency that the latest Intel processors demand |
DDR4 5333 (OC)Improvements to trace routing design provide the latest In tel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk |
Three M.2 slots (up to 64 Gbps)Prime Z690 P WiFi D4 offers a total of three M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot up and app load times with OS or application Drives |
|
|
|
---|---|---|
PCIe 5.0 SlotThe 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward compatible CEM connectors for add in ca rds, and backward compatibility with previous versions of PCI Express |
USB 3.2 Gen 2×2 Type-CNumerous USB ports support high end rigs loaded with peripherals, including both front and rear USB Type C connectors with fast USB 3.2 Gen 2×2 for transmission speeds of up to 20 Gbps |
Q-LED CoreThe Q LED Core display produces light patterns by power LED during the Power On Self Test (POST) that can help users troubleshoot potential issues |
CPU | Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipset | Z690 |
Memory | 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory* Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) OptiMem II *Actual Memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list. |
Graphics | 1 x DisplayPort** 1 x HDMI® Port*** *Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. **Supports max. 4K@60Hz as specified in DisplayPort 1.4. *** Supports 4K@60Hz as specified in HDMI 2.1. |
Expansion Slots | Intel® 12th Gen Processors* 1 x PCIe 5.0/4.0/3.0 x16 slot Intel® Z690 Chipset** 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode) 2 x PCIe 3.0 x16 slots (support x4 mode) 1 x PCIe 3.0 x1 slot * Please check PCIe bifurcation table in support site. ** Supports Intel® Optane Memory H Series on PCH-attached PCIe slot. |
Storage | Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports Intel® 12th Gen Processors M.2_1 slot (Key M), type 2242/2260/2280/22110 - Intel® 12th Gen processors support PCIe 4.0 x4 mode. Intel® Z690 Chipset** M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) 4 x SATA 6Gb/s ports * Intel® Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. ** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots |
Ethernet | 1 x Realtek 2.5Gb Ethernet |
Wireless & Bluetooth | V-M.2 slot only (Key E, CNVi & PCIe) V-M.2 slot only (Key E, CNVi & PCIe)* * Wi-Fi module and vertical M.2 Key E bracket set are purchased separately. |
USB | Rear USB:Total 6 ports 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB:Total 9 ports 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports* * USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. |
Audio | Realtek 7.1 Surround Sound High Definition Audio CODEC - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback Audio Features - Audio Shielding - Rear optical S/PDIF out port - Premium audio capacitors - Dedicated audio PCB layers |
Back Panel I/O Ports | 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®) 1 x USB 3.2 Gen 2 port (1 x Type-A) 2 x USB 3.2 Gen 1 ports (2 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x V-M.2 slot (Key E) 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x PS/2 Keyboard/Mouse combo port |
Intrernal I/O Connectors | Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 connector (supports USB Type-C®) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x 20-5pin System Panel header 1 x Thunderbolt™ header |
Special Features | ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - Flexible M.2 heatsink - VRM heatsink design ASUS EZ DIY - ProCool AURA Sync - AURA RGB header - Addressable Gen 2 headers |
Software Features | ASUS Exclusive Software Armoury Crate - AURA Sync - Fan Xpert 4 AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM ASUS CPU-Z Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode |
BIOS |
192 (128+64) Mb Flash ROM, UEFI AMI BIOS
|
Manageability | WOL by PME, PXE |
Accessories | Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 Rubber Package 2 x M.2 SSD screw packages Installation Media 1 x Support DVD Documentation 1 x User guide |
Operating System | Windows® 11 64-bit, Windows® 10 64-bit |
Form Factor | ATX 30.5cm x 24.4cm |
Warranty | 3 Years |
Note | ***Features, Price and Specifications are subject to change without notice. |
