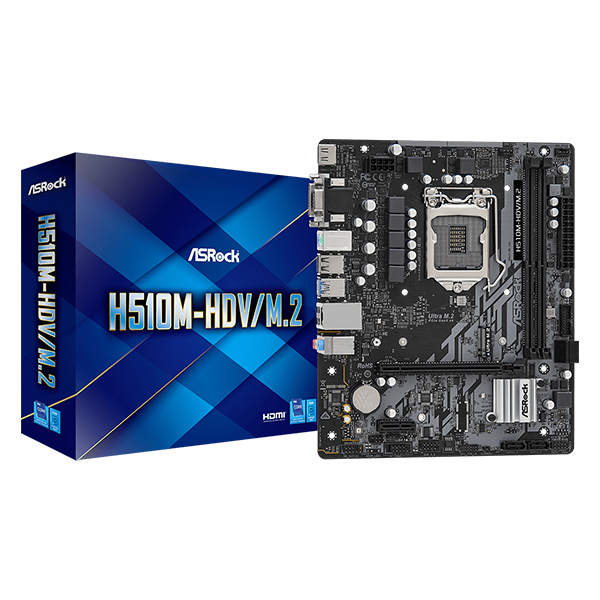

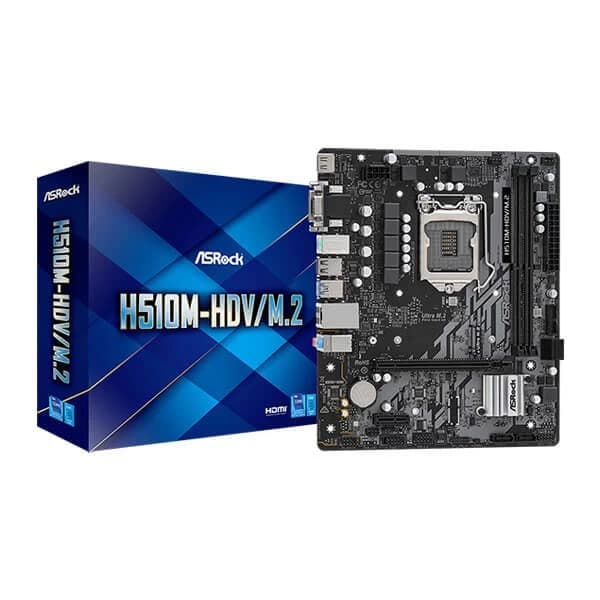

ASRock H510M-HDV/M.2 Intel Motherboard

5,900.00

Asrock
  • Supports 10th Gen IntelĀ® Coreā„¢ Processors and 11th Gen IntelĀ® Coreā„¢ Processors
  • Supports DDR4 3200MHz (OC)
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
  • Graphics Output Options: HDMI, DVI-D, D-Sub
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
ASRock H510M 1 1

5,900.00

Add to cart
Buy Now

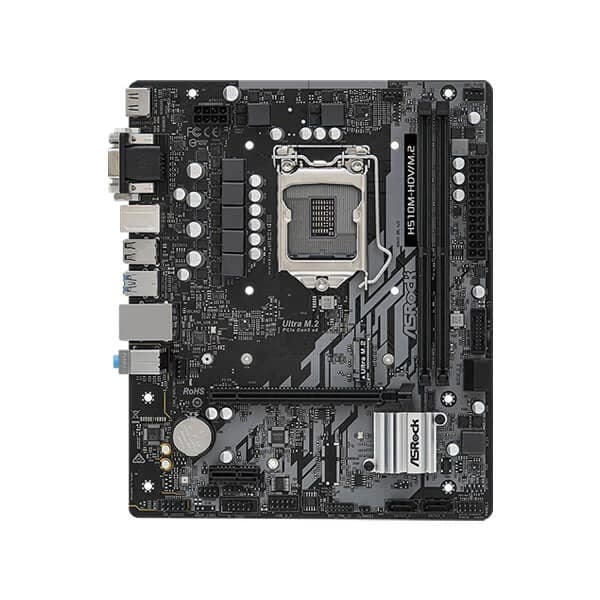

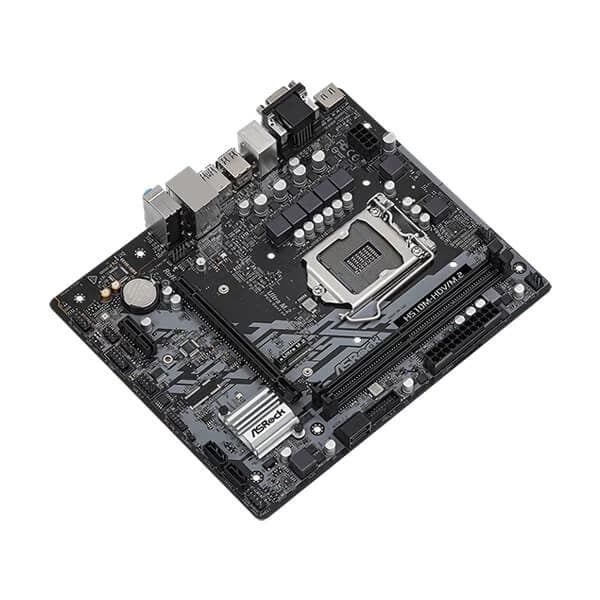

ASRock H510M-HDV/M.2 Motherboard

ASRock H510M HDV/M.2



Premium 50A Power Choke

ASRock H510M premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

IntelĀ® LAN

IntelĀ® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!



Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)

The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, H510MĀ  also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRockā€™s U.2 Kit for installing some of the worldā€™s fastest U.2 PCIe Gen3 x4 SSDs.

HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.

High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DVI-D + HDMI combo. Plus the HDMI port supports 4K resolution.

Water Pump Header

This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.

Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboardā€™s components from being damaged by these unexpected voltage spikes.

Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

Product Type

color

Chipset

Socket

Motherboard Size

Memory Series

Platform

Specification

Unique Feature ASRock Super Alloy
– Premium 50A Power Choke
– Sapphire Black PCB
– High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
CPU – Supports 10th Gen IntelĀ® Coreā„¢ Processors and 11th Gen IntelĀ® Coreā„¢ Processors (LGA1200)
– 5 Power Phase design
– Supports IntelĀ® Turbo Boost Max 3.0 Technology
Chipset – IntelĀ® H510
Memory – Dual Channel DDR4 Memory Technology
– 2 x DDR4 DIMM Slots
– Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory
– Supports ECC UDIMM memory modules (operate in non-ECC mode)
– Max. capacity of system memory: 64GB
– Supports IntelĀ® Extreme Memory Profile (XMP) 2.0
BIOS – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
– ACPI 6.0 Compliant wake up events
– SMBIOS 2.7 Support
– CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
Graphics – 11th Gen IntelĀ® Coreā„¢ Processors support IntelĀ® Xe Graphics Architecture (Gen 12). 10th Gen IntelĀ® Coreā„¢ Processors support Gen 9 Graphics
– Three graphics output options: D-Sub, DVI-D and HDMI
– Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen IntelĀ® Coreā„¢ Processors
– Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen IntelĀ® Coreā„¢ Processors
– Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
– Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
– Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen IntelĀ® Coreā„¢ Processors)
Audio – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
– Supports Surge Protection
LAN – Gigabit LAN 10/100/1000 Mb/s
– Giga PHY IntelĀ® I219V
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXE
Slots 11th Gen IntelĀ® Coreā„¢ Processors
– 1 x PCI Express 4.0 x16 Slot
10th Gen IntelĀ® Coreā„¢ Processors
– 1 x PCI Express 3.0 x16 Slot- 1 x PCI Express 3.0 x1 Slot
Storage – 4 x SATA3 6.0 Gb/s Connectors, support IntelĀ® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
– 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)
Connector – 1 x COM Port Header
– 1 x SPI TPM Header
– 1 x Chassis Intrusion and Speaker Header
– 1 x CPU Fan Connector (4-pin)
– 1 x Chassis Fan Connector (4-pin)
– 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
– 1 x 24 pin ATX Power Connector
– 1 x 8 pin 12V Power Connector
– 1 x Front Panel Audio Connector
– 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
– 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

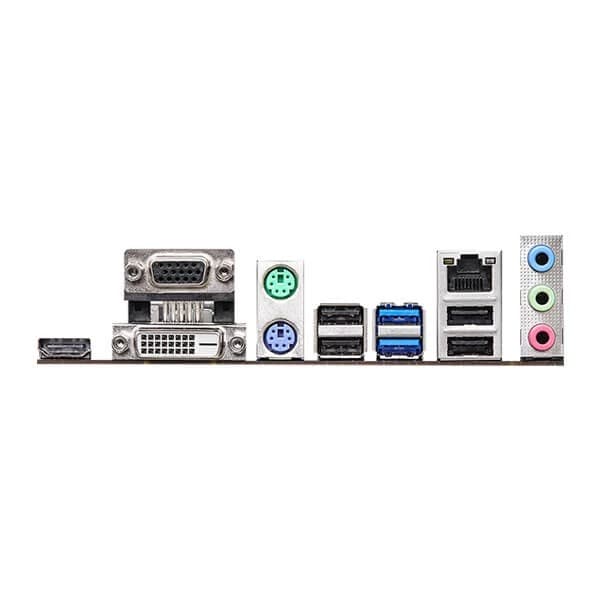

Rear Panel I/O – 1 x PS/2 Keyboard Port
– 1 x PS/2 Mouse Port
– 1 x D-Sub Port
– 1 x DVI-D Port
– 1 x HDMI Port
– 4 x USB 2.0 Ports (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software
– ASRock Motherboard Utility (A-Tuning)
– ASRock XFast LAN
UEFI
– ASRock EZ Mode
– ASRock Full HD UEFI
– ASRock My Favorites in UEFI
– ASRock Instant Flash
– ASRock Internet Flash
Support CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
Accessories – Quick Installation Guide, Support CD, I/O Shield
– 2 x SATA Data Cables
– 1 x Screw for M.2 Socket
Hardware Monitor – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
– CASE OPEN detection
– Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
Form Factor – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm
– Solid Capacitor design
OS – MicrosoftĀ® WindowsĀ® 10 64-bit / 11 64-bit
Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
