No reviews yet. Be the first to review!
AsRock
B860
AsRock Pro
mATX
LGA 1851
Black
B860M-PRO-A-WIFI
1 kg
N/A
| Category | Details |
|---|---|
| Key Features | PCIe Gen5 (Graphics + M.2), Dual Channel DDR5, BIOS Flashback, Post Status Checker, ASRock Auto Driver Installer |
| Durability | 10+1+1+1+1 Power Phase with Dr.MOS (VCore+GT+SA) |
| Connectivity | 2.5G LAN (Dragon RTL8125BG), Wi-Fi 6E (802.11axe), Bluetooth 5.3, MU-MIMO |
| CPU Support | Intel® Core™ Ultra Processors (LGA1851), Turbo Boost Max 3.0, TVB, ABT, Hybrid Tech, Integrated NPU |
| Chipset | Intel® B860 |
| Memory | 4× DDR5 DIMMs (Up to 8666+ MHz OC)*, Max 256GB, XMP 3.0, ECC & unbuffered support |
| Graphics Output | HDMI 2.1 (4K@120Hz), DisplayPort 1.4 (8K@60Hz), Intel Xe LPG Architecture* |
| Audio | Realtek ALC897, 7.1 CH HD Audio |
| LAN & WLAN | 2.5Gb LAN (Dragon), Wi-Fi 6E with 6GHz Band Support, Bluetooth 5.3 |
| Expansion Slots | - 1× PCIe 5.0 x16 (from CPU) - 1× PCIe 4.0 x4 (from Chipset) |
| M.2 & Storage | - 1× PCIe Gen5 x4 M.2 (CPU) - 2× PCIe Gen4 x4 M.2 (Chipset) - 4× SATA3 Supports RAID 0/1/5/10 |
| USB Ports | - Rear: 1× USB 3.2 Gen2x2 Type-C, 3× USB 3.2 Gen1, 2× USB 2.0 - Front: USB-C Gen1, 2× USB-A Gen1, 4× USB 2.0 |
| Cooling Support | - 2× CPU Fan (4-pin), 3× Chassis Fan (4-pin), 1× AIO Pump (Smart Fan Control) |
| Lighting Headers | - 1× 12V RGB Header - 3× 5V ARGB Headers (Supports up to 36W/15W total respectively) |
| Internal I/O | SPI TPM, Front Audio, USB 3.2 Gen1 Header, USB 3.2 Type-C Header, USB 2.0 Headers, Power LED & Speaker, ATX 24-pin, 8+4 pin 12V Power Connectors |

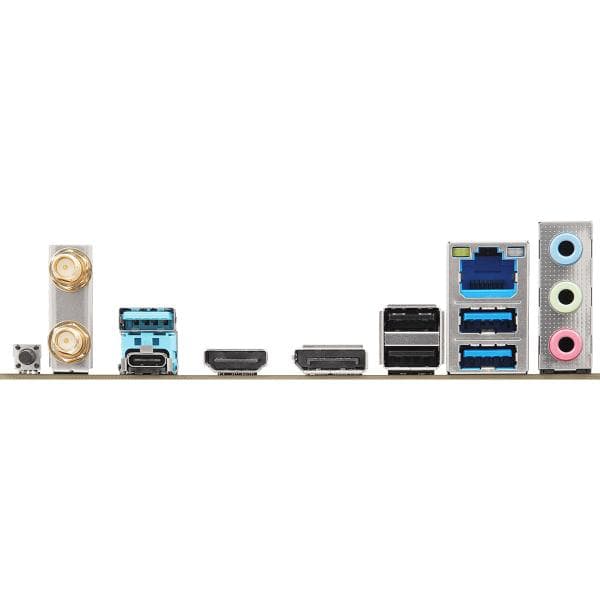

| Rear I/O Ports | HDMI, DP 1.4, 1× USB 3.2 Gen2x2 Type-C, 3× USB 3.2 Gen1, 2× USB 2.0, RJ-45, Antenna Ports, BIOS Flashback, 3× Audio Jacks |
| BIOS & Software | UEFI with GUI, EZ Mode, Instant Flash, Auto Driver Installer, A-Tuning, Dragon LAN Software, Polychrome SYNC |
| Accessories | I/O Shield, 2× SATA Cables, 2× Wi-Fi Antennas |
| Form Factor | Micro ATX (9.6" × 9.6", 24.4cm × 24.4cm) |
| OS Support | Microsoft Windows® 11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
