ASRock B650 Pro RS Motherboard
SKU: B650-PRO-RS
users viewing this item right now
₹26000
₹17299
Save Extra
Availability
Sold Out
ASRock B650 Pro RS Motherboard
ASRock B650 Pro RS Motherboard
ASRock PRO B650 PRO RS AM5 ATX Mainboard , 4 slots DDR5, PCIE 4.0 x16, 3 M.2 slots, 2.5Gb Lan, 7.1 Nahimic Audio , Rear USB3.2 Gen2X2 Type_C , 14+2+1 Power Phase, bios flash back.
ASRock B650 Pro RS : AM5 Gaming Motherboard
The ASRock B650 Pro RS motherboard is the ideal choice to accompany an AMD Ryzen 7000 processor on AMD AM5 socket when assembling a gaming system. It supports DDR5, PCI-Express 4.0 graphics cards and PCIe 5.0M.2 SSDs and comes with full connectivity with 2.5 GbE LAN as well as USB 3.1 and 3.2.
Fetures
- B650 Pro RS
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6200+(OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Realtek 2.5G LAN
Key Features
| Motherboard | |
|---|---|
| Platform | AMD |
| Socket | AM5 |
| Cpu Type | Ryzen 9000,Ryzen 8000,Ryzen 7000 |
| Chipset | B650 |
| Memory Speed | up to 7200+ |
| Max Memory Support | 128 GB |
| Supported Memory Type | DDR5 |
| Channel Supported | Dual Channel |
| Memory Feature | ECC/non-ECC, un-buffered memory Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules |
| Graphics Port | 1 x HDMI,1 x DisplayPort |
| Expansion Slots | CPU: - 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode - 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode Chipset: - 1 x PCIe 4.0 x1 Slot (PCIE2) - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module - Supports AMD CrossFire™ - 15μ Gold Contact in VGA PCIe Slot (PCIE1) |

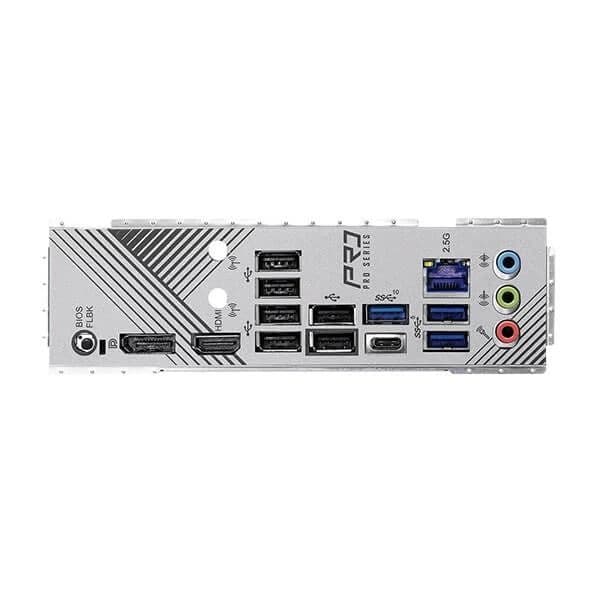

| Back Panel I/O Ports | - 2 x Antenna Mounting Points - 1 x HDMI Port - 1 x DisplayPort 1.4 - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) - 2 x USB 3.2 Gen1 Ports - 6 x USB 2.0 Ports - 1 x RJ-45 LAN Port - 1 x BIOS Flashback Button - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Internal I/O Connector | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 1 x RGB LED Header - 3 x Addressable LED Headers - 1 x CPU Fan Connector (4-pin) - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) - 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector - 1 x 4 pin 12V Power Connector - 1 x Front Panel Audio Connector - 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card) - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver) |
| Form Factor | ATX |
| Warranty | 3 Years |
| Note | Features, Price, Specifications are subject to change without notice. Images used for representation purpose only |
Socket
AM4
Chipset
B650
Platform
AMD
Ean-Upc-Code
4710483940750
Product-Type
Gaming
Memory-Series
DDR5
Motherboard-Size
ATX
Motherboard-Series
AsRock Pro
