Feature

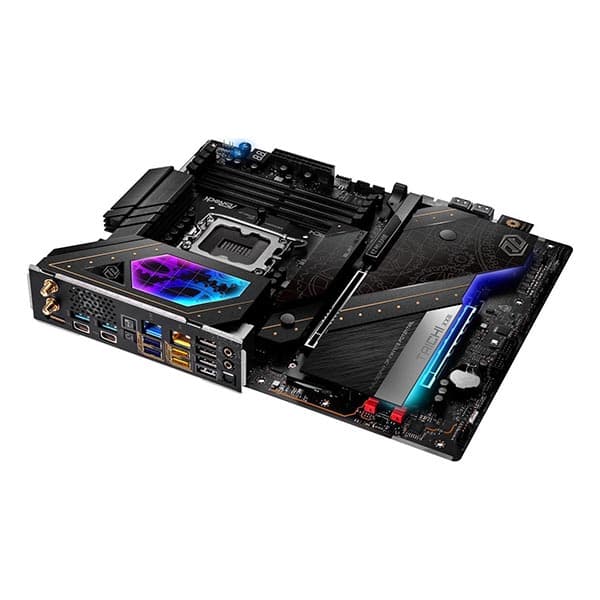

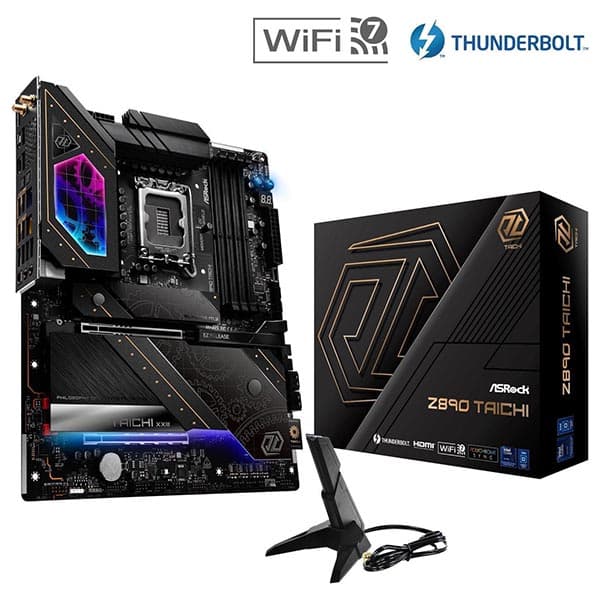

ASRock Supports Intel^® Core™ Ultra Processors (Series 2) (LGA1851)

20+1+2+1+1 Power Phase, 110A SPS for VCore

4 x DDR5 DIMMs Supports Dual Channel, up to 9600+ (OC)

1 PCIe 5.0 x16, 1 PCIe 4.0 x16

Graphics Output Options: 1 HDMI, 2 Thunderbolt™ 4 Type-C

Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Cap, Nahimic Audio

4 SATA3 1 Blazing M.2 (PCIe Gen5 x4) 4 Hyper M.2 (PCIe Gen4 x4) 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)

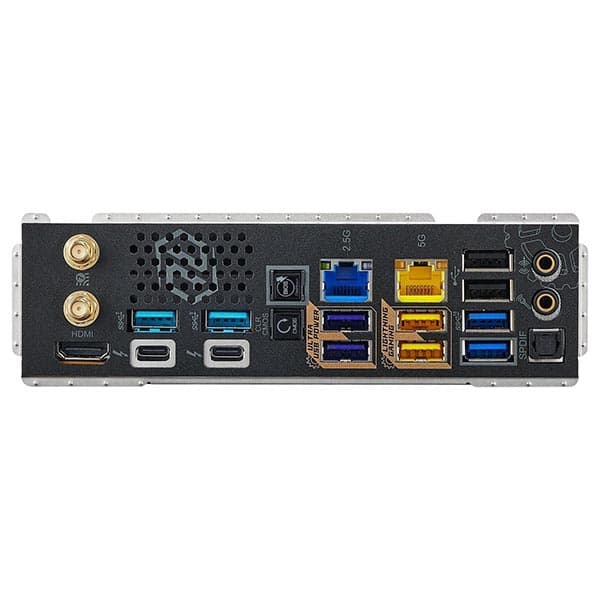

2 Thunderbolt™ 4 Type-C (Rear) 1 USB 3.2 Gen2x2 Type-C (Front) 4 USB 3.2 Gen2 Type-A (Rear) 8 USB 3.2 Gen1 (4 Rear, 4 Front) 6 USB 2.0 (2 Rear, 4 Front)

5Gbps LAN, 2.5G LAN

802.11be Wi-Fi 7 + Bluetooth

Supports Memory OC Shield, BIOS Flashback, 20K Caps with 1000uF Capacitance, M.2 Expansion Card

Exclusive 20K Cap with 1000uF Capacitance

The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF, bringing several benefits: ●Higher Capacitance: Greater charge storage for better support under high loads. ●Lower Ripple: Reduced power output fluctuations, improving quality. ●More Stable Output Current: Stable power supply, minimizing voltage impacts. ●Better Performance & System Stability: Increased reliability and consistent performance.

20+1+2+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SPS (Smart Power Stage)

Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

Hi-Density Power Connector

CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.

PREMIUM PCB SOLUTION

The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.

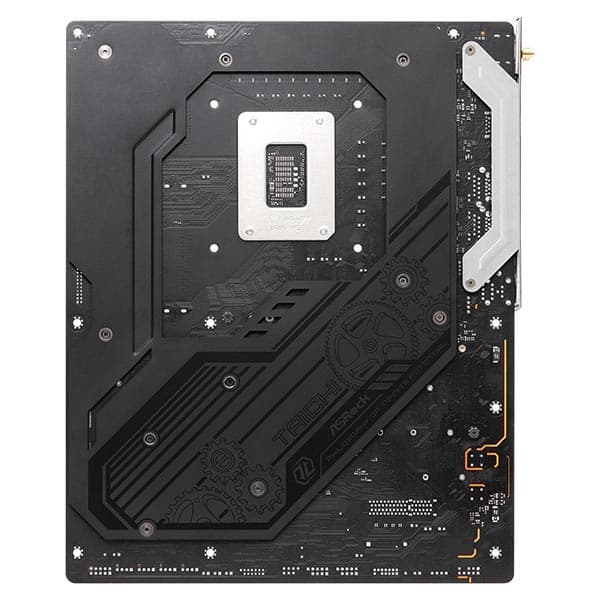

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

High Speed M.2 Solution

Deluxe 6*M.2 Socket

Supports up to 6*NVMe M.2 SSDs and one of which is able to accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed. It is ready to unleash the full potential of future ultrafast SSDs. to give a lightning fast data transferring experience.

Extreme Memory Overclocking

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel^® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

Enlarged M.2 Heatsink

XXL M.2 Heatsink with Toolless Design

The extra-large aluminum alloy M.2 heatsink with toolless design is a user friendly quick release mechanism that helps installing M.2 SSD super easy & simple.

Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.

Wi-Fi 7

Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.

Thunderbolt™ 4 Type-C

Thunderbolt™ 4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast data transfer up to 40Gbps and connects external monitors, Thunderbolt™, and USB devices with a single Thunderbolt 4 cable.

Please refer to Intel^® “What is Thunderbolt 4” page for more detail.

Optimized 5 Gb/s LAN

ASRock's 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.
