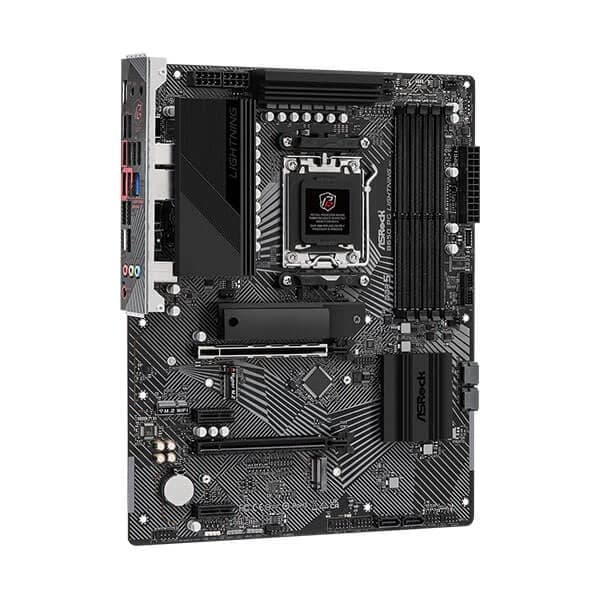

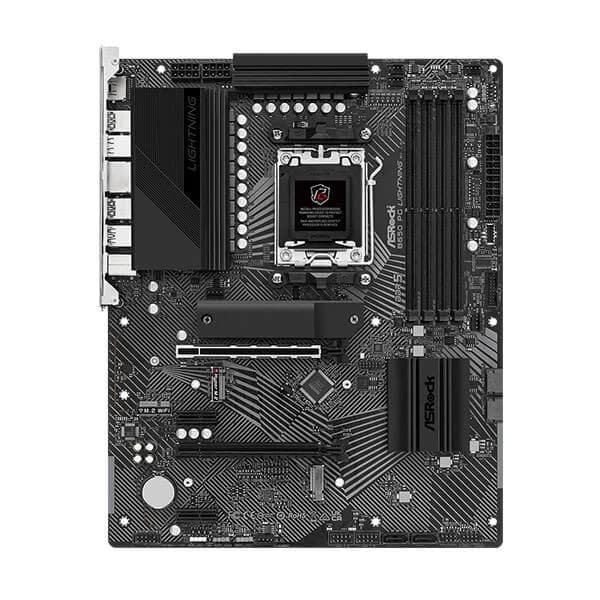

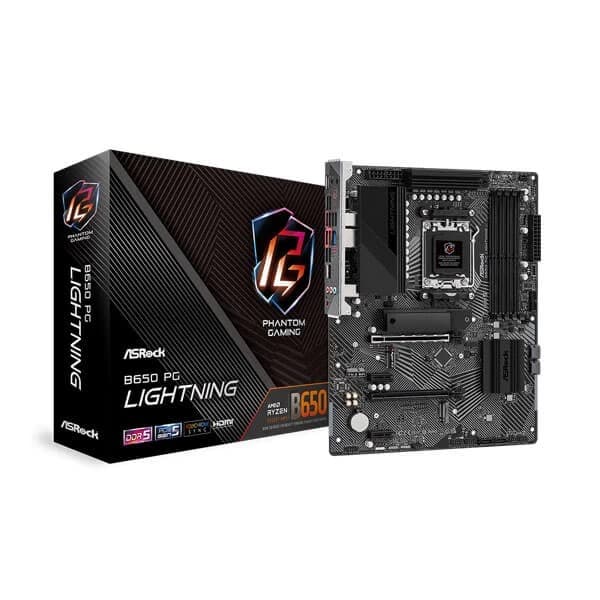

ASRock B650 PG Lightning Motherboard

  • B650 PG Lightning
  • Supports AMD Ryzen™ 7000 Series Processors
  • 14+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6400+(OC)
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

21,049.00

Out of stock

Email when stock available

The ASRock B650 PG Lightning motherboard is the ideal choice to accompany an AMD Ryzen 7000 processor on AMD AM5 socket when assembling a gaming system. It supports DDR5PCI-Express 4.0 graphics cards and PCIe 5.0M.2 SSDs , and features full connectivity with 2.5 GbE LAN as well as USB 3.1 and 3.2.
Motherboard's concept pictureBuild for The Most Advanced PC

Fetures

  • B650 PG Lightning
  • Supports AMD Ryzen™ 7000 Series Processors
  • 14+2+1 Phase Power Design, SPS
  • 4 x DDR5 DIMMs, supports up to 6400+(OC)
  • 1 PCIe 4.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
  • Graphics Output Options: 1 HDMI7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio<//p>
  • 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen4x2), 4 SATA3
  • 1 USB 3.2 Gen2x2 Type-C (Rear), 1 USB 3.2 Gen2
  • Type-C (Front), 9 USB 3.2 Gen1 (7 Rear, 2 Front), 8 USB
  • 2.0 (4 Rear, 4 Front)
  • Realtek 2.5G LAN



Unique Feature Superb Productivity -
  • PCIe Gen5 (M.2) -
  • Dual Channel DDR5
Rock-Solid Durability -
  • 14+2+1 Power Phase, 60A SPS
  • Pre-Installed I/O Shield
Ultrafast Connectivity
  • 2.5G LAN
  • ASRock Lightning Gaming Ports EZ Update
  • BIOS Flashback Button
  • ASRock Auto Driver Installer EZ Troubleshooter
  • ASRock Post Status Checker
CPU Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
Chipset - AMD B650
Memory
  • Dual Channel DDR5 Memory Technology -
  • 4 x DDR5 DIMM Slots -
  • Supports DDR5 non-ECC, un-buffered memory up to 6400+(OC)* - Max.
  • capacity of system memory: 128GB* -
  • Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
BIOS 256Mb AMI UEFI Legal BIOS with GUI support
Graphics Integrated AMD RDNA™ 2 graphics (Actual support may vary by CPU) - 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
Audio
  • 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • Nahimic Audio
LAN
  • 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
  • Dragon RTL8125BG Supports Phantom Gaming LAN Software
  • Smart Auto Adjust Bandwidth Control
  • Visual User Friendly UI
  • Visual Network Usage Statistics
  • Optimized Default Setting for Game, Browser, and Streaming Modes
  • User Customized Priority Control
Slots CPU: -
  • 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE3), supports x2 mode
  • 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE4)
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
  • 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Storage CPU: -
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset: -
  • 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode* -
  • 4 x SATA3 6.0 Gb/s Connectors
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
USB
  • 1 x USB 3.2 Gen2x2 Type-C (Rear)
  • 1 x USB 3.2 Gen2 Type-C (Front)
  • 9 x USB 3.2 Gen1 (7 Rear, 2 Front)
  • 8 x USB 2.0 (4 Rear, 4 Front)
Connector
  • 1 x SPI TPM Header
  • 1 x Power LED and Speaker Header
  • 1 x RGB LED Header
  • 3 x Addressable LED Headers
  • 1 x CPU Fan Connector (4-pin)
  • 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
  • 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
  • 1 x 24 pin ATX Power Connector
  • 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
  • 1 x Front Panel Audio Connector
  • 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
  • 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
  • 1 x Front Panel Type C USB 3.2 Gen2 Header (ReDriver)

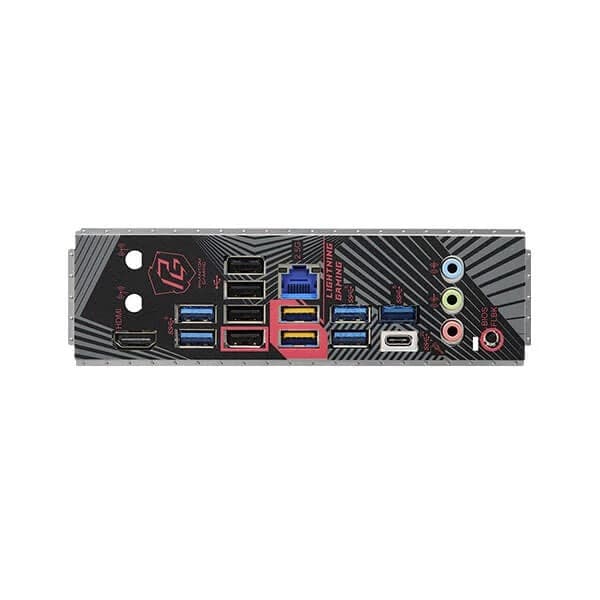

Rear Panel I/O
  • 2 x Antenna Mounting Points
  • 1 x HDMI Port
  • 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s) (ReDriver)
  • 7 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports) (USB32_12 and USB32_56 are from ASMedia ASM1074 hub)
  • 4 x USB 2.0 Ports
  • 1 x RJ-45 LAN Port
  • 1 x BIOS Flashback Button
  • HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI Software -
  • ASRock Motherboard Utility (Phantom Gaming Tuning) -
  • ASRock Phantom Gaming LAN Software
  • ASRock Polychrome SYNC UEFI - ASRock Full HD
UEFI -
  • ASRock Auto Driver Installer
  • ASRock Instant Flash
Accessories
  • 1 x User Manual
  • 2 x SATA Data Cables
  • 3 x Screws for M.2 Sockets
Form Factor
  • ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
  • 8 Layer PCB
OS
  • Microsoft® Windows® 10 64-bit / 11 64-bit
Certifications
  • FCC, CE
  • ErP/EuP ready (ErP/EuP ready power supply is required)
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 1 kg
