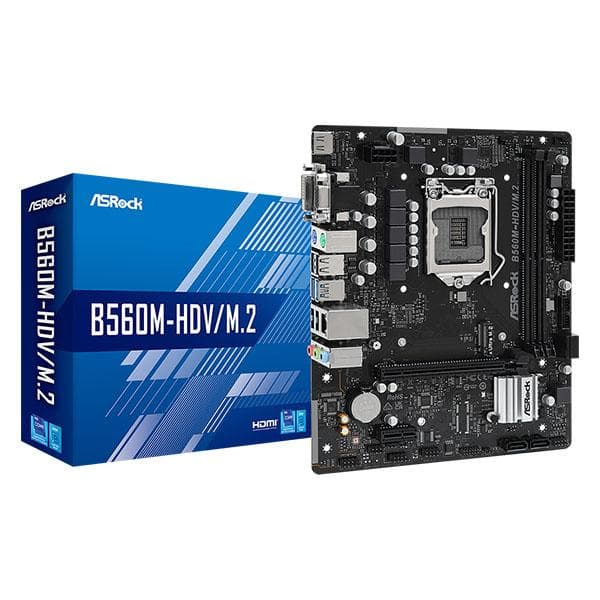

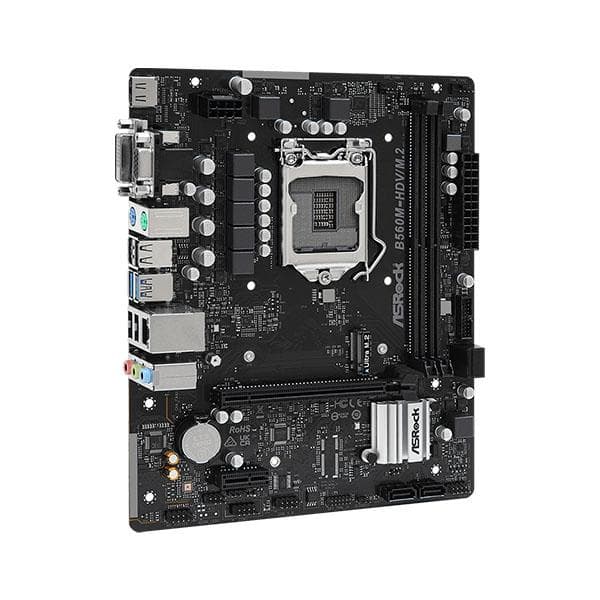

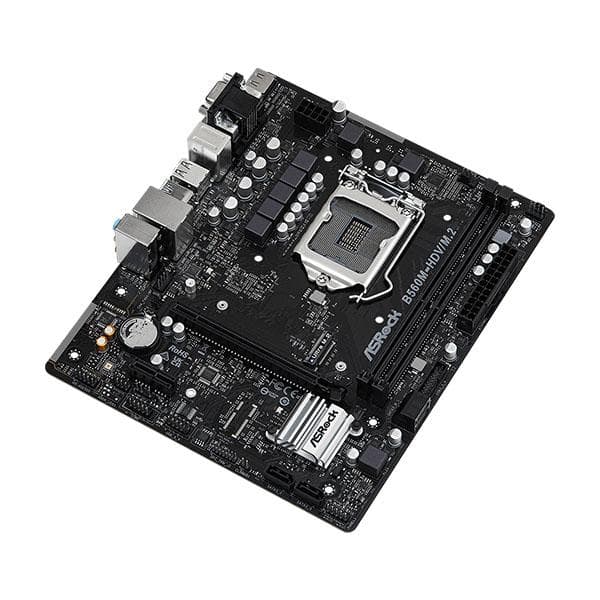

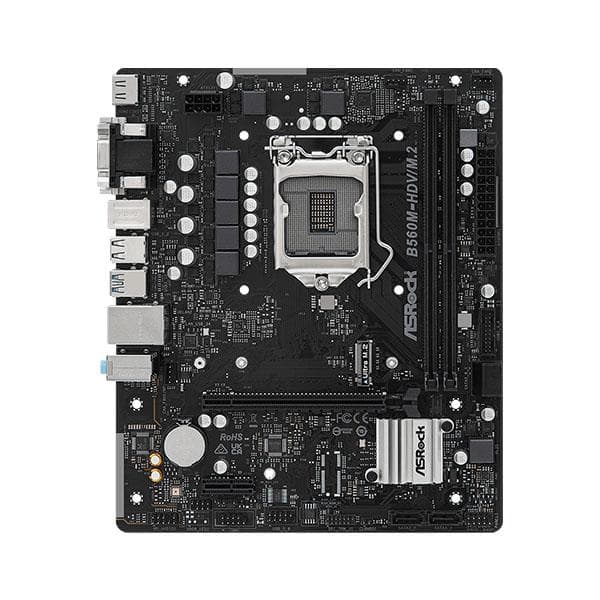

ASRock B560M-HDV/M.2 Micro ATX Motherboard
Brand: Asrock
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 4000+ MHz (OC)*
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front),
- 6 x USB 2.0 (4 x Rear, 2 x Front)
- Intel® Gigabit LAN
... people are viewing this right now
Original price was: ₹8,763.00.₹6,409.00Current price is: ₹6,409.00.
Out of stock
Email when stock available
ASRock B560M-HDV/M.2 Micro ATX Motherboard Intel SOCKET1200 for Intel 10TH/11TH GEN CORE
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop
| Unique Feature | ASRock Super Alloy |
| Premium 50A Power Choke | |
| Sapphire Black PCB | |
| High Density Glass Fabric PCB | |
| ASRock Hyper M.2 (PCIe Gen4x4) | |
| ASRock Full Spike Protection (for all USB, Audio, LAN Ports) | |
| ASRock Live Update & APP Shop | |
| CPU | Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors (LGA1200) |
| Digi Power design | |
| 6 Power Phase design | |
| Supports Intel Turbo Boost Max 3.0 Technology | |
| Chipset | Intel B560 |
| Memory | Dual Channel DDR4 Memory Technology |
| 2 x DDR4 DIMM Slots | |
| 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 5000+(OC) | |
| 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC) | |
| BIOS | 128Mb AMI UEFI Legal BIOS with multilingual GUI support |
| ACPI 6.0 Compliant wake up events | |
| SMBIOS 2.7 Support | |
| CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCST, VCCSA Voltage Multi-adjustment | |
| Audio | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
| Supports Surge Protection | |
| LAN | Gigabit LAN 10/100/1000 Mb/s |
| Giga PHY Intel I219V | |
| Supports Wake-On-LAN | |
| Supports Lightning/ESD Protection | |
| Supports Energy Efficient Ethernet 802.3az | |
| Supports PXE | |
| Slots | 11th Gen Intel Core Processors |
| 1 x PCI Express 4.0 x16 Slot | |
| 10th Gen Intel Core Processors | |
| 1 x PCI Express 3.0 x16 Slot | |
| 2 x PCI Express 3.0 x1 Slots | |
| Connector | 1 x COM Port Header |
| 1 x SPI TPM Header | |
| 1 x Chassis Intrusion and Speaker Header | |
| 1 x CPU Fan Connector (4-pin) | |
| 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) | |
| 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) | |
| 1 x 24 pin ATX Power Connector | |
| 1 x 8 pin 12V Power Connector | |
| 1 x Front Panel Audio Connector | |
| 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) | |
| 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) | |

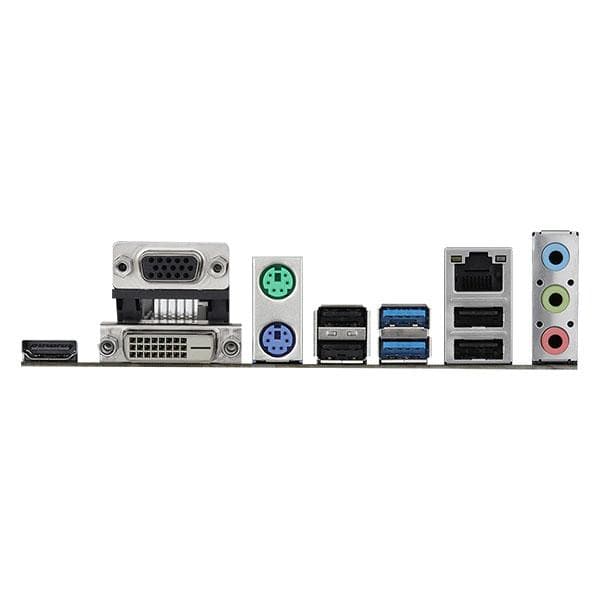

| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port |
| 1 x D-Sub Port | |
| 1 x DVI-D Port | |
| 1 x HDMI Port | |
| 2 x USB 2.0 Ports (Supports ESD Protection) | |
| 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) | |
| 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) | |
| HD Audio Jacks: Line in / Front Speaker / Microphone | |
| Form Factor | Micro ATX Form Factor: 9.6-in x 7.8-in, 24.4 cm x 19.8 cm |
| Solid Capacitor design | |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
