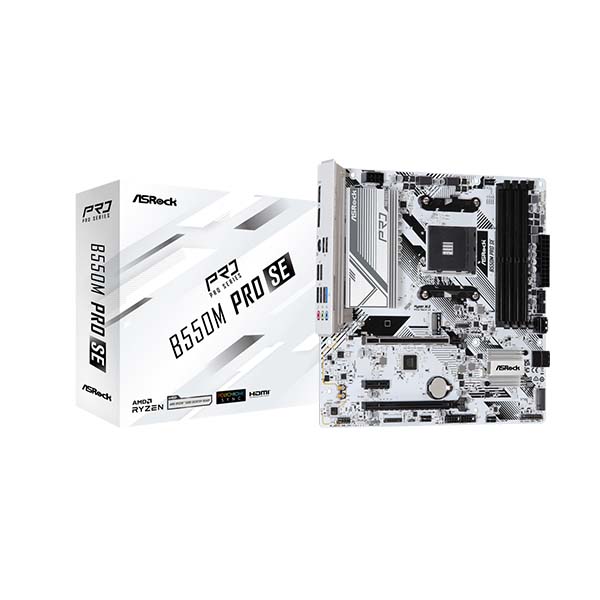

ASRock B550M Pro SE AM4 DDR4 Micro ATX Motherboard
5 sold in last 7 hours
Hurry! Over 4 people have this in their carts
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
Estimated Delivery: Dec 10 – Dec 14
... people are viewing this right now
Original price was: ₹12,499.00.₹8,439.00Current price is: ₹8,439.00.
ASRock B550M Pro SE AM4 DDR4 SATA 6Gb/s 1 PCIe 4.0 x16 Micro ATX Motherboard
Feature
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Dual M.2 For SSD, Supports NVMe Type M.2
Ready for higher capacity and even faster NVMe M.2 SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
![Reinforced Steel Slot [PCIe 4.0 Version]](/mb/features/PCIeSteel-B550M Pro SE.jpg)
Pre-Installed IO Shield
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
| Brand | ASRock |
|---|---|
| Model | B550M Pro SE |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | - Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors* * Not compatible with AMD Athlon™ Processors. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | - AMD Ryzen series CPUs (Vermeer) support DDR4 4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series CPUs (Matisse) support DDR4 4533+(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Cezanne) support DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/4666(OC)/4600(OC)/4533(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3200/2933/2667/2400/2133 ECC & non-ECC, un-buffered memory* - AMD Ryzen series APUs (Picasso) support DDR4 3333+(OC)/3200(OC)/2933/2667/2400/2133 non-ECC, un-buffered memory* * For Ryzen Series APUs (Picasso, Cezanne and Renoir), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/) * For non-XMP memory frequency support, please refer to the Specification on ASRock's website. * For more details, please refer to the QVL on ASRock's website. |
| Maximum Memory Supported | 128GB |
| Memory Feature | Supports Extreme Memory Profile (XMP) memory modules |
| PCI Express 4.0 x16 | AMD Ryzen series CPUs (Vermeer and Matisse) - 2 x PCIe x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Cezanne and Renoir) - 2 x PCIe x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode)* AMD Ryzen series APUs (Picasso) - 2 x PCIe x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode)* * Supports NVMe SSD as boot disks - Supports AMD CrossFire |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 Slot (PCIE2: x1 mode) |
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: - 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) mode (with Cezanne, Renoir and Picasso)* Chipset: - 1 x M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes** Supports NVMe SSD as boot disks |
| SATA RAID | 0/1/10 |
| Audio Chipset | 7.1 CH HD Audio (Realtek ALC897 Audio Codec) |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Dragon RTL8125BG - Supports Dragon 2.5G LAN Software - Smart Auto Adjust Bandwidth Control - Visual User Friendly UI - Visual Network Usage Statistics - Optimized Default Setting for Game, Browser, and Streaming Modes - User Customized Priority Control |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Back I/O Ports | - 1 x PS/2 Mouse/Keyboard Port - 1 x HDMI Port - 1 x DisplayPort 1.4 - 4 x USB 3.2 Gen1 Ports - 2 x USB 2.0 Ports - 1 x RJ-45 LAN Port with LED - HD Audio Jacks: Line in / Front Speaker / Microphone |
|---|
| Onboard USB | - 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) |
|---|---|
| Other Connectors | - 1 x SPI TPM Header - 1 x Power LED and Speaker Header - 2 x RGB LED Headers* - 2 x Addressable LED Headers** - 1 x CPU Fan Connector (4-pin)*** - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)**** - 1 x Front Panel Audio Connector* Support in total up to 12V/3A, 36W LED Strip ** Support in total up to 5V/3A, 15W LED Strip *** CPU_FAN1 supports the fan power up to 1A (12W). **** CHA_FAN1~3/WP support the fan power up to 2A (24W). **** CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | - 1 x 24 pin ATX Power Connector - 1 x 8 pin 12V Power Connector |
| Windows 11 | Supported |
|---|
| Features | Rock-Solid Durability - 8 Power Phase - Pre-Installed I/O Shield Ultrafast Connectivity - 2.5G LAN Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC * These utilities can be downloaded from ASRock Live Update & APP Shop. UEFI - ASRock Full HD UEFI - ASRock Instant Flash |
|---|
| Package Contents | - 1 x User Manual - 2 x SATA Data Cables - 2 x Screws for M.2 Sockets |
|---|
Add a review
Currently, we are not accepting new reviews
Q & A
How many ARGB Headers does this board has?
THE ASROCK B550M PRO SE AM4 DDR4 MICRO ATX MOTHERBOARD FEATURES 2 RGB HEADERS AND 2 ADDRESSABLE RGB HEADERS. THIS ALLOWS YOU TO CONNECT COMPATIBLE RGB DEVICES AND SYNCHRONIZE LIGHTING EFFECTS ACROSS YOUR SETUP. THE RGB HEADERS SUPPORT STANDARD 5050 RGB LED STRIPS, WHILE THE ADDRESSABLE HEADERS SUPPORT WS2812B ADDRESSABLE LED STRIPS, PROVIDING FLEXIBILITY FOR YOUR LIGHTING CONFIGURATIONS.
