ASROCK Q670M vPro MOTHERBOARD
SKU: ASROCK-Q670M-vPro
users viewing this item right now
₹25499
₹13449
Save Extra
Availability
In Stock

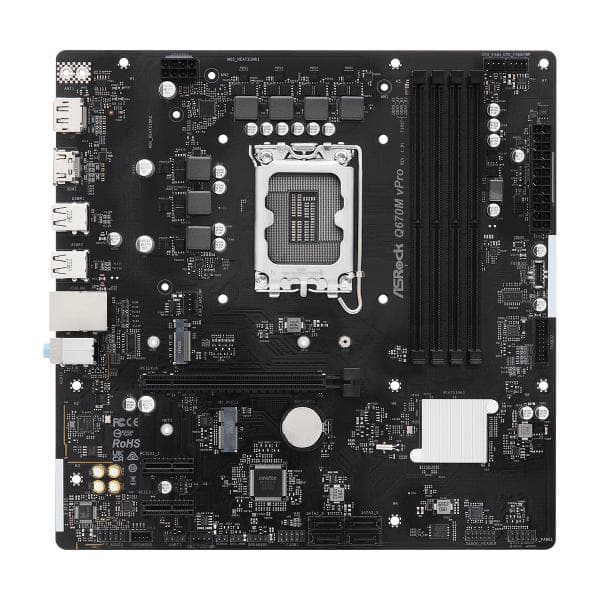

ASROCK Q670M vPro MOTHERBOARD
ASROCK Q670M vPro MOTHERBOARD
- ASROCK Q670M vPro Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- 4 x DDR5 DIMMs Supports Dual Channel, up to 5600*
- 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort
- Realtek ALC662 5.1/ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Front) 2 USB 3.2 Gen2 Type-A (Rear) 2 USB 3.2 Gen1 Type-A (Front) 6 USB 2.0 (4 Rear, 2 Front)
- Intel® I226LM 2.5GbE LAN
- Supports Intel® vPro™ Technology
- Supports ASRock Auto Driver Installer
- TPM Module onboard
Supports Intel® vPro technology
The Intel® Ethernet Controller I226LM is designed for use on any mobile, desktop, workstation, value-server, or industrial designs that have critical space constraints. Featuring 2.5Gb/s Ethernet and supports Intel® Active Management Technology on systems enabled with Intel® vPro® technology.
Key Features
| Category | Details |
|---|---|
| Productivity | - Dual Channel DDR5- Intel® Q670 chipset with vPro™ & Active Management Technology (AMT) support |
| Durability | 5+1+1 Power Phase |
| CPU Support | Intel® 14th, 13th, and 12th Gen Core™ (LGA1700), Hybrid Architecture, Turbo Boost Max 3.0 |
| Chipset | Intel® Q670, with support for vPro™ & AMT 16.1 (only with Intel® vPro™ CPUs) |
| Memory Support | 4× DDR5 DIMMs, up to 5600 (14th/13th Gen), 4800 (12th Gen), max 192GB, XMP 3.0 support |
| Graphics Output | - 1× HDMI 2.1 (4K @ 60Hz) - 1× DisplayPort 1.4 (up to 8K @ 60Hz) Intel® Xe (Gen 12) Graphics (when using integrated GPU) |
| Audio | 5.1 CH HD (ALC662) / 7.1 CH HD (ALC897) |
| LAN | Intel® I226LM 2.5 Gigabit LAN (10/100/1000/2500 Mbps) |
| Expansion Slots | - 1× PCIe 4.0 x16 (CPU)- 2× PCIe 4.0 x1 (Chipset)- 1× M.2 (Key E) for WiFi/BT |
| Storage | - 1× M.2 PCIe Gen4 x4 (2280, from CPU)- 4× SATA3 (6.0 Gb/s)- Supports Intel® VMD & Optane™ H Series |
| RAID Support | - RAID 0/1/5/10 (SATA) - RAID 0/1 (M.2 NVMe) with expansion cards |
| USB Ports | - Front: 1× USB-C Gen2x2, 2× USB-A Gen1, 2× USB 2.0- Rear: 2× USB-A Gen2, 4× USB 2.0 |
| Cooling Support | - 1× CPU Fan (12W) - 1× CPU/W_Pump (24W, smart control) - 2× Chassis/W_Pump (24W each, smart control) |
| RGB Headers | No specific mention of RGB/ARGB headers |
| Internal I/O | - USB 2.0, USB 3.2 Gen1, USB-C headers - Chassis Intrusion, Front Panel Audio, 24-pin ATX, 8-pin CPU |

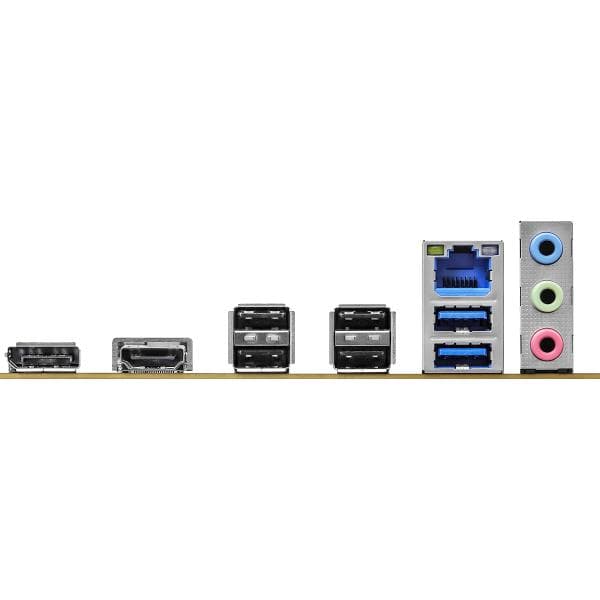

| Rear I/O Ports | - 1× HDMI - 1× DisplayPort - 2× USB-A Gen2 - 4× USB 2.0 - 1× LAN - 3× Audio Jacks - 2× Antenna Mounts |
| BIOS & Software | UEFI GUI BIOS, Instant Flash, A-Tuning Utility, Auto Driver Installer, Easy RAID Installer |
| Accessories | - 1× I/O Shield - 2× SATA Data Cables |
| Form Factor | Micro ATX (9.6" × 9.6", 24.4 cm × 24.4 cm) |
| OS Compatibility | Windows® 10 / 11 (64-bit) |
| Certifications | FCC, CE, ErP/EuP Ready |
Color
Black
Brands
AsRock
Socket
LGA 1700
Chipset
Q670
Motherboard-Size
mATX
