SKU: WDS100T3B0E
users viewing this item right now

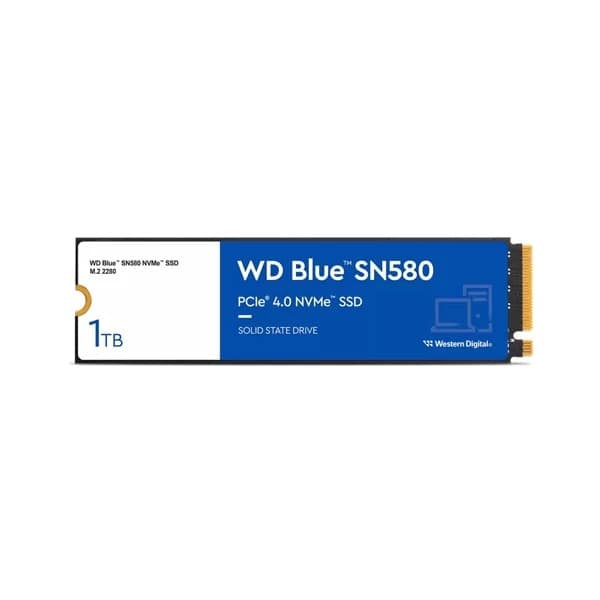

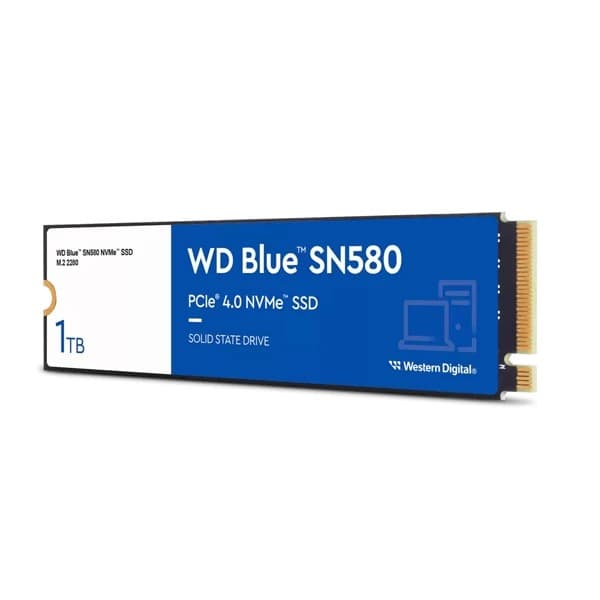

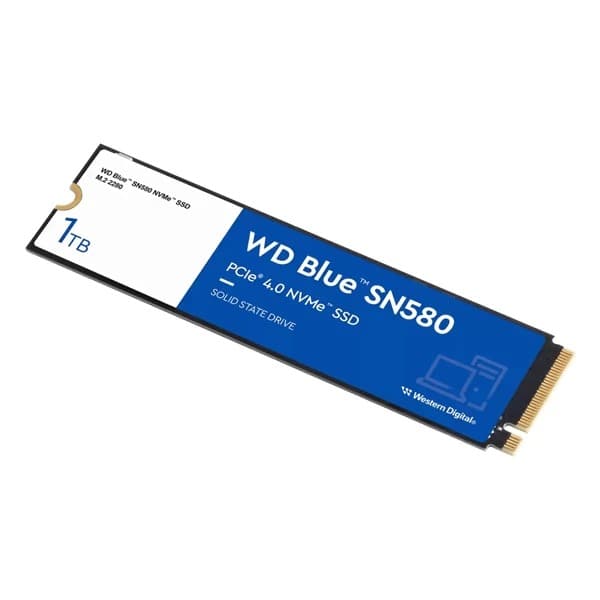

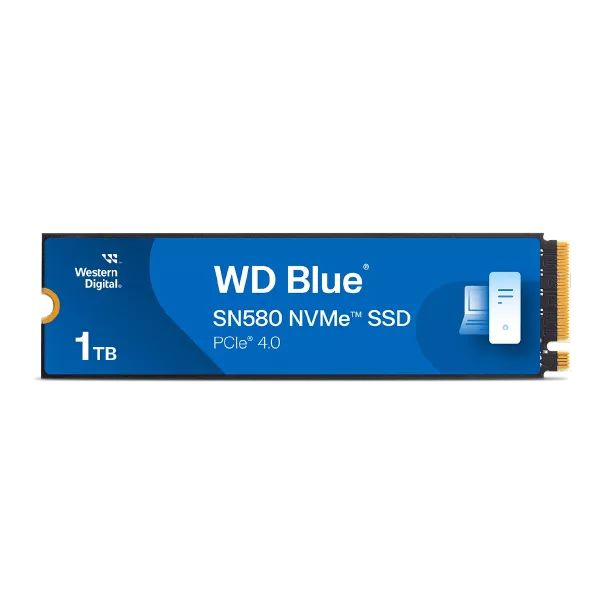

WD Blue SN580 NVMe SSD with PCIe Gen 4.0 for creators and professionals. Boost productivity or design creatives effortlessly by upgrading to PCIe Gen 4.0 SSDs with up to 4,150 MB/s read speeds
Launch applications, load, edit, and publish content with PCIe Gen 4.0 speeds up to 4,150 MB/s2 and fast file copies with nCache™ 4.0 technology.
The WD Blue SN580 NVMe SSD boosts creative workflows, delivering application responsiveness for multiple projects. The low-power design prolongs battery life, so you can keep working or creating when you’re in the zone.
PCIe Gen 4.0 high performance delivers transfer speeds of up to 4,150 MB/s2 to quickly load large digital assets or when publishing your projects.
| Model Number | WDS100T3B0E |
| Interface | PCIe Gen4 NVMe 1.4b |
| NAND Type | WDC TLC |
| Performance | |
| Sequential Read (MB/s) up to (Queues = 32, Threads = 1) | 4,150 |
| Sequential Write (MB/s) up to (Queues = 32, Threads = 1) | 4,150 |
| Random Read 4KB IOPS up to (Queues=32, Threads=16) | 600K |
| Random Write 4KB IOPS up to (Queues=32, Threads=16) | 750K |
| Endurance (TBW) | 600 |
| Power | |
| Average Active Power | 65mW |
| Sleep (PS5) | 3.3mW |
| Reliability | |
| MTTF (hours) | 1.5M |
| Security | TCG Pyrite 2.01; ATA Security Passthrough over NVMe |
| Environmental | |
| Operating Temperatures | 32°F to 185°F (0°C to 85°C) |
| Non-operating Temperatures | -40°F to 185°F (-40°C to 85°C) |
| Operating Vibration | 5.0 gRMS, 10–2000 Hz, 3 axes |
| Non-Operating Vibration | 4.9 gRMS, 7–800 Hz, 3 axes |
| Shock | 1,500G @ 0.5 ms half sine |
| Certifications | BSMI, CAN ICES-3(B)/NMB-3(B), CE, FCC, KCC, Morocco, RCM, TUV, UL, VCCI |
| Physical Dimensions | |
| Form Factor | M.2 2280-S3-M (M key, Single Side Assembly) |
| Length | 80 ± 0.15mm |
| Width | 22 ± 0.15mm |
| Height | 2.38mm |
| Weight | 5.5g ±.5g |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
