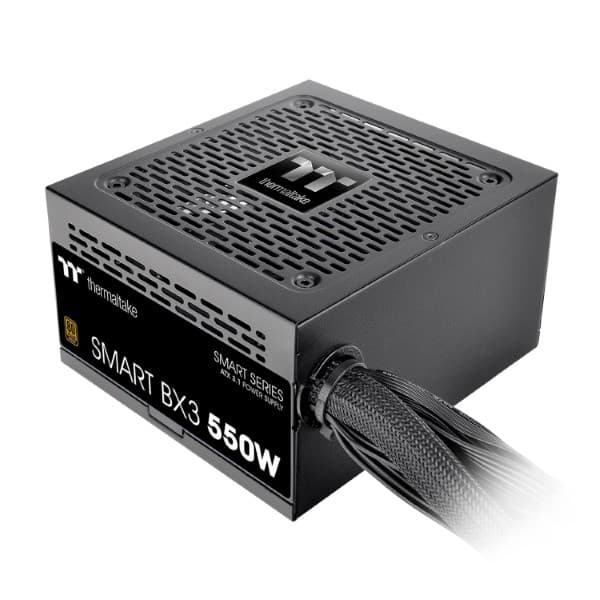

Thermaltake Smart BX3 550W 80 Plus Bronze ATX 3.1 Power Supply
- Comply with Intel ATX 3.1 standard
- 80 PLUS Bronze certified efficiency
- DC to DC design with high quality 105°C/221°F main capacitor
- Complete hardware protection: OCP, OVP, UVP, OPP, SCP, OTP
- 5 year warranty
Original price was: ₹6,999.00.₹3,725.00Current price is: ₹3,725.00.
ATX 3.1 Ready
Smart BX3 series is fully compatible with ATX 3.1 specifications which supports up to 200% power excursion, reaches 60% low load efficiency and complies with required power supply timing standards.
Be Smart, Stay Quiet
Equipped with a 120mm fluid bearing fan for superior airflow. Additionally, the built-in Smart Zero Fan spins only when the load reaches a certain percentage to minimize unwanted noise.
High Quality 105°C/221°F Main Capacitor
High quality main capacitor greatly improves the power supplies durability and ensures the Smart BX3 series is stable and reliable.
High Amperage Single +12V Rail & DC to DC Design
Powerful single +12V rail can properly deliver the power you need for the best compatibility. The use of DC to DC circuit design provides very stable operation and enhanced voltage regulation.
| AC INPUT |
Input Voltage: 100 – 240V~ |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5VSB |
| Max Output Current | 16A | 16A | 45.85A | 0.3A | 3A |
| Max Output Power | 105W | 550W | 3.6W | 15W | |
| Total Power | 550W | ||||
Built-in Industrial Grade Protection
To protect the hardware, Smart BX3 is built with industry grade protections: OCP(Over Current Protection), OVP (Over Voltage Protection), UVP(Under Voltage Protection), OPP(Over Power Protection), SCP(Short Circuit Protection), OTP(Over Temperature Protection).
Non-Modular Flat Cable Design
Smart BX3 series comes with soft black cables, designed to make cable installation an easy task while fully powering the system at optimal voltages.
| Connector Type | Connector Quantity | Cable Quantity | Cable Length | |
|---|---|---|---|---|
| Main Power (24Pin) |
X 1 |  |
X 1 | 600mm |
| ATX 12V (4+4Pin) |
X 1 |  |
X 1 | 650mm+150mm |
| PCIe (6+2Pin) |
X 2 |  |
X 1 | 500mm+150mm |
| SATA (5Pin) |
X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
| Peripheral | X 4 |  |
X 1 | 500mm+150mm +150mm+150mm |
80 PLUS Bronze-Certified and Intel C6/C7 States Ready
Smart BX3 Bronze series saves energy through its high energy efficiency up to 85% and is certified to 80 PLUS® Bronze. It has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.
| P/N | PS-SPD-0550NNFABD-3 |
|---|---|
| watts | 550W |
| Model | SPD-0550AH2NLB-3 |
| Max. Output Capacity | 550W |
| COULEUR | Black |
| Dimension ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (Power Factor Correction) | Active PFC |
| Power Good Signal | 100-150 msec |
| Hold Up Time | > 17msec at 80% load |
| Input Current | 12A-5A |
| Input Frequency Range | 50Hz/60Hz |
| Input Voltage | 100-240V～ |
| Operating Temperature | 5°C to + 45°C |
| Operating Humidity | 20% to 85%,non-condensing |
| Storage Temperature | -40°C to + 55°C |
| Storage Humidity | 10% to 95%, non-condensing |
| Cooling | 12cm FDB Fan |
| Efficiency | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| Safety Approval | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| PCI-E 6+2pin | 2 |
| Smart Zero Fan | Fan will not spin until the load exceeds 20% No physical fan switch |
| Protection | OCP/OVP/UVP/OPP/OTP/SCP |
| Weight | 1 kg |
|---|---|
| Brands | |
| color | |
| Modular | |
| Product Type | |
| PSU Certification | |
| Warranty | |
| Wattage | |
| EAN / UPC Code |
