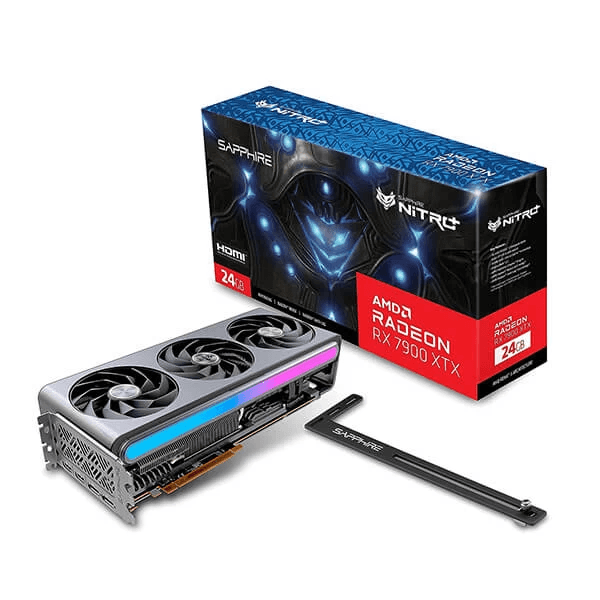

Sapphire Nitro+ RX 7900 XTX Vapor-X OC 24GB Graphics Card
- GPU: Boost Clock: Up to 2680 MHz
- GPU: Game Clock: Up to 2510 MHz
- Memory: 24GB/384 bit DDR6. 20 Gbps Effective
- Stream Processors: 6144
- RDNA™ 3 Architecture
- Ray Accelerator: 96
₹105,989.00
Sapphire Nitro+ Radeon RX 7900 XTX Vapor-X is powered by AMD RDNA Chiplet Technology. The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX
- GPU: Boost Clock: Up to 2680 MHz
- GPU: Game Clock: Up to 2510 MHz
- Memory: 24GB/384 bit DDR6. 20 Gbps Effective
- Stream Processors: 6144
- RDNA™ 3 Architecture
- Ray Accelerator: 96
AMD RDNA™ 3 Architecture
- 24GB of GDDR6 memory
- AMD Radiance Display™ Engine
- DisplayPort™ 2.1
- AMD FidelityFX™ Super Resolution
- AMD Radeon Super Resolution
- 4K and Beyond
Software BIOS Switch
SAPPHIRE NITRO+ Graphics Cards
Backplate
Provides rigidity and helps cool your card by increasing heat dissipation.
Engineered
ARGB
Personalize the look of your NITRO + card with its built-in ARGB.
Outputs
Choose from HDMI and DP slots for a maximum of 4 outputs
Cooling
Innovative cooling technologies to ensure optimal performance and airflow.
Vapor-X Cooling
WAVE Fin Design & V-Shape Fin Design for GPU cooling
The WAVE Fin Design reduces friction when the wind goes into the fin module resulting in a reduction of the wind cut noise.
The V-shape fin design on top of the GPU accelerates and centralizes the air flow around the GPU to dissipate heat efficiently.
Die Casted Aluminum-Magnesium Alloy Frame & Frontplate Heatsink
The Die Casted Aluminum-Magnesium Alloy Frame enveloping the sides of the PCB help to strengthen the structural stiffness of the shroud to create a strong, scratch resistant and high quality finish that elevates the aesthetic and strength of the graphics card. Overlaying the entire PCB, the die casted Frontplate Heatsink cools the VRM, Memory and Chokes resulting in superior heat dissipation for top-notch airflow and cooling performance.
Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitor
High TG Copper PCB
The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.
Tough Metal Backplate
Dedicated VRM Cooling
Angular Velocity Fan Blade
The Angular Velocity Fan Blade provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.
Optimized Composite Heatpipe
The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.
Assistive System Fan Control
Fuse Protection
In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.
OC BIOS
This BIOS has been engineered to the maximum TGP setting for maximized gaming performance
Dual BIOS
Graphics Card Supporter
Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.
Dual ARGB Light Bar
External ARGB Control Sync
Fan Quick Connect
If there’s a fan problem, you don’t have to return the entire card. SAPPHIRE or our channel partners will send out a replacement fan directly to you! That means they’re easy to remove, clean and replace, with just one screw holding them securely in place.
Two-Ball Bearing
These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.
TRI-X COOLING TECHNOLOGY
Boost Clock : Up to 2680 MHz
Game Clock: Up to 2510 MHz
An innovative mixture of Robust VRM Cooling and independent memory thermal modules work in tandem to remove heat efficiently and effectively across all sections
Tunneled fins increase convection airflow and ensure wind continuously flows through the cooling and fan system
AMD RDNA™ 3
| Model | 11322-01-40G |
| Chipset | AMD Radeon |
| GPU | RX 7900 XTX |
| PCI Express | 4.0 |
| GPU Boost Clock | 2680 MHz |
| Memory Clock | 20 Gbps |
| Memory Size | 24 GB |
| Memory Interface | 384 Bit |
| Memory Type | GDDR6 |
| Direct X Support | 12 Ultimate |
| Open GL | 4.6 |
| Ports |
|
| Resolution | 7680 x 4320 |
| Software | Driver & Software |
| Package Content | Graphics Card, User Manual |
| Power Connectors | 3 x 8 Pin |
| Warranty | 3 Years |
| Note** | ***Features, Price and Specifications are subject to change without notice. |
| Weight | 1 kg |
|---|---|
| Product Type | |
| color | |
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Max GPU Boost Clock | |
| Memory Bus | |
| Memory Series | |
| Warranty | |
| EAN / UPC Code |
