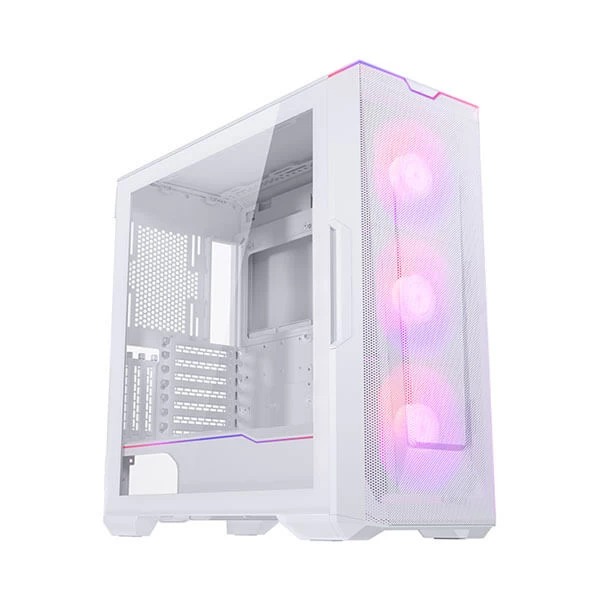

Phanteks Eclipse G500A DRGB (E-ATX) Mid Tower Cabinet (White)
- High airflow gaming chassis with Ultra-fine Performance Mesh on front and top that combines high airflow performance with excellent dust filtration.
- Integrated D-RGB lighting on the front and side that is easy to control and can be expanded and/or synced to a D-RGB equipped motherboard.
- Three high performance M25-140 D-RGB fans included.
- Ready for high-end cooling with up to 420 radiator support in front, 360 in the top, full-length GPUs and vertical GPU ready with the optional Vertical GPU Bracket.
₹15,320.00
Phanteks Eclipse G500A DRGB (E-ATX) Mid Tower Cabinet (White)
Feature
The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
The integrated D-RGB lighting can be easily connected to a A/D-RGB equipped motherboards and expanded with more D-RGB products. The G500A Base comes with 2 LED strips built into the front and side pre-installed.
High airflow design
Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. The Ultra-fine Performance Mesh lowers flow restriction while being easy to clean.
Extensive radiator support
With its spacious interior, the G500A is ready for powerful gaming setups. Offering up to 420 radiators in the front, 360 radiators in the top, while having plenty of space for full-length GPUs to unlock next-gen hardware performance.
Clean cable management and flexible storage options
The G500A provides plenty of Velcro ties to tie down all cables with cover doors to keep everything clean and convenient. In addition to the 3x dedicated SSD brackets, the cover doors also offer space for 3x SSDs each to offer more flexibility. Two Stackable HDD bays are included and can be further upgraded up to a total of 10 HDD bays.
ABOUT US
We strive to develop top-quality and superior products, this is why we are continuously pursuing excellence in developing new products to bring satisfaction to PC enthusiasts and computer users.
ECLIPSE G500A D-RGB WHITE
High-performance premium mid-tower
The Eclipse G500A is a premium mid-tower case that combines high airflow performance with style. It features the Ultra-fine Performance mesh front panel for optimal airflow with effective dust filtration. With a rich feature set and a flexible interior, it’s the perfect chassis for people demanding more than the standard mainstream with options for future expansion. The G500A delivers quality and performance with exceptional value and high-end capabilities.
- 3x M25 140 mm D-RGB fans included
- Built-in D-RGB STRIPS in the side and front
- D-RGB CONTROLLER for easy mode and color control
|
|
|
|
|---|---|---|
REMOVABLE FRONT BRACKETcomfortable FAN & RADIATOR installation on the removable front bracket |
REMOVABLE TOP BRACKET
|
NEW CLEAN DESIGN STYLECompletely UPDATED & REFRESHED exterior and interior |
|
|
|
|
|---|---|---|
HIGH-END COOLING
|
MULTIPLE STORAGE OPTIONS
|
EXTENSIVE FRONT I/O
|
| Model Name | Eclipse G500A White |
| Model No. | PH-EC500GA-DMW01A |
| Case Dimention | 500 x 240 x 515 mm/ 19.7 x 9.4 x 20.3 in |
| Form Factor | Mid Tower |
| Materials | Steel Chessis,Tempered Glass |
| MotherBoard Support | E-ATX(up to 280mm wide), ATX, micro-ATX, mini-ITX |
| Front IO |
|
| Connectors |
|
| Side Window | Tempered Glass Side Panel |
| PCle Slots | 7 |
| Vertical GPU | Yes, With Optional Vertical GPU Bracket |
| Internal 3.5'' bay | 10(2xincluded) |
| Internal 2.5'' bay | 9(2xincluded) |
| Total Fan Mounts | 7x 120mm/ 7 x 140mm |
| Front Fan | 3 x 120mm/ 3 x 140mm(3x140mm D-RGB included) |
| Top Fan | 3 x 120mm/ 3 x 140mm |
| Rear Fan | 1 x 120mm/1 x 140mm |
| Included Fans | 3 x M25-140 PWM D-RGB White |
| Front Radiator | up to 360mm/ up to 420 mm |
| Top Radiator | up to 360mm/ up to 280 mm |
| Rear Radiator | 120 |
| GPU Length | 435mm/17.2in |
| CPU Cooler Height | 185mm/7.3in |
| PSU | 195 mm or 250 mm(4 HDD brackets/2 HDD brackets used) |
| Front Panel fan thickness | 33mm for fan or radiator |
| Front 360 radiator thickness | 90mm thickness |
| Front 420 radiator | Maximum size: 142 x 475 x 90 mm |
| Top 360 radiator thickness | 70mm thickness |
| Package Dimension | 325 x 610 x 610 mm |
| Net Weight | 10.53 /10.68 KG |
| Gross Weight | 12.70 / 12.85 KG |
| Warranty | 5 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
