SKU: RF-U36HF-W1
users viewing this item right now
NZXT F Series RGB Core single-frame fans seamlessly integrate multiple fans for effortless installation while offering superior cooling, whisper-quiet performance, and striking RGB visuals.
Single-frame unit with integrated fans streamlines installation, setup, and lighting control.

Simply connect a single cable to an NZXT controller (sold separately) for lighting and speed control via NZXT CAM software. Or, connect to any motherboard's 5V ARGB header using the included splitter cable.

Blade design boosts static pressure to push air through tight spaces with superior airflow.

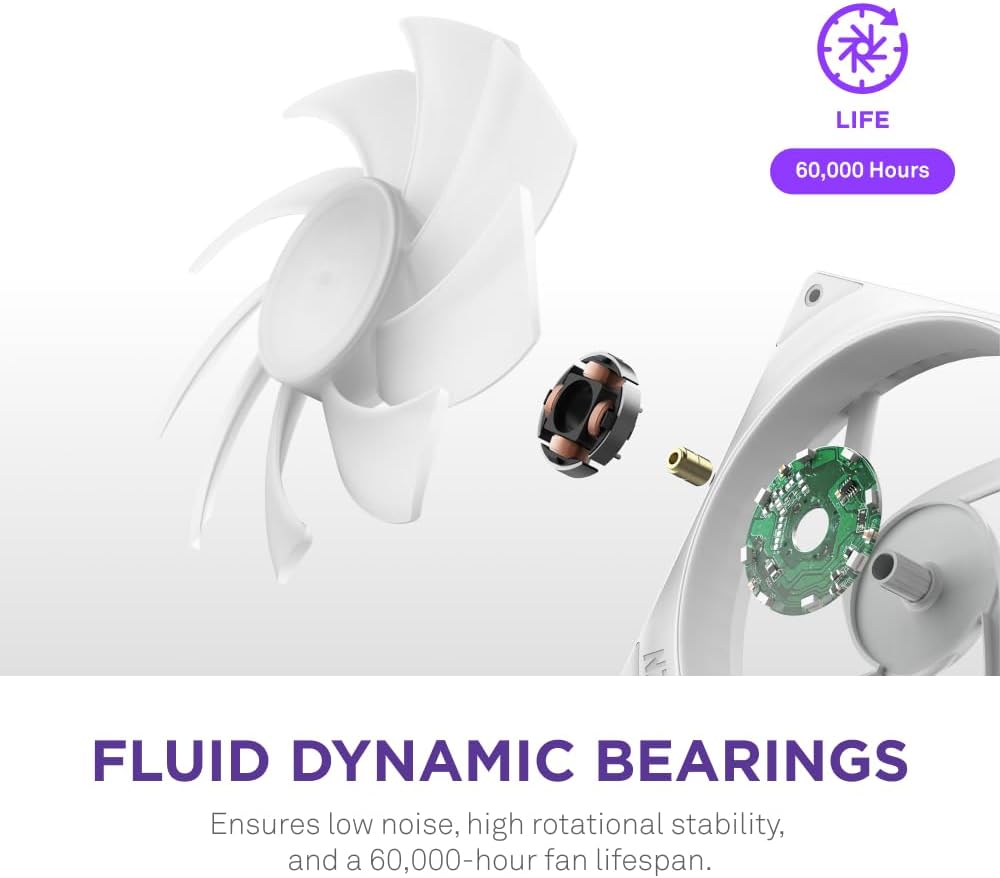

Ensures low noise, high rotational stability, and a 60,000-hour fan lifespan.

8 aRGB LEDs per fan hub shine through semi-translucent blades and frame side windows.

Dynamically adjusts fan speeds based on PC temperatures for optimal efficiency*.
*Requires PWM connection to motherboard or controller (sold separately)

Anti-vibration rubber corners daampen noise and Zero RPM Mode* shuts fans off during light loads.
*Requires an NZXT controller or NZXT motherboard, each sold separately.

Control fan speeds, personalize lighting effects, and sync with other NZXT products*.
*Requires an NZXT controller or NZXT motherboard, each sold separately.
| Dimensions | |
| Height | 280mm |
| Width | 120mm |
| Depth | 26mm |
| Fans | |
| Speed | 500 – 2,000 ± 250 RPM per fan |
| Airflow | 75.12 CFM per fan |
| Static Pressure | 3.3 mm H₂O per fan |
| Noise | 30.00 dBA per fan |
| Power Consumption | 12V DC, 0.79A, 9.48W / 5V DC, 0.81A, 4.05W |
| Bearing | Fluid Dynamic Bearing |
| Output LED | 8 LEDs per Fan |
| Connector | 8-pin for PWM & RGB |
| Cable Length | 1 x 600 mm |
| Material | Plastic, Rubber, PCB |
| Life | 60,000 Hours |
| Cable | |
| Splitter Cable Connections & Cable Length | 4-pin PWM Fan Cable (1 x 300 mm) / 5V RGB & 4-pin NZXT RGB Cable (1 x 100 mm) |
| Warranty | 5 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
