SKU: PA-7G1BB-IN
users viewing this item right now


![]() | ![]() | ![]() | ![]() |
|---|---|---|---|

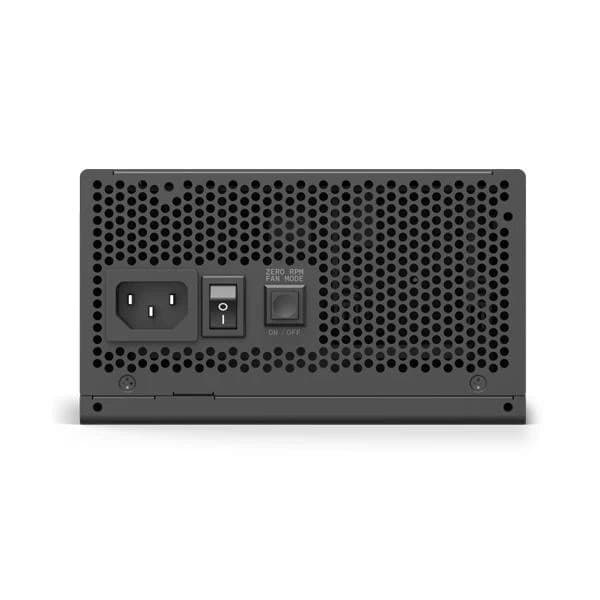

OPERATION GHOSTNZXT C750 has A push of a button enables Zero RPM Fan mode, silencing the fan under low-load conditions | FULLY MODULARNzxt C750 has Modular design lets you use only the cables you need, ensuring easier installation and less clutter. | SLEEVED CABLESThe sleeved main cables look great and resist heat damage as well as fraying, delivering greater durability and longevity | BUILD TO CONFORMThe Nzxt C750 of PSU lineup is designed to conform to ATX standards and will fit in any modern case out there. |

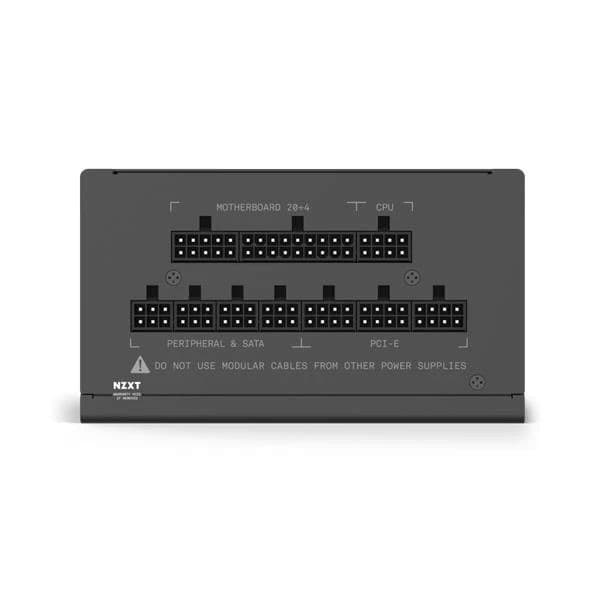

| OUTPUT CONNECTORS | 24-pin ATX power: 1 4+4-pin CPU power: 2 6+2-pin PCIe power: 6 SATA power: 6 Peripherals: 6 |
| CABLE SPECS | 24-pin ATX power: 600 mm, Nylon sleeving 4+4-pin CPU power: 700 mm, Nylon sleeving 6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving SATA power: 500 + 150 mm Peripherals: 500 + 150 mm |
| AC INPUT RATING | 100 - 240Vac: 10A-5A 50Hz-60Hz |
| DC OUTPUT RATING | +3.3V and +5V: 22A (120W) +12V: 62.5A (850W) -12V: 0.3A (3.6W) 5Vsb: 3A (15W) Total: 750W |
| OPERATION | PF Correction: Active @0.96 MTBF:100,000 hours Temperature: 0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C) |
| ENERGY EFFICIENCY | Rating: 80 Plus Gold 20% loading: 87% @115Vac 50% loading: 90.5% @115Vac 100% loading: 87.5% @115Vac |
| Fan Specs | Dimensions: 135 x 135 x 25 mm Speed: 0-2300 ± 10% RPM Airflow: 93.02 CFM (Tpy.) Noise: 44.5 dBA max Bearing: Fluid Dynamic Bearing (FDB) |
| GENERAL | Dimensions: 150 x 150 x 86mm Material(s): Steel, PCB and Plastic Compliance Standard: ATX12V v2.52 / EPS12V v2.92 Regulation & Certification: cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA Model Number: PA-7G1BB-IN |
| Warranty | 10 years |
| Note* | Price, feature and specifications are subject to change without notice. |
