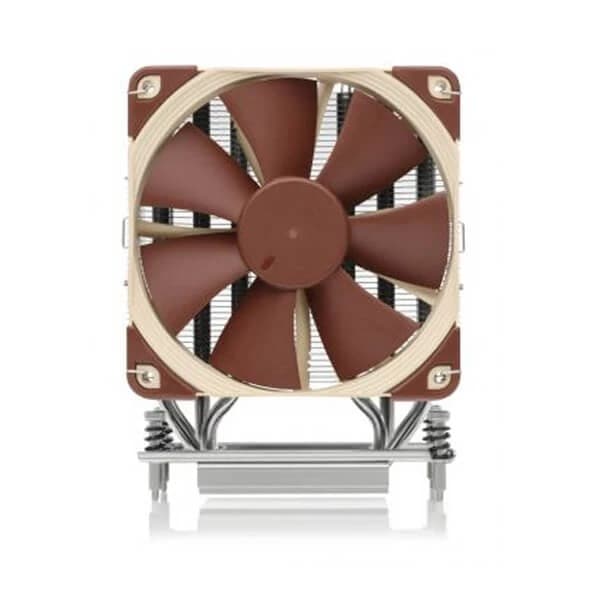

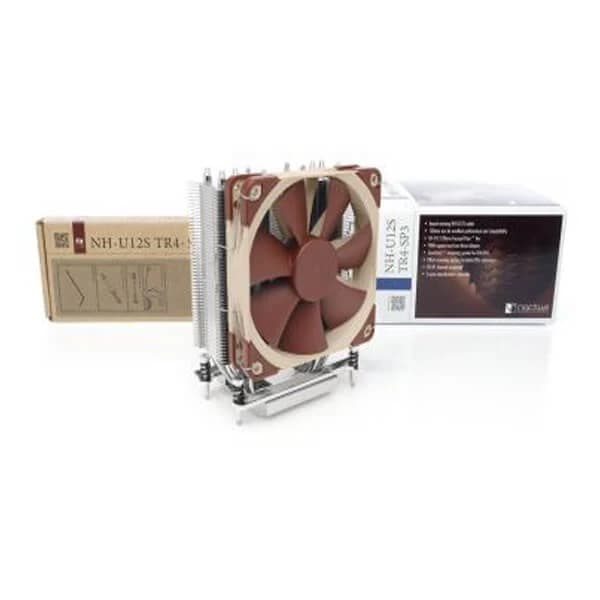

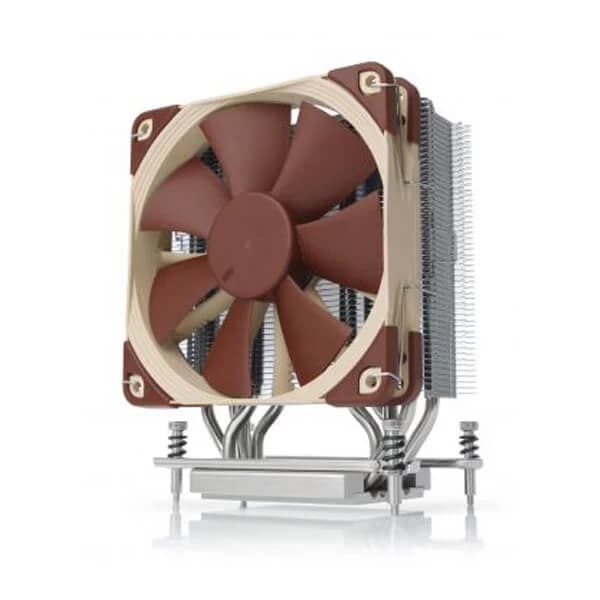

Noctua NH-U12S TR4-SP3 120mm CPU Air Cooler
- NF-F12 PWM premium fan
- NA-RC6 Low-Noise Adaptor (L.N.A)
- NT-H1 high-grade thermal compound
- SecuFirm2 sTRX4/TR4/SP3 mounting kit
- Anti-vibration pads and fan-clips for second NF-F12
- Noctua metal case-badge
Original price was: ₹12,000.00.₹7,349.00Current price is: ₹7,349.00.
Feature
Continuing the legacy of Noctua’s classic NH-U-series, which has received more than a thousand awards and recommendations from international hardware websites and magazines, the NH-U14S has become a benchmark for high-end 140mm single tower coolers. The TR4-SP3 version is a tailored custom model for AMD’ssTRX4/sWRX8/TR4/SP3 platform (Ryzen Threadripper / Epyc) and features a larger contact surface as well as the latest SecuFirm2 mounting system for socket sTRX4/sWRX8/TR4/SP3. Topped off with the renowned quiet NF-A15 PWM 140mm fan and Noctua’s proven NT-H1 thermal compound, the NH-U14S TR4-SP3 forms a complete premium-quality solution that combines maximum performance and superb acoustics for enthusiast-grade sTRX4/sWRX8/TR4/SP3 systems.
120mm size for excellent performance and compatibility
With five heatpipes and the powerful NF-F12 120mm fan, the NH-U12S achieves outstanding cooling performance while maintaining excellent compatibility: At 158mm height and 125mm width, it is short enough to fit most modern tower cases and stays clear of the top PCIe slot on most motherboards.

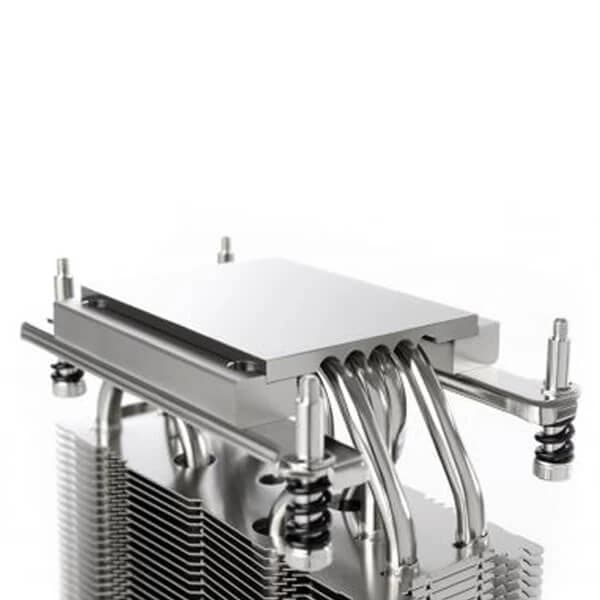

SecuFirm2 mounting system for sTRX4/TR4/SP3
Noctua’s SecuFirm2 mounting systems have become synonymous with quality, safety and ease of use. The TR4-SP3 variant has been completely custom-designed for the new socket and is particularly easy to install: Put on the heatsink, fix the four spring-loaded screws and you’re done!
Offset mounting options for better PCIe clearance
In order to assure optimal compatibility with SLI and CrossFire multi-GPU setups, the SecuFirm2 mounting for sTRX4/sWRX8/TR4/SP3 makes it possible to offset the cooler by 3 or 6mm towards the upper edge of the motherboard, thereby increasing clearance of the top PCIe slot.
NF-F12 120mm Focused Flow fan
Recommended by more than 150 hardware publications and thousands of enthusiasts world-wide, the Noctua’s premium quality NF-F12 Focused Flow 120mm fan is renowned to combine superb static pressure, excellent heatsink performance and surprising quietness of operation.
Tailored custom version for sTRX4/TR4/SP3 (Ryzen Threadripper / Epyc)
Please note that the NH-U12S TR4-SP3 is a dedicated version for the AMD sTRX4/sWRX8/TR4/SP3 socket. Due to its customised larger base, it cannot be used on any other sockets and is incompatible with Noctua’s standard mounting kits.
| Cooler Specification | |
| Socket compatibility | AMD sTRX4, sWRX8, TR4, SP3 |
| Height (without fan) | 158 mm |
| Width (without fan) | 125 mm |
| Depth (without fan) | 45 mm |
| Weight (without fan) | 695 g |
| Height (with fan) | 158 mm |
| Width (with fan) | 125 mm |
| Depth (with fan) | 71 mm |
| Weight (with fan) | 870 g |
| Material | Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating |
| NSPR | 129 |
| Fan compatibility | 120x120x25 |
| Scope of delivery | NF-F12 PWM premium fan Low-Noise Adaptor (L.N.A.) NT-H1 high-grade thermal compound SecuFirm2™ sTRX4/TR4/SP3 mounting-kit Anti-vibration pads and fan-clips for second NF-F12 Noctua metal case-badge |
| Warranty | 6 Years |
| FAN Specification | |
| Model | Noctua NF-F12 PWM |
| Bearing | SSO2 |
| Max. rotational speed (+/- 10%) | 1500 RPM |
| Max. rotational speed with L.N.A. (+/- 10%) | 1200 RPM |
| Min. rotational speed @ 20% PWM (+/-20%) | 300 RPM |
| Max. airflow | 93,4 m³/h |
| Max. airflow with L.N.A. | 74,3 m³/h |
| Max. acoustical noise | 22,4 dB(A) |
| Max. acoustical noise with L.N.A. | 18,6 dB(A) |
| Input power (max.) | 0,6 W |
| Voltage range | 12 V |
| MTTF | > 150.000 h |
| Note | *** Features, Price, Specifications are subject to change without notice. |
