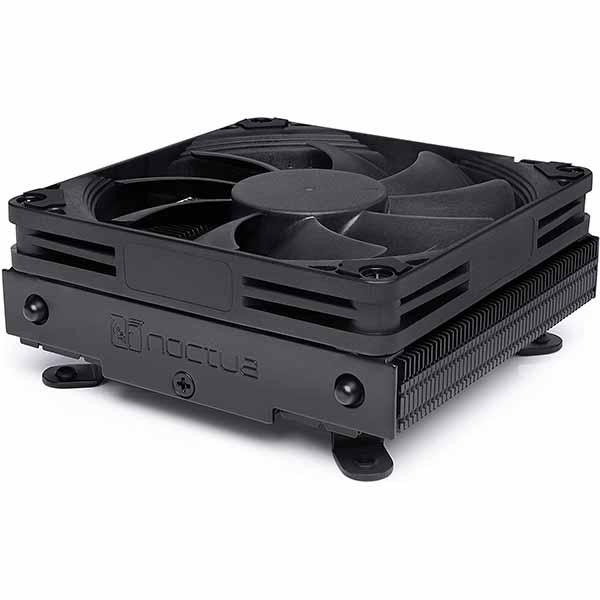

Noctua NH-L9I Chromax Black CPU Air Cooler

The Noctua NH-L9I Chromax Black is a Compact and Low Profile CPU Air Cooler, IT Comes with a 95mm NF-A9X PWM Fan with Automatic Speed Control upto 2500 RPM, a Low Noise Adapter and Noctua NT-H1 Thermal Paste.

Features

The NH-L9i chromax.black is an all-black version of Noctua’s award-winning NH-L9i low-profile quiet CPU cooler for HTPCs and Small Form Factor (SFF) builds. Thanks to the same proven heatsink design and NF-A9x14 PWM fan, it stays true to the NH-L9i’s successful formula of fusing a height of only 37mm with strong performance and excellent quietness of operation, as well as 100% RAM and PCIe compatibility. At the same time, the chromax.black version with its black fan and black coated heatsink combines these assets with a sleek stealth look. Topped off with the renowned SecuFirm2 low-profile mounting system for Intel LGA115x and Noctua’s enthusiast-grade NT-H1 thermal compound, the NH-L9i chromax.black is a premium choice for customers who seek an ultra-compact heatsink that looks just as great as it cools.

37mm low profile Due to the slim 23mm heatsink and the NF-A9x14 low-profile fan that measures only 14mm in thickness, the NH-L9 stands a mere 37mm tall, which makes it ideal for use in compact HTPCs or Small Form Factor cases that offer minimum clearance for CPU coolers.	100% RAM compatibility The NH-L9i has a 95x95mm footprint that complies exactly with the Intel LGA115x socket keep-out zone. This means that it won't cause issues with chipset coolers and doesn't overhang the RAM slots, so it's fully compatible with tall memory modules.	100% compatibility with PCIe cards on mini-ITX Most Intel LGA115x based mini-ITX motherboards have the PCIe slot sitting right next to the 95x95mm socket zone. While larger coolers that exceed this zone are likely to block the PCIe slot, the 95x95xmm sized NH-L9i provides full compatibility with PCIe cards.	Optional SecuFirm2 mounting kit for AMD AM4 While the NH-L9i’s construction is tailored to the keep-out zone of Intel’s LGA115x platform, it can be installed on many AMD AM4 boards using the optional NM-AM4-L9aL9i mounting kit, which can be ordered on Noctua’s website free of charge.

Cooler Specifications

Please Note:

The NH-L9i is a highly compact low-profile quiet cooler designed for use in small form factor cases and HTPC environments. It is not suitable for overclocking and should be used with care on CPUs with more than 65W TDP. Please consult our CPU compatibility list and TDP guidelines to find out whether the NH-L9i is recommended for your CPU.

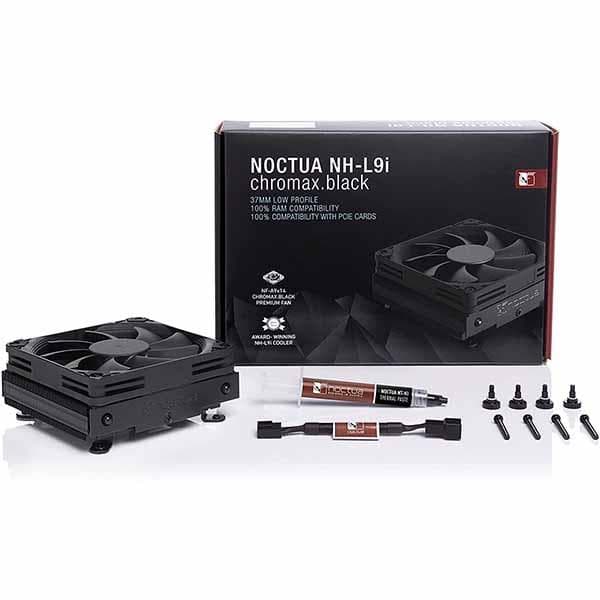

Scope of delivery

• NF-A9x14 PWM chromax.black premium fan
• Low-Noise Adaptor (L.N.A.)
• NT-H1 high-grade thermal compound
• Black SecuFirm2 mounting kit
• Black crews for 92x92x25mm fans
• Noctua metal case-badge

Materials

Copper (base and heat-pipes), aluminium (cooling fins), soldered joints & nickel plating

Measurements

• Height (without fan) 23 mm
• Width (without fan) 95 mm
• Depth (without fan) 95 mm
• Height (with fan) 37 mm
• Width (with fan) 95 mm
• Depth (with fan) 95 mm
• Weight (without fan) 345 g
• Weight (with fan) 420 g

chromax.black design

The NH-L9i chromax.black is black from head to toe: Featuring a black coated heatsink, a black fan with black anti-vibration-pads, black fan screws and black mounting parts, it’s right at home in all-black builds and easy to integrate with other colour schemes.

6-year manufacturer’s warranty

Noctua products are renowned for their impeccable quality and outstanding longevity. Like all Noctua fans, the supplied NF-A9x14 features an MTTF rating of more than 150.000 hours and the entire NH-L9i package comes with a full 6-year manufacturer's warranty.
