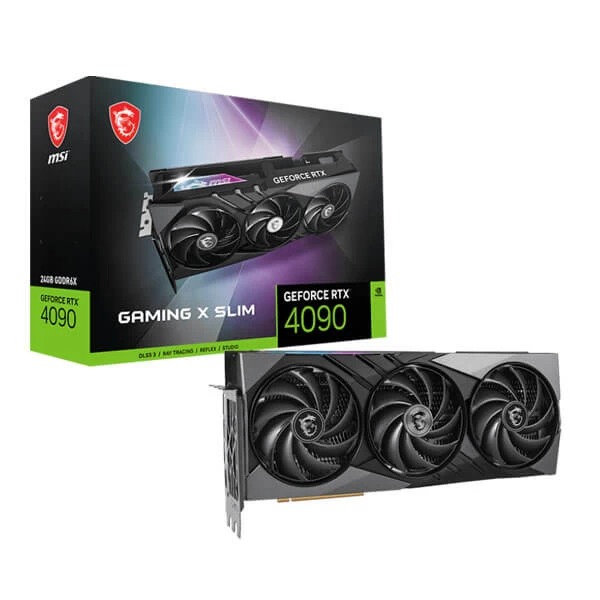

MSI RTX 4090 Gaming X Slim 24GB GDDR6X Graphics Card

MSI RTX 4090 Gaming X Slim 24GB GDDR6X Graphics Card

Feature

WITH DLSS 3

The NVIDIA® GeForce RTX™ 4090 is the ultimate GeForce GPU. It brings an enormous leap in performance, efficiency, and AI-powered graphics with DLSS 3. Experience ultra-high performance gaming, incredibly detailed virtual worlds with ray tracing, unprecedented productivity, and new ways to create. It’s powered by the NVIDIA Ada Lovelace architecture and comes with 24 GB of G6X memory to deliver the ultimate experience for gamers and creators.

Boost Clock / Memory Speed

• 2595 MHz (GAMING & SILENT Mode) / 21 Gbps
• 24GB GDDR6X
• DisplayPort x 2 (v1.4a) HDMI™ x 2 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1a)

TRI FROZR 3 Thermal Design

• TORX Fan 5.0: Fan blades linked by ring arcs and a fan cowl work together to stabilize and maintain high-pressure airflow.
• Copper Baseplate: Heat from the GPU and memory modules is captured by a copper baseplate and then rapidly transferred to Core Pipes.
• Core Pipe: A section of square-shape heat pipes make maximum contact over the GPU, then spread the heat to the heatsink.
• Airflow Control: Don’t sweat it, Airflow Control guides the air to exactly where it needs to be for maximum cooling.

Dual BIOS

• Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Afterburner

• Take full control with the most recognized and widely used graphics card overclocking software in the world.

MSI Center

• The exclusive MSI Center software lets you monitor, tweak and optimize MSI products in real-time.

• GeForce RTX 4090 GAMING X SLIM 24G, 16384 CUDA Cores, 24GB GDDR6X, 384-bit Memory Bus, Chipset: GeForce RTX 4090
• 2610 MHz Base, 2595 MHz Boost, 21Gbps Memory Clock
• DisplayPort x 2 (v1.4a) HDMI x 2 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI 2.1a)
• Minimum System Power Requirement (W) : 850 ; Power Connectors : 16-pin x 1
• Graphics Card Dimensions: 322 x 136 x 62 mm

Gaming Unbound

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.

HASSLE-FREE COMPATIBILITY

Lightened design is made for those building a gaming rig with space constraints.

*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.

Powered by GeForce RTX 40 Series and DLSS 3

The Ultimate Platform for Gamers and Creators

Cutting-Edge GPUs

NVIDIA Ada Lovelace architecture

Realistic and Immersive Graphics

Dedicated Ray Tracing Cores

AI-Accelerated Performance

NVIDIA DLSS 3

Game-Winning Responsiveness

NVIDIA Reflex low-latency platform

Built for Live Streaming

NVIDIA Encoder

AI-Enhanced Voice and Video

NVIDIA Broadcast app

Fast-Track Your Creativity

NVIDIA Studio

Performance and Reliability

Game Ready and Studio Drivers

STRENGTH AND MASTERY

Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.

TRI FROZR 3 THERMAL DESIGN

Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

dissipation all around the graphics card.

TORX FAN 5.0

TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.

AIRFLOW CONTROL

Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.

ELEVATED DETAILS

Take a closer look at the other thermal solution features that help to control temperatures and the noise level.

UNRESTRICTED COOLING

A large airflow vent on the backplate allows exhaust air to pass through directly.

DOUBLE BALL BEARING

Two sets of durable ball bearings spin the TORX FANs for years of intense and lengthy gaming sessions.

ZERO FROZR

The fans completely stop when temperatures are relatively low, eliminating all noise.

HARDENING EVERY DETAIL

DrMos

DrMOS power stage solutions provide great efficiency with low power loss and enhanced voltage controls.

Dual BIOS

Dual BIOS gives you the choice to prioritize full performance in GAMING mode or low noise in SILENT mode.

Effective Thermal Padding

An abundance of clay-based thermal pads provide additional heat dissipation for board components.

Hardened Defenses

Additional fuses built into the custom PCB provide additional safeguards against electrical damage.

*All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate.
