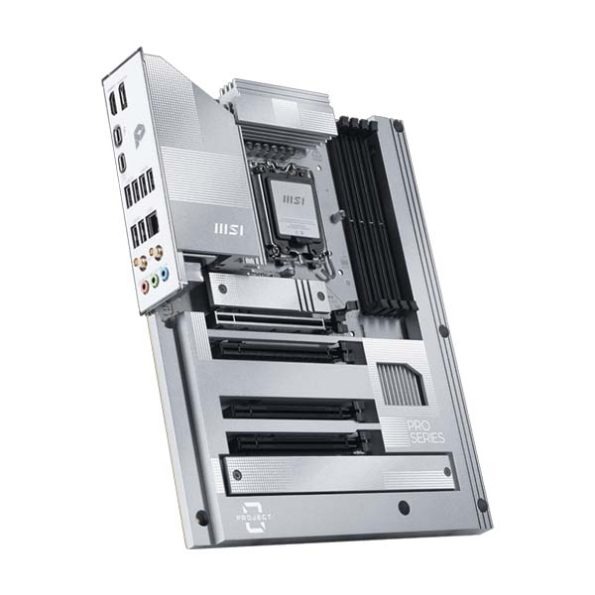

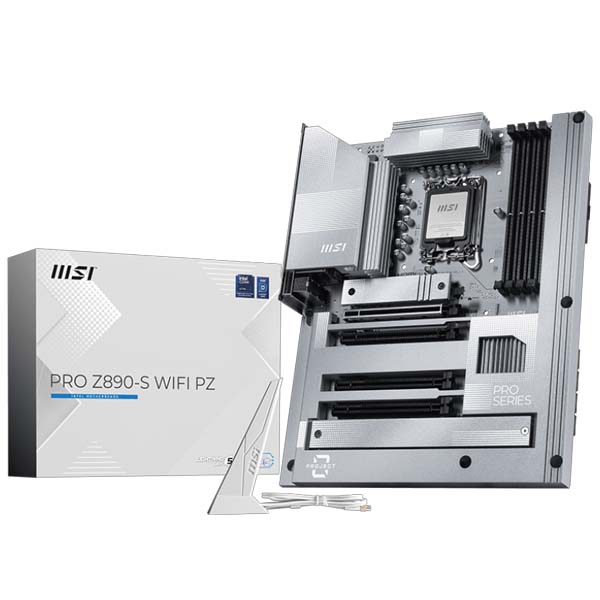

MSI PRO Z890-S WIFI PZ LGA 1851 ATX Motherboard (White)

MSI PRO Z890-S WIFI PZ LGA 1851 Intel Z890 SATA 6Gb/s 243.84mmx304.8mm (280) Motherboards - Intel

Feature

• Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
• Supports DDR5 Memory, Dual Channel DDR5 8800+ MT/s (OC)
• Enhanced Power Design: 12+1+1+1 Duet Rail Power System with P-PAK , dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer server-grade PCB
• Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop experience
• EZ DIY: EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
• Lightning Fast Game experience: PCIe 5.0 slot and Lightning Gen 5 x4 M.2
• Thunderbolt™ 4: brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant
• 2.5G LAN with Intel Wi-Fi 7 Solution: upgraded network solution for professional and multimedia use, delivering secure, stable, and high-speed networking
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience

Business Elegance

The PRO Z890-S WIFI PZ is a creation-oriented ATX motherboard, featuring the back-connect design, which allows for a cleaner front view and easier cable management. With a 12 Duet Rail Power System, the PRO Z890-S WIFI PZ is constructed around the latest Intel Z890 chipset which supports Intel Core Ultra Processors (Series 2), featuring PCIe 5.0, 2.5G LAN, Wi-Fi 7, DDR5 and Frozr design that delivers the capacity to support a broad spectrum of both cutting-edge and innovative hardware.

Cleaner Front View

The MSI PRO Z890-S WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.

Back-Connect Design

Back-Connect Design: Moving the connectors to the back not only keeps the front clean but also makes connector access easier and more effortless. Easy cable management: Eliminate the step of routing the cables from front to back to lower the difficulty of cable management.

Supports Intel Core Ultra Processors (Series 2)

The PRO Z890-S WIFI PZ motherboard supports Intel Core Ultra Processors (Series 2).

• Form Factor: Back-connect ATX*
• Socket Type: LGA 1851
• Chipset: Intel Z890

* Requires a compatible case.

Ultra Power - 12 Duet Rail Power System with P-PAK

With exclusive Core Boost technology and EZ OC Tuning functions, the PRO Z890-S WIFI PZ is able to sustain heavy CPU power loads to support system-demanding game settings:

• Digital PWM IC
• 12 Duet Rail Power System (P-PAK)
• 1-Phase SA Power
• 1-Phase GT Power
• 1-Phase VNNAON Power

Frozr Design

• Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and M.2 Shield Frozr for improved thermal dissipation.
• Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
• Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.

4 x DDR5 Dual Channel (8600+ MT/s OC)*

• Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
• XMP Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.

* 1DPC 1R Max. overclocking frequency 8600+ MT/s, supports Intel XMP.

Fortified PCIe 5.0 x16 Slot

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.

• 1 x PCIe 5.0/4.0/3.0 x16 slot* (with Steel Armor**)
• 2 x PCIe 4.0/3.0 x16 slots*
• 1 x PCIe 3.0 x1 slot

* Support x16/x4/x4

** MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen5 M.2 Connector

The PRO Z890-S WIFI PZ motherboard features MSI's M.2 slots:

• 1 x Gen5 x4 128Gbps slot*
• 2 x Gen4 x4 64Gbps slots*

* With M.2 Shield Frozr

EZ DIY

The DIY Friendly designs optimize the assemble process and experience. EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces. EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws. EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.

High-speed Connectivity

• 2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience.
• Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
• Thunderbolt 4 Type-C: Connect to devices and transfer files at high bandwidth rates: 40Gbps, with 8K display support*.

* Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
