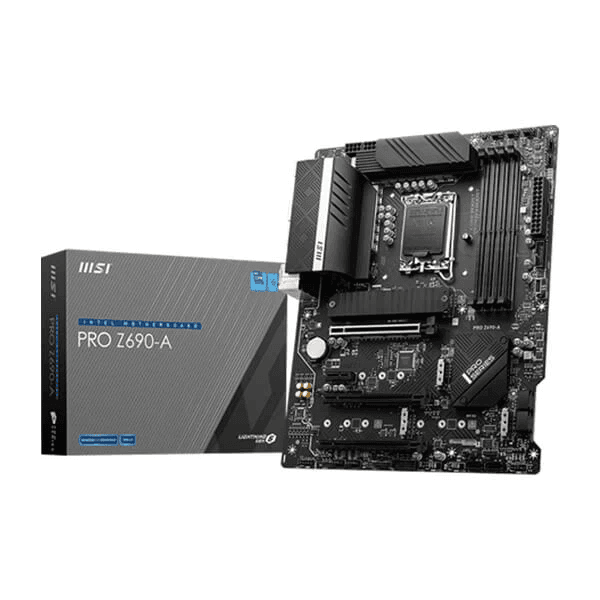

MSI PRO Z690-A DDR5 Pro Series Intel Motherboard
- Z690-A DDR5 Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
₹18,399.00
Out of stock
Email when stock available
MSI PRO Z690-A DDR5 Pro Series Intel Motherboard
Features:
MSI PRO Z690-A DDR5
- Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1700 socket
- Supports DDR5 Memory, up to 6400+(OC) MHz
- Lightning Fast Experience: PCIe 5.0 slots, Lightning Gen4 x4 M.2, USB 3.2 Gen 2×2
- Premium Thermal Solution: Extended Heatsink Design, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop works
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- Audio Boost: Reward your ears with studio grade sound quality
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Multi-GPU: With Steel armor PCI-E slots. Supports AMD Crossfire™
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
FULLY CONTROLLABLE IN BIOS AND SOFTWARE
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans. Total Fan Control allows you check your primary system characteristics in a simplified graphical interface. You can also set up to 4 temperature targets for CPU and motherboard, which will adjust the fan speeds automatically.
AUTODETECT DC OR PWM MODE WITH HYSTERESIS
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
MSI:
- Smooth fan speeds
- Smooth sound levels
OTHERS:
- Spiking fan speeds
- Annoying sound levels
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
OPTIMIZE NETWORK FOR LOWER LATENCY!
MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.
MSI LAN MANAGER
- – Allows you to change applications’ traffic priority –
- – Allows you to customize bandwidth for each application –
14 + 1 +1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 14 digital CPU power phases. Combining 2x 8-pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
| Processor | Supports 12th Gen Intel® Core™ , Pentium® Gold and Celeron® Processors Processor socket LGA1700 Please go to msi.com to get the newest support status as new processors are released. |
| Chipset | Intel® Z690 Chipset |
| Memory | 4x DDR5 memory slots, supporting up to 128GB 1 Supports 1R 4800 MHz (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ MHz 1DPC 2R Max speed up to 5400+ MHz 2DPC 1R Max speed up to 4000+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Intel® XMP 3.0 OC Supports Dual Controller Dual-Channel mode Supports non-ECC, un-buffered memory Please refer to msi.com for more information on compatible memory |
| Expansion Slot | 3x PCIe x16 slots PCI_E1 (from CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 (from Z690 chipset) Supports up to PCIe 3.0 x4 & 3.0 x1 1x PCIe 3.0 x1 slot (from Z690 chipset) |
| Onboard Graphics | 1x HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Multi-GPU | Supports AMD® CrossFire™ Technology |
| Storage | 6x SATA 6Gb/s ports (from Z690 chipset) 4x M.2 slots (Key M) M2_1 slot (from CPU) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (from Z690 chipset) Supports PCIe 3.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (from Z690 chipset) Supports PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready for M.2 slots that are from Z690 Chipset Support Intel® Smart Response Technology for Intel Core™ processors |
| RAID | Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices |
| USB | Intel® Z690 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C internal connector and 1 Type-A port on the back panel) 6x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 4 ports are available through the internal USB connectors) 4x USB 2.0 Type-A ports on the back panel USB Hub GL850G 4x USB 2.0 ports are available through the internal USB connectors |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| LAN | 1x Intel® I225-V 2.5Gbps LAN |
| Internal connectors | 1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 2x USB 3.2 Gen 1 5Gbps connectors (supports additional 4 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Tuning controller connector 1x TBT connector (Supports RTD3) |
| LED Feature | 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 4x EZ Debug LED |
| Back panel ports | Keyboard / Mouse DisplayPort USB 2.0 LAN port Audio connector Flash BIOS Button USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 2x2 20Gbps Type-C USB 3.2 Gen 2 10Gbps Type-A |
| Dimensions | ATX Form Factor 12 in. x 9.6 in. (30.5 cm x 24.4 cm) |
| Mounting | 9 mounting holes |
| Operating System | Support for Windows® 11 64-bit, Windows® 10 64-bit |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
