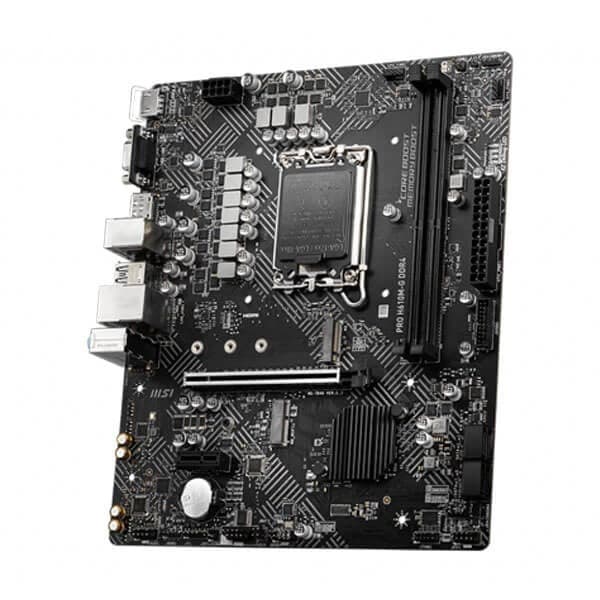

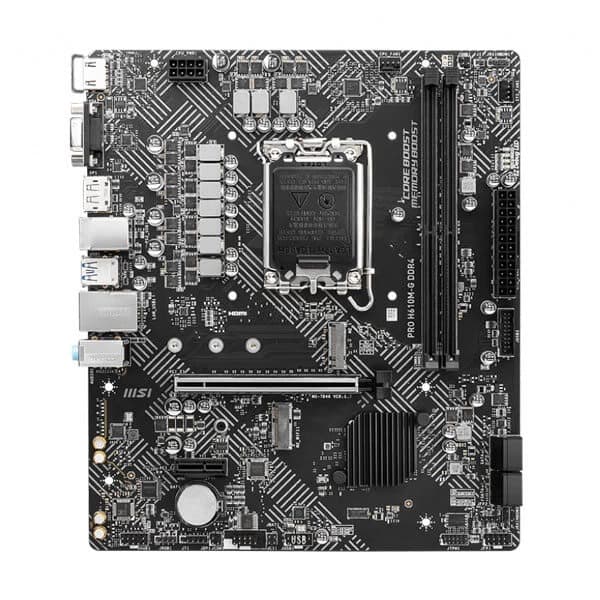

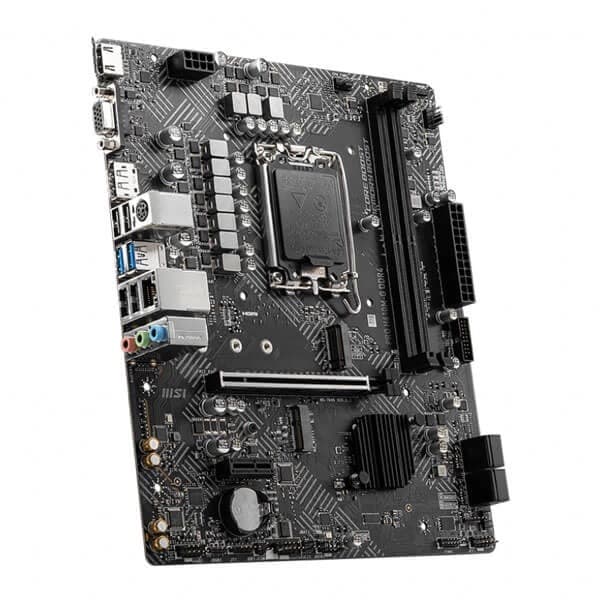

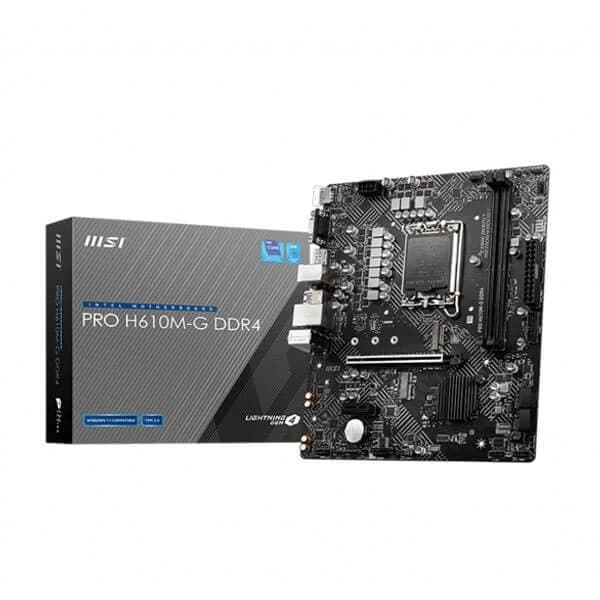

MSI Pro H610M-G DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

MSI PRO H610M-G DDR4 Motherboard - Supports Intel 12th Gen (LGA 1700), Micro-ATX, 2 DIMMs, 1x PCIe 4.0 x16, 1x M.2 Gen3, USB 3.2 Gen1, 1G LAN, HDMI 2.1, DP 1.4, VGA

Feature

• BIOS update may be required when used with some 14th generation Intel Core processors, visit MSI support website for more information
• Supports 14th / 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors*
• May require a BIOS update to boot the 13th gen Intel Core desktop processors.
• Supports DDR4 Memory, up to 3200(MAX) MHz
• Core Boost : With premium layout and digital power design to support more cores and provide better performance
• Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
• Lightning Fast Experience: PCIe 4.0
• Audio Boost: Reward your ears with studio grade sound quality
• Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.

USER FRIENDLY DESIGN

MSI Motherboards features tons of ConVenient and smart design for DIYUsers, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding Tweaker. Makes it so easy to install your own motherboard without any issue.

FROZR AI COOLING

Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.

CONNECTIVITY

The most important thing of DIY is expandability. MSI PRO SEries motherboard features plenty possibility for prosumers' need. Stable LAN, faster stroage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility.

BUSINESS ELEGANCE

The PRO H610M-G DDR4 is a business-oriented micro-ATX motherboard featuring the latest Intel H610 chipset that includes legacy-friendly display connectivity.

SUPPORTS INTEL CORE 12TH GEN PROCESSORS

The PRO H610M-G DDR4 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: micro-ATX Socket Type: LGA 1700 Chipset: Intel H610

INTEGRATED COOLING FEATURES

Chipset Heatsink: Provides passive cooling. Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures.

FORTIFIED PCI-E 4.0 X16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: * 1 x PCI-e 4.0 x16 slot (with Steel Armor) * 1 x PCI-e 3.0 x1 slot

GEN3 M.2 CONNECTOR

The PRO H610M-G DDR4 motherboard features MSI's Turbo Gen3 M.2 slot: 1 x Gen3 x4 32Gb/s slot * Supports SATA 6Gb & 2242/ 2260/ 2280 storage devices

OPTIMIZED LAYOUT DESIGN

2 x DDR4 Dual Channel (3200 MHz) 8+1+1 Power Design with Core Boost: MSI's exclusive technology guarantees stable and strong current delivered to the core processor. Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for better stability.

STAY CONNECTED

1G LAN: A 1Gbps LAN controller delivers a premium network experience. USB 3.2 Gen 1 Type-A: Connect to devices and transfer files at high bandwidth rates: 5Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost. Display Ports: Include HDMI 2.1 & DP 1.4 ports (4K/60Hz) as well as legacy VGA.
