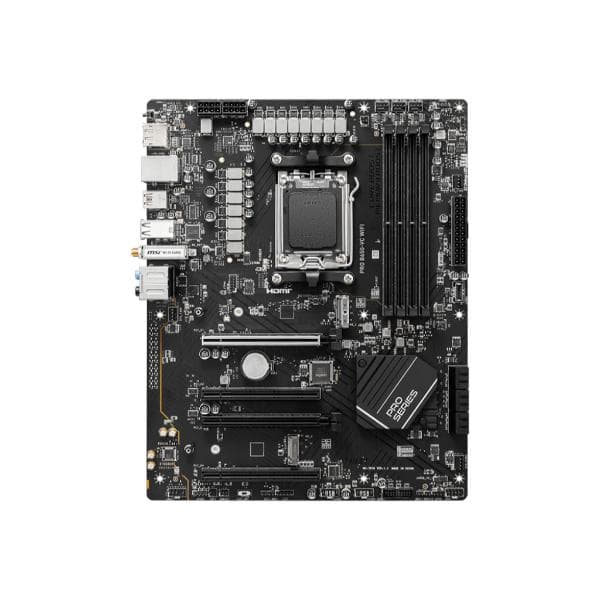

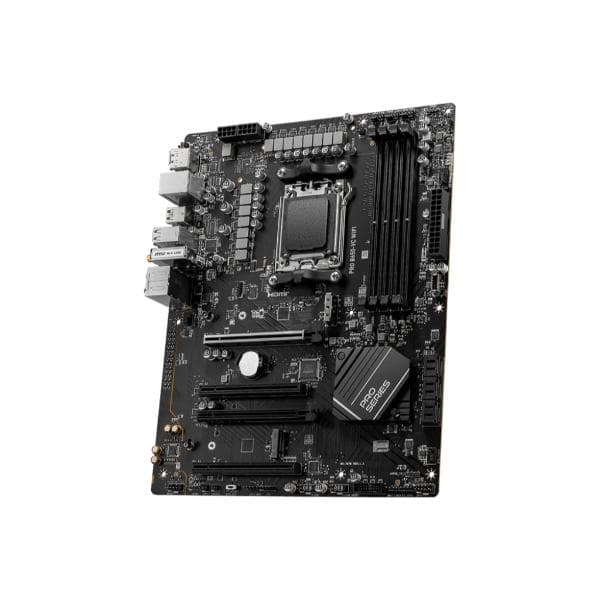

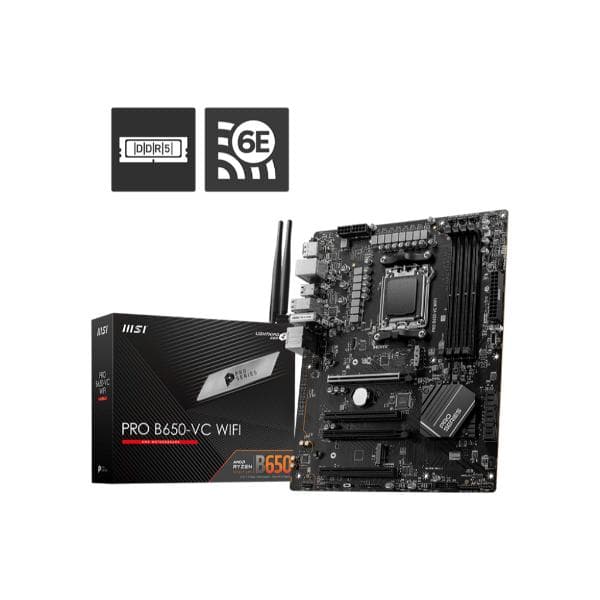

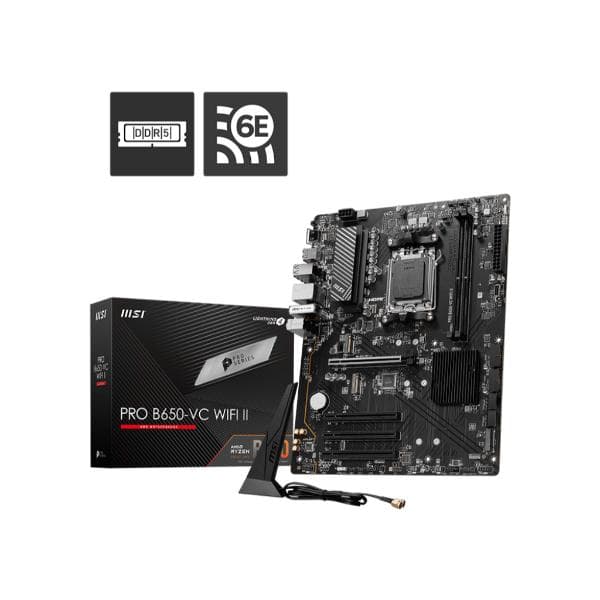

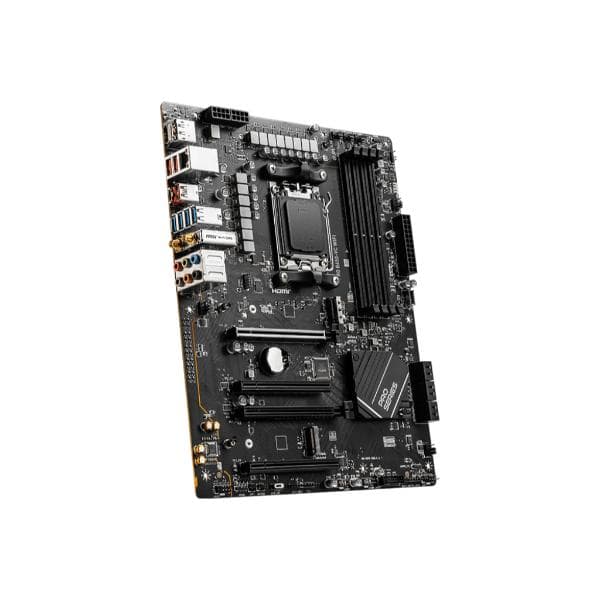

MSI PRO B650-VC WIFI II AMD AM5 ATX Motherboard
SKU: PRO B650-VC WIFI II
users viewing this item right now
₹54500
₹10685
Save Extra
Availability
In Stock
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7800+MHz (OC)
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Premium Thermal Solution: the PCH heatsink and Frozr AI Cooling are built for high performanc
MSI PRO B650-VC WIFI II AMD AM5 ATX Motherboard for AMD Ryzen 9000/8000/7000 Series Processors
PRO B650-VC WIFI II is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
12+2+1 POWER DESIGN
Unleash and sustain the maximum performance with a flagship VRM design built with a total of 12+2 phases with 75A SPS. Combining dual power connectors and 75A Smart Power Stage, PRO B650-VC WIFI II is ready for the challenge of high-end processors.
OPTIMIZED PCB SOLUTION
The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, PRO B650-VC WIFI II is ready to deliver the world class memory performance.
EASY OVERCLOCKING WITH EXPO PROFILE
MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Easy to enable EXPO profile with auto power settings to get the best memory speed and stability.
MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc.
UP TO 12% Memory latency Reduction
Key Features
| Chipset | AMD B650 |
|---|---|
| CPU | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Socket AM5 |
| Memory | 2x DDR5 UDIMM, Maximum Memory Capacity 128GB Supports Dual-Channel mode |
| Onboard Graphics | 1x HDMI™ Support HDMITM 2.1, maximum resolution of 4K 60Hz* *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Slot | 4x PCI-E x16 slot • Supports x16/x1/x1/x1 (For Ryzen™ 9000/ 7000 Series processors) • Supports x8/x1/x1/x1 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports x4/x1/x1/x1 (For Ryzen™ 8500/ 8300 Series processors) PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Storage | 3x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G • The M2_2 slot will be unavailable when using Ryzen™ 8500/ 8300 Series processor |
| RAID | Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices |
| USB | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 2x USB 5Gbps Type A (Rear) 4x USB 5Gbps Type A (Front) 1x USB 5Gbps Type C (Front) 2x USB 10Gbps Type A (Rear) |
| LAN | Realtek® 8111H Gigabit LAN |
| Internal IO | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 3x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 8x USB 2.0 ports 6x USB 5Gbps Type A ports 1x USB 5Gbps Type C ports 2x USB 10Gbps Type A ports |
| WIRELESS LAN & BLUETOOTH | AMD Wi-Fi 6E Supports Bluetooth® 5.3** * The usage of Wi-Fi 6GHz band relies on Windows 11 support and depends on every country’s regulations. |
| LED FEATURE | 4x EZ Debug LED |
| BACK PANEL PORTS |
|
| OPERATING SYSTEM | Support for Windows® 11 64-bit, Windows® 10 64-bit |
Brands
MSI
Socket
AM5
Chipset
B650
Platform
AMD
Ram-Type
DDR5
Warranty
3 Years
Product-Type
Normal
Memory-Series
DDR5
Motherboard-Size
ATX
Motherboard-Series
MSI PRO
Only verified purchasers can leave a review.
No reviews yet for this product.
Please log in to ask a question.
No questions have been answered yet.
Related Products
You might also love these hardware gear upgrades
Sale
Msi Pro B550m-p Gen3 Motherboard
₹12750
₹7905
Sale
MSI MPG B850I Edge TI WiFi Motherboard
₹38999
₹22992
Sale

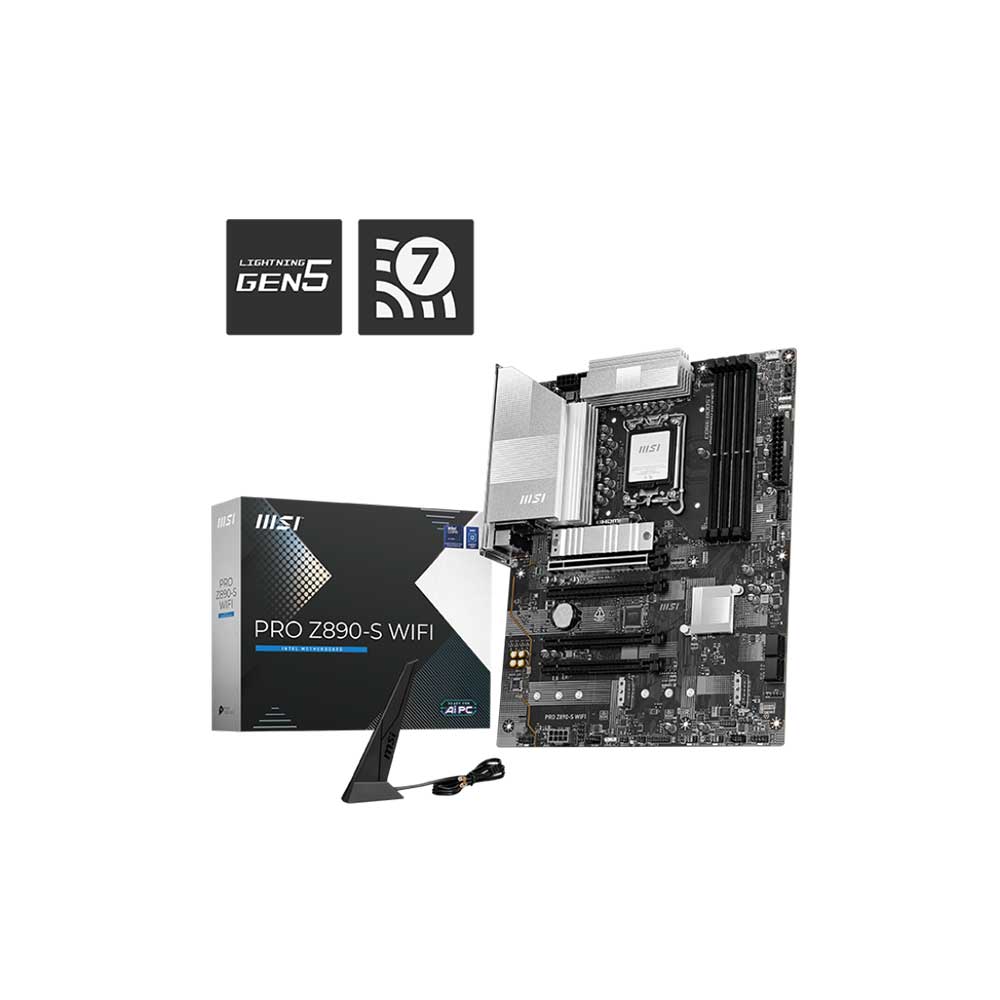

Msi Pro Z890-S WiFi LGA1851 ATX Motherboard
₹47499
₹22415
Sale

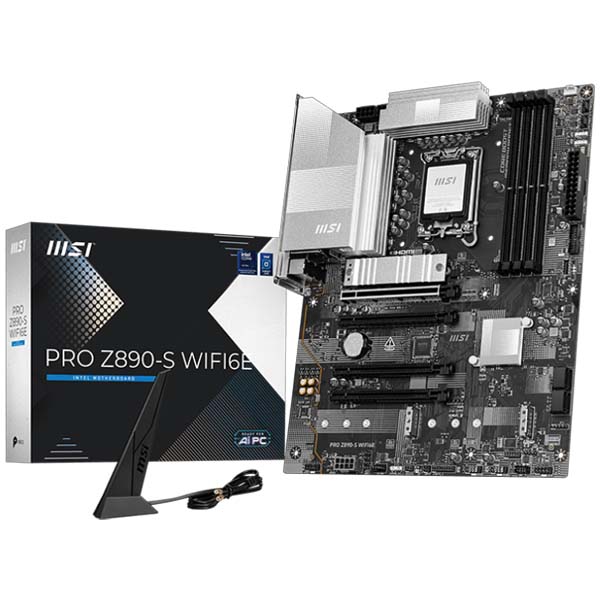

MSI PRO Z890-S WIFI6E LGA1851 ATX Motherboard
