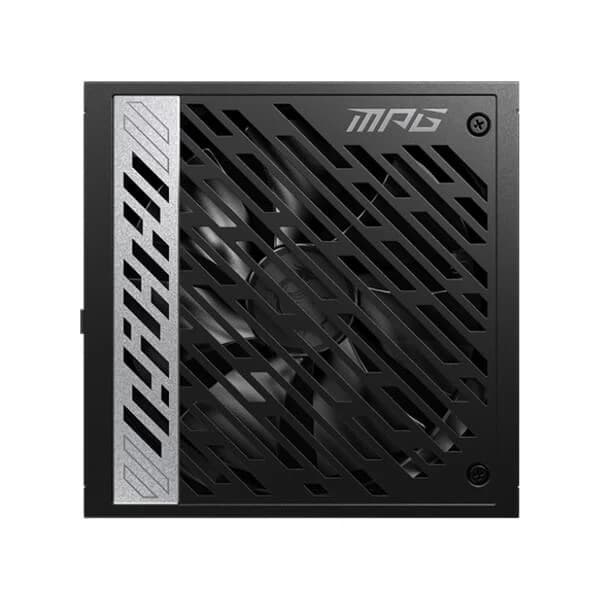

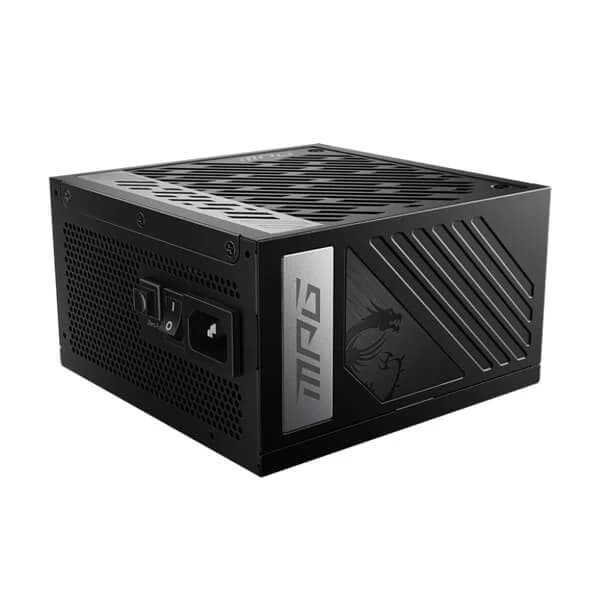

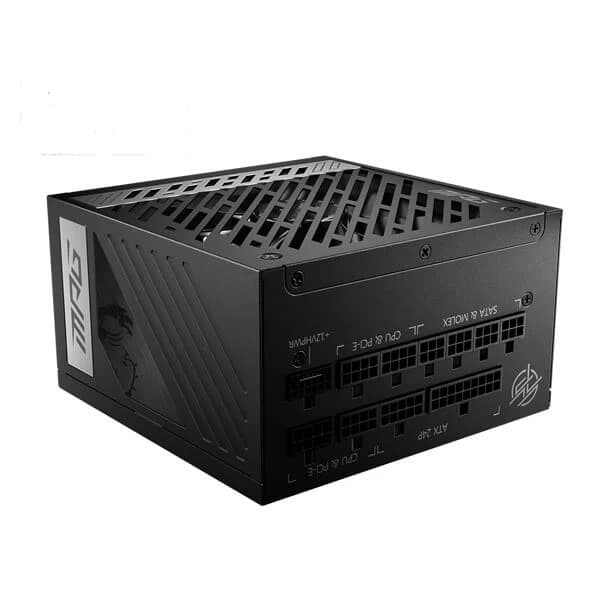

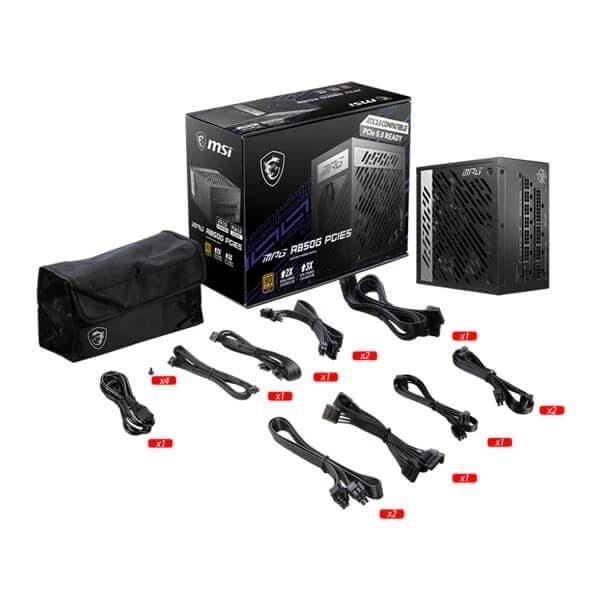

MSI MPG A850G PCIE5 850 Watt 80 Plus Gold SMPS
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
₹11,999.00
MSI MPG A850G PCIE5 850 Watt 80 Plus Gold SMPS
The MSI MPG A850G series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world.
Features:
- Supports Nvidia® GeForce RTXTM 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
SINGLE-RAILED DESIGN
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
GPU SUPPORT FOR ALL
The gaming power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MPG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
SYSTEM BUILD
The power supply can be easily placed and installed into your build.
| Efficiency Rating | 80 PLUS Gold (up to 90%) |
| Modular | Yes (full modular) |
| Fan Size | 135 mm |
| Fan Bearing | Fluid Dynamic Bearing |
| Dimensions (DxWxH) | 150 x 150 x 86 mm |
| PFC Type | Active PFC |
| Input Voltage Range | 100-240 |
| Power Watt | 850W |
| Power Excursion | 1700W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range | 50~60 Hz |
| Protection | OCP / OVP / OPP / OTP / SCP / UVP |

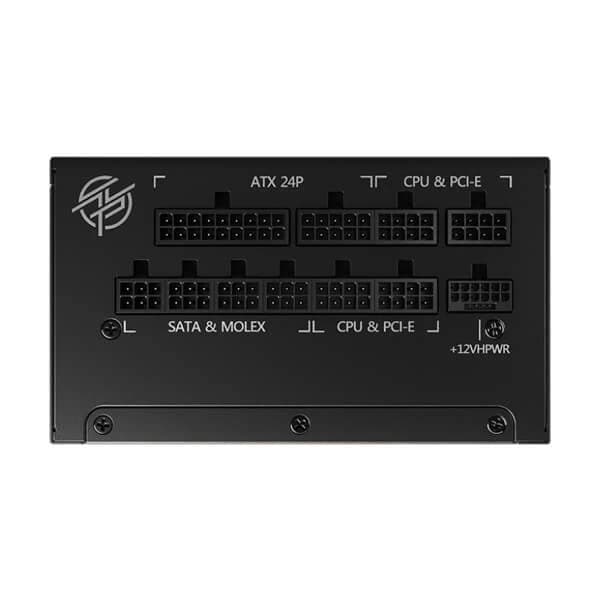

| ATX (24 pin) | 1 |
| EPS (4+4 pin) | 2 |
| PCI-E 5.0 (16 pin) | 1 (600W) |
| PCI-E (6+2 pin) | 6 |
| SATA (15 pin) | 8 |
| MOLEX (4 pin) | 4 |
| FDD (4 pin) | 1 |
| Warranty | 10 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Weight | 2 kg |
|---|---|
| Product Type | |
| Brands | |
| PSU Certification | |
| Modular | |
| Warranty | |
| Wattage | |
| EAN / UPC Code |
