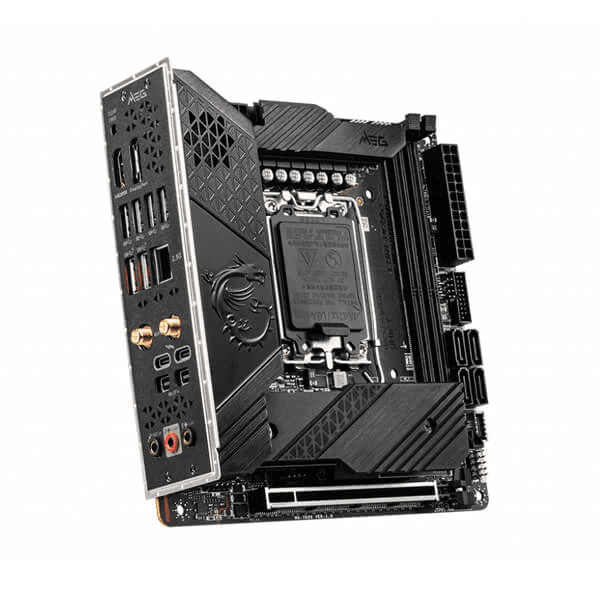

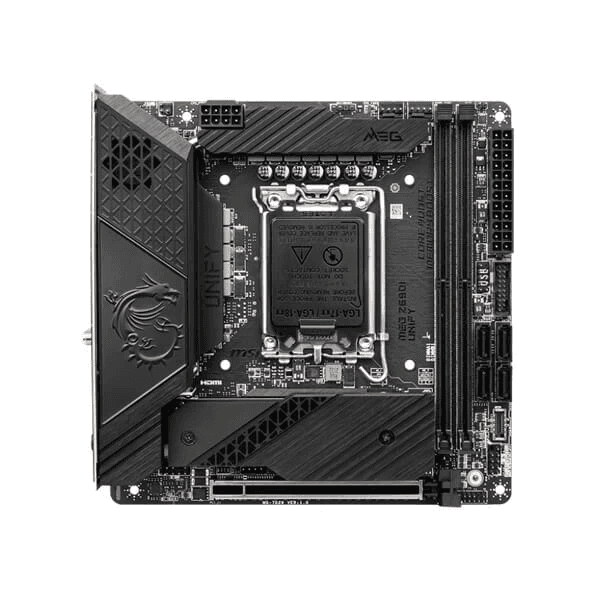

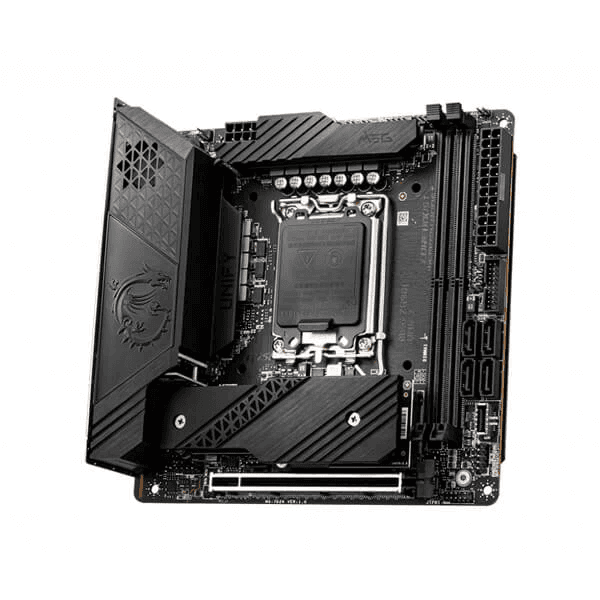

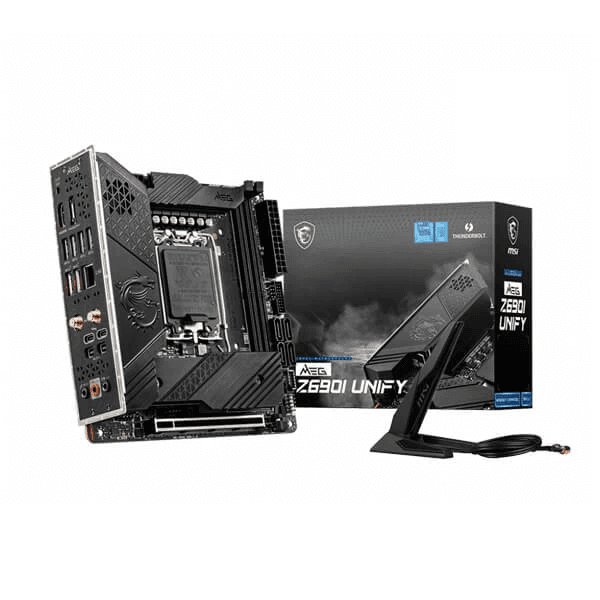

MSI MEG Z690I Unify (Wi-Fi) Intel Motherboard

Brands
  • Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
  • Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
  •  Delivery & Return

    🚚 Shipping and Risk:

    • Order Will Be Shipped Within 24-48 Working Hours After the Order is Processed.
    • Shipping Partners : Delhivery, XpressBees, Gati, BlueDart, Ecom Express (Depending on Availability at Your Pincode), Computech DOES NOT Have any Control over Operations of Shipping Partners.
    • Delivery dates are estimates Provided By Shipping Partners. Shipping Partners are solely responsible for any kind of Delays.
    • Loss or damage occured during shipping is Computech Responsibility.
    • You Must Leave a Remark During Delivery to Delivery Guy About Damaged Box or Package, and Make an Un-cut Unboxing Video of the Package.
    • You must notify Computech of damaged or missing items from your order within 24-hours of receiving your package

    ♻️ Replacement and Refund Policy:

    • We accept replacement if product is defective or wrong product shipped no return or refund will be entertained.
    •  For gaming chairs only part replacement is applicable if the product delivered is defective or damaged, no refunds will be there for orders of gaming chairs.
    • If the seal of the product is opened and the product is not faulty then return/refund will not be applicable.
    • Packaging material should be kept by the buyer until the replacement window is opened as this will help them to pack the product to its original form to avoid any damage during the transit.
    • Product should be packed in a proper way as it was received by the buyer, do not apply tapes or glues directly on the product or on the product box, this may lead to cancellation of your replacement request.
    • All the accessories which were delivered along with the product should be returned in the same way and along with the product.
    • If the payment was made through our payment gateway, then it will be refunded in same account by which the payment was done, in case of BANK TRANSFER and COD orders refunds will be done only in buyers bank account. Refunds usually takes 7-10 working days to reflect in your account.
  ... people are viewing this right now

  Share
Guaranteed Safe Checkout

38,999.00

Out of stock

Email when stock available

MSI MEG Z690I Unify (Wi-Fi) Intel Motherboard

Features:

MSI MEG Z690I Unify WIFI

  • Z690I Unify Supports 12th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1700 socket
  • Z690I Unify Supports DDR5 Memory, Dual Channel DDR5-6800+MHz(OC)
  • Dual Thunderbolt 4 ports: Thunderbolt USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chaining and Multi-Port Accessory Architecture provide reliable connectivity and better user experience.
  • Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution for an even clearer DDR5 memory signal to explore the boundaries of memory overclocking, deliver the world class memory performance.
  • Extreme Power Design: Premium digital PWM, direct 10+1+1 phases with 105A Smart Power Stage and Titanium Choke III to unleash the true power of your processors.
  • Triple M.2 Connectors : Onboard triple M.2 connectors for the maximum storage performance with dual Lightning Gen 4 solution.
  • Outstanding Cooling Solution: Frozr Heatsink, VRM Heat-pipe, Aluminum Cover, M.2 Shield Frozr and Aluminum Backplate ensure the extreme performance with low temp.
  • 2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
  • 12 Layer Server Grade PCB Design: Provides higher performance and long-lasting system stability without any compromise.
  • Audio Boost 5: Isolated audio with a high quality ALC4080 audio processor & amp for the most immersive gaming experience.
MEG Z690I UNIFY
MEG Z690I UNIFY
MSI Gaming Logo

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and Tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MEG Z690I UNIFY

Pure Black, Pure Performance

The MEG Z690I UNIFY Mini-ITX motherboard unlocks the full gaming potential of the Intel Z690 chipset by combining elite hardware system support with a cooling-optimized layout to create an outstanding mini-ITX platform for overclocking or extreme gaming.

  • Supports Intel Core 12th Gen Processors (LGA 1700)
  • 2 x DDR5 DIMMs, Memory Boost (6800MHz+ OC)
  • Direct 10+1+1 Phase Power Design with 105A SPS
  • 3 x M.2 Slots (2 x Gen4, 1 x Gen3) with Shield Frozr
  • PCI-e 5.0 x16 (128GB/s) Graphic Card Slot
  • Intel I225-V 2.5G LAN
  • Wi-Fi 6E with Bluetooth 5.2
  • Dual Thunderbolt 4 (40Gbps) Ports

Z690 Chipset, Direct 10+1+1 Phase VRM, Premium Cooling, DDR5 Memory Boost

MEG Z690I UNIFY

MEG Z690I UNIFY

MEG Z690I UNIFY

MEG Z690I UNIFY

Supports Intel Core 12th Gen Processors

The MEG Z690I UNIFY motherboard supports 12th Gen Intel Core processors.

  • Form Factor: Mini-ITX
  • Socket Type: LGA 1700
  • Chipset: Intel Z690



Direct 10+1+1 Phase VRM with 105A SPS

Unleash and sustain maximum performance with an aggressive VRM design built around a direct 10+1+1 phase VRM with 105A Smart Power Stage (SPS) with exclusive Core Boost Technology.

An 12-layer server-grade PCB with 2oz of thickened copper improves performance & system stability.

Premium Cooling Solution

VRM Cooling: Features heavy-plated heatsinks (with fan), connecting heat pipe, choke and 7W/mK thermal pads, and an aluminium backplate for improved thermal dissipation.

SSD Cooling: M.2 Shield Frozr prevents thermal throttling.

System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Chipset Cooling: Includes chipset heatsink.

2 x DDR5 Dual Channel (6800+ MHz Overclocked*)

Memory Boost: A fully-isolated circuit delivers pure DDR5 data signals for optimal gaming and overclocking performance.

XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for improved memory speed and stability.

*1DPC 1R Max. overclocking frequency 6800+ MHz, supports Intel XMP 3.0 OC.

PCI-e 5.0 x16 Slot, Cutting-Edge Storage Performance, Wi-Fi 6E & Thunderbolt 4 Connectivity

MEG Z690I UNIFY

MEG Z690I UNIFY

MEG Z690I UNIFY

MEG Z690I UNIFY

Fortified PCI-e 5.0 x16

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points* to support the weight of heavy graphics cards and shields the point of contact from electromagnetic interference:

  • PCI-e 5.0 x16 slot (with Steel Armor)



*All-new MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

Gen4 & Gen3 M.2 Connectors

The MEG Z690I UNIFY motherboard features MSI’s latest M.2 slots (Intel Optane supported):

  • 2 x Gen4 x4 64Gb/s slots
  • 1 x Gen3 x4 32Gb/s slot



*M.2 specifications may vary depending on the CPU installed.

M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures.

M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

Wi-Fi 6E & Thunderbolt 4

Intel 2.5G LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience.

Dual Thunderbolt 4 USB Type-C: Enables ultra-fast 40Gbps bandwidth with 8K display support, and multi-port/daisy-chaining architecture.

HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output.

Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Processor
  • Supports 12th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® processors 1
  • Processor socket LGA1700
Chipset Intel® Z690 Chipset
Memory
  • 2x DDR5 memory slots, supporting up to 64GB 1
  • Supports 1R 4800 MHz (by JEDEC & POR)
  • Max. overclocking frequency:
  • 1DPC 1R Max speed up to 6800+ MHz
  • 1DPC 2R Max speed up to 5600+ MHz
  • Supports Intel® XMP 3.0 OC
  • Supports Dual Controller Dual-Channel mode
  • Supports non-ECC, un-buffered memory
Expansion Slots
  • 1x PCIe 5.0 x16 slot (From CPU)
Onboard Graphics
  • 1x DisplayPort 1.4 port, supporting a maximum resolution of 4K 60Hz 1/2
  • 1x HDMI 2.1 with HDR port, supporting a maximum resolution of 4K 60Hz 1/2
Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Thunderbolt™ 4
  • Intel® JHL8540 Thunderbolt™ 4 Controller
  • 2x Thunderbolt™ 4 (USB-C) ports on the back panel
  • Supports up to 40Gbps transfer rate with Thunderbolt devices
  • Supports up to 20Gbps transfer rate with USB4 devices
  • Supports up to 10Gbps transfer rate with USB 3.2 devices
  • Supports up to 5V/3A ,15W power charging
  • Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
  • Supports up to 8K display (need to connect the DisplayPort of the motherboard or discrete graphics card to the Mini DisplayPort Input port on the back panel)
STORAGE
  • 4x SATA 6Gb/s ports (From Z690 chipset)
  • 3x M.2 slots (Key M)
  • M2_1 slot (From CPU)
  • Supports up to PCIe 4.0 x4
  • Supports 2280 storage devices
  • M2_2 slot (From Z690 chipset)
  • M2_2 supports up to PCIe 3.0 x4
  • Supports up to SATA 6Gb/s
  • Supports 2280 storage devices
  • M2_3 slot (From Z690 chipset)
  • M2_3 supports up to PCIe 4.0 x4
  • Supports 2280 storage devices
  • M2_2~3 slots support Intel® Optane™ Memory
  • Supports Intel® Smart Response Technology for Intel Core™ processors
RAID
  • Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
  • Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
USB Intel® Z690 Chipset
  • 1x USB3.2 Gen2x2 20Gbps port (1 Type-C internal connector)
  • 2x USB 3.2 Gen 2 10Gbps ports on the back panel
  • 6x USB 3.2 Gen 1 5Gbps ports( (4 Type-A ports on the back panel and 2 ports available through internal USB connectors)
  • 2x USB 2.0 ports available through the internal USB connector
AUDIO Realtek® ALC4080 Codec 7.1-Channel High Definition Audio
LAN 1x Inte® I225V 2.5Gbps LAN controller
Wireless LAN & Bluetooth
  • Intel®Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1(160MHz) up to 2.4Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22, FIPS, FISMA
Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 build 21H1 and Windows 11. Bluetooth 5.2 will be ready in Windows 10 build 21H1 and Windows 11.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 4x SATA 6Gb/s connectors
  • 3x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 2x2 20Gbps Type-C connector
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector 1x 4-pin system fan connector
  • 1x Front panel audio connector
  • 1x System panel connector
  • 1x Chassis Intrusion connector
  • 1x TPM module connector
LED Feature 4x EZ Debug LED 1x 3-pin RAINBOW LED connectors

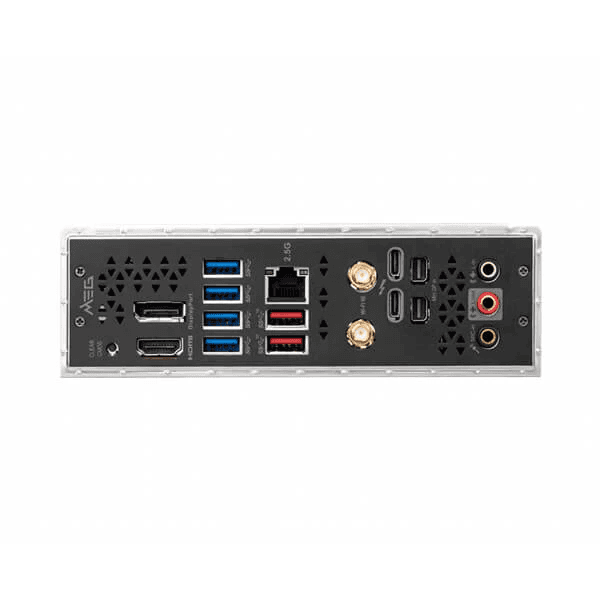

Back Panel Connectors
  • DisplayPort
  • USB 3.2 Gen1 5Gbps (Type-A)
  • 2.5G LAN
  • Wi-Fi / Bluetooth
  • Thunderbolt 4 40Gbps (Type-C)
  • HD Audio Connectors
  • Clear CMOS Button
  • HDMI
  • USB 3.2 Gen2 10Gbps (Type-A)
  • Mini DisplayPort Input (for Thunderbolt passthrough)
Dimensions
  • 6.7 in. x 6.7 in. [17.0 cm x 17.0 cm]
  • Mini-ITX Form Factor
Warranty 3 Years
Note *** Features, Price, Specifications are subject to change without notice.
Weight 2 kg
Dimensions 30 × 24 × 6 cm
