MSI MEG Z590 Unify X (Wi-Fi) Intel Motherboard

Brands

Z590 Unify X Supports 11th and 10th Gen Intel Core / Pentium Celeron processors for LGA 1200 socket
Z590 Unify X Supports DDR4 Memory, up to 5600(OC) MHz
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution deliver the world class memory performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.

... people are viewing this right now

Guaranteed Safe Checkout

₹41,750.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

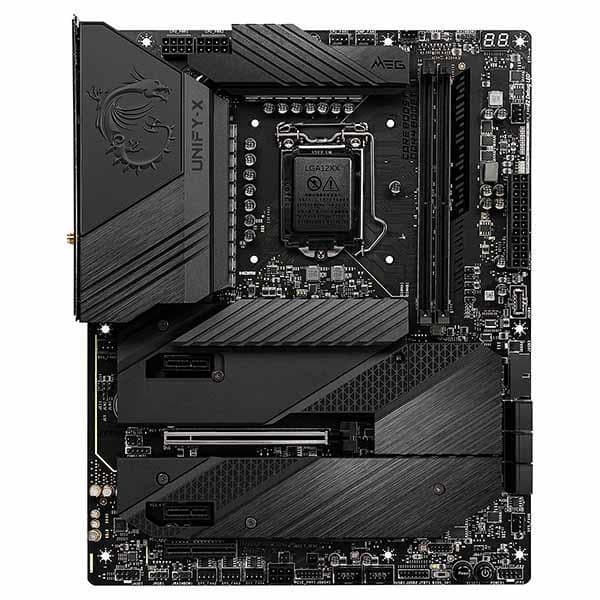

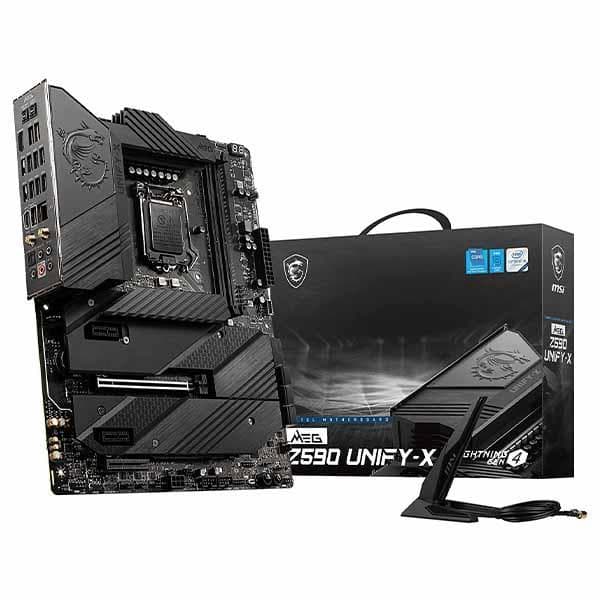

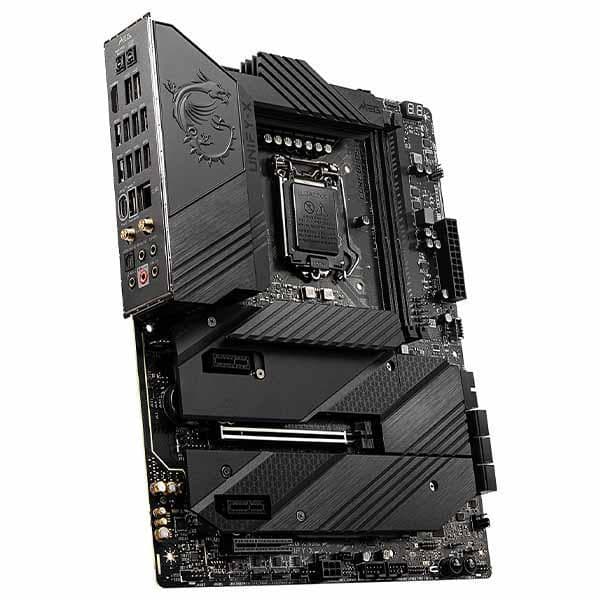

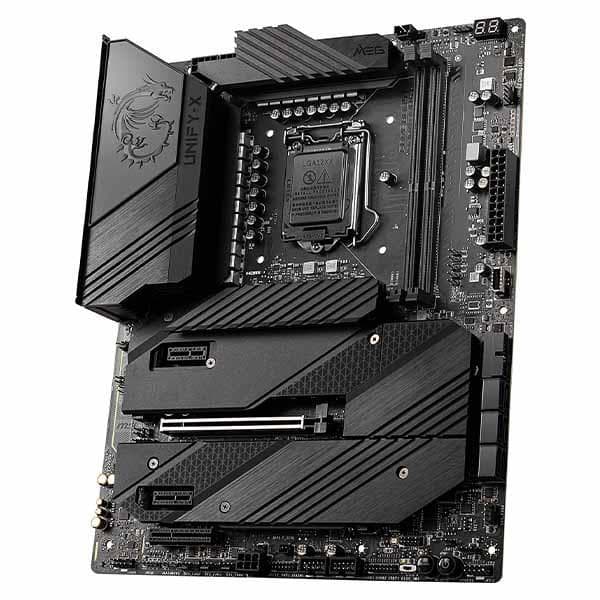

MSI MEG Z590 Unify X (Wi-Fi) Intel Motherboard

The MSI MEG Series Z590 Unify X is a ATX High Performance 11th Gen Rocket Lake Motherboard Featuring Intel WiFi 6E, 2.5 Gigabit Ethernet, 10 Layer PCB Design and DDR4 5600 MHz Memory Support.

Msi Supports 11th and 10th Gen Intel^® Core™ / Pentium^® Celeron^® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5600(OC) MHz
Dedicated for Extreme OC: The top-notch R&D design and exclusive 2 DIMM solution deliver the world class memory performance.
Quadruple M.2 Connectors: Onboard 4x M.2 connectors for the maximum storage performance with three Lightning Gen 4 solution. Shield Frozr design keeps M.2 SSDs safe while preventing throttling, making them run faster.
Extreme Power Design: INTERSIL digital PWM, 16+2+1 phases with 90A Smart Power Stage, dual CPU power connectors and exclusive Mirrored Power Arrangement to unleash the true power of your processors.
Outstanding Cooling Solution: Aluminum Cover, VRM Heat-pipe, 7W/mK thermal pads, M.2 Shield Frozr and MOSFET Baseplate ensure the extreme performance with low temp.
2.5G LAN with latest Wi-Fi 6E: Onboard 2.5G LAN with LAN manager and latest Wi-Fi 6E solution which supports 6GHz spectrum delivering the best online gaming experience.
Lightning USB 20G: Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
Smart Button: One button with multiple hardware control. Reset Computer, Safe Boot, Turbo Fan and EZ LED control functions with just one click.
8 Layer PCB with 2oz Thickened Copper: Provides higher performance and long-lasting system stability without any compromise.

Features

MSI MAG Gaming PLUS Motherboard Intel 11th Gen Gaming

MSI: For Gamers & Creators

MSI is one of the most trusted names in gaming and esports with countless hours and significant resources invested into premier esports leagues and tier-1 gaming teams. By supporting and working with the best of the best, MSI is able to integrate competitive gaming knowledge and aspirations with technological innovation to create new products that shatter today’s performance limits.

MEG Z590 UNIFY-X Motherboard

Pure Black, Pure Performance

The MEG Z590 UNIFY-X ATX motherboard is tailored specifically for extreme SDRAM overclocking of the Intel Z590 chipset by combining dedicated 2 DIMM DDR4 architecture with a cooling-optimized layout to create an outstanding ATX platform for world-record breaking overclocking. MSI UNIFY motherboards eschew all RGB trappings in favor of maximum hardware performance, resulting in lean, mean, power-hungry motherboards designed to set blistering speed records.

Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
16+2+1 Mirrored Power Arrangement VRM with 90A SPS
Lightning Gen4 & Turbo Gen3 M.2 slots with Shield Frozr
1 x PCI-e 4.0 x16 Graphic Card slot
2 DIMMS with DDR4 Boost: Dual Channel (64GB Max. / 5600MHz OC)
Intel I225-V 2.5G LAN
Wi-Fi 6E AX210 & Bluetooth 5.2

Z590 Chipset, 16+2+1 Phase VRM, Premium Cooling, 1 x PCI-e 4.0 x16


Supports Intel Core 11th Gen Processors The MEG Z590 UNIFY-X motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1200 Chipset: Intel Z590	16+2+1 Mirrored Power Arrangement Unleash and sustain maximum performance with an aggressive VRM design built with a total of 16+2+1 digital power phases. Combining dual 8-pin power connectors and an exclusive Mirrored Power Arrangement, the MEG Z590 UNIFY-X motherboard is ready for the challenge of high-end processors.	Integrated Cooling Features VRM Cooling: Features extended heatsinks with wavy fins, integrated fan, connecting 8mm heat pipe, choke and 7W/mK thermal pads. PCB Cooling: Premium 8-layer printed circuit design with 2 oz. thickened copper and aluminum backplate improves heat dissipation & reliability. SSD Cooling: Double-sided M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header. Chipset Cooling: Includes an enlarged heatsink.	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor) 2 x PCI-e 3.0 x1 slots

Cutting-Edge Performance & Wi-Fi Connectivity


Gen4 & Gen3 M.2 Connectors The MEG Z590 UNIFY-X motherboard features MSI’s latest M.2 slots (Intel Optane supported): 3 x Gen4 x4 64Gb/s slot 1 x Gen3 x4 32Gb/s slots *M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	2 x DDR4 Dual Channel (5600 MHz OC) DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.	Wi-Fi 6E & Bluetooth 5.2 LAN: An Intel I225-V 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2×2: Connect to devices and transfer files at unpredicted rates: 20Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost 5 & S/PDIF output. Wi-Fi 6E: Features the latest Wi-Fi 6E AX210 (ultra-low latency, high-bandwidth) & Bluetooth 5.2 technology.

Description Specifications Additional information Reviews (0) Q & A

Processor	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
Chipset	Intel® Z590 Chipset
Memory	2x DDR4 memory slots, support up to 64GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR)® CPU (by JEDEC & POR)1 Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR)1 Max overclocking frequency: 1DPC 1R Max speed up to 5600 MHz 1DPC 2R Max speed up to 4800+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
Expansion Slots	1x PCIe x16 slot (PCI_E2, from CPU) Supports up to PCIe 4.0 x16 with11th Gen CPU1 Supports up to PCIe 3.0 x16 with10th Gen CPU1 1x PCIe 3.0 x4 slot (PCI_E4, from Z590 chipset)2 2x PCIe 3.0 x1 slots (from Z590 chipset)
Multi-GPU	Supports 2-Way AMD® CrossFire™ Technology
Onboard Graphics	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
Storage	6x SATA 6Gb/s ports (from Z590 chipset) 4x M.2 slots (Key M) M2_1 (from CPU) Available only on 11th Gen Intel® CPU Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_21, M2_32 slots Support up to PCIe 3.0 x4 and SATA 6Gb/s (from Z590 chipset, default) Support up to PCIe 4.0 x4 (from CPU, by BIOS selection) M2_2 supports 2242/ 2260/ 2280 storage devices M2_3 supports 2242/ 2260/ 2280/ 22110 storage devices M2_4 slot (from Z590 chipset) Supports up to PCIe 3.0 x4, 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors
RAID	Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB	Intel® Z590 Chipset 1x USB 3.2 Gen 2x2 20Gbps Type-C port on the back panel 2x USB 3.2 Gen 2 10Gbps ports (1 Type-A port on the back panel and 1 Type-C internal connector) 10x USB 3.2 Gen 1 5Gbps ports (8 Type-A ports on the back panel, 2 ports are available through internal USB 3.2 Gen 1 connector) 2x USB 2.0 ports on the back panel Hub-GL850G 4x USB 2.0 ports through internal USB 2.0 connector
Audio	Realtek® ALC4080 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
LAN	1x Intel® I225-V 2.5Gbps LAN controller
Wireless LAN & Bluetooth	Intel® WiFi 6E AX210 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz1 (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth® 5.22, FIPS, FISMA
Internal connectors	1x 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors 1x 6-pin ATX PCIE power connector 6x SATA 6Gb/s connectors 4x M.2 slots (M-Key) 1x USB 3.2 Gen 2 10Gbps Type-C port 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 6x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x 2-pin Thermal Sensors connector 1xTPM module connector 1x Tuning Controller connector 1x TBT connector (Supports RTD3)
LED Features	1x 2-Digit Debug Code LED 4x EZ Debug LED 1x 4-pin RGB LED connector 2x 3-pin RAINBOW LED connectors 1x 3-pin JCORSAIR LED connector

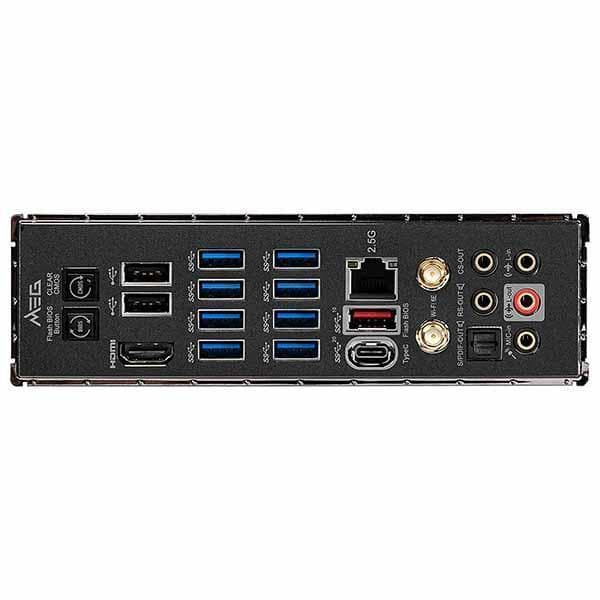

Back panel ports	Clear CMOS Button USB 2.0 USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 1 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth HD Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2x2 20Gbps (Type-C) Optical S/PDIF-Out
Dimensions	12 in. x 9.6 in. (30.5 cm x 24.4 cm) ATX Form Factor
Mounting	9 mounting holes
Operating System	Support for Windows® 10 64-bit
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Description Specifications Additional information Reviews (0) Q & A

Weight	1 kg
Dimensions	17 × 17 × 5 cm
Brands	MSI
Chipset	Z590
Motherboard Size	ATX
Socket	LGA 1200
Platform	Intel
Motherboard Series	MSI MEG
EAN / UPC Code	4719072842369
RAM Type	DDR4
Warranty	3 Years
