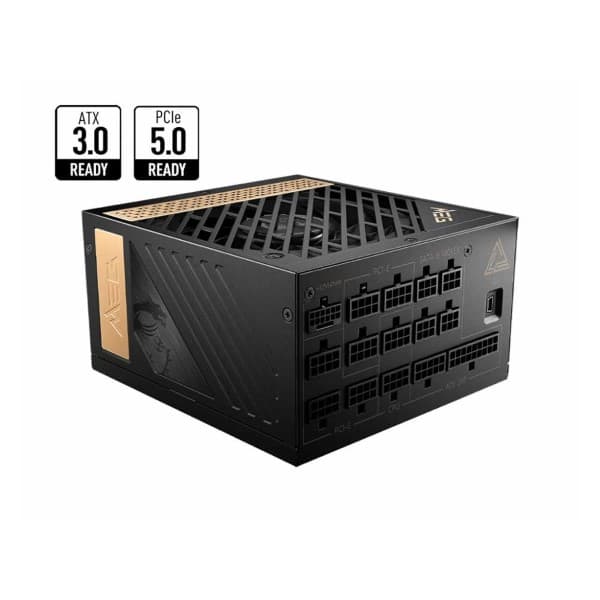

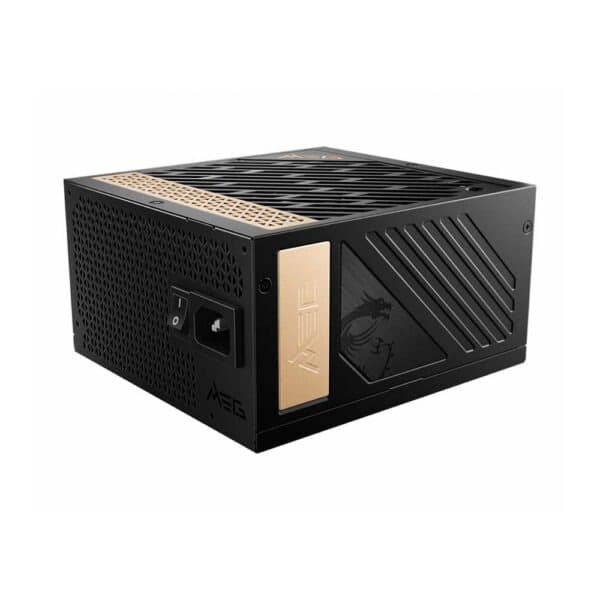

Msi Meg Ai1000P PCIE5 1000 Watt 80 Plus Platinum Power Supply
- Supports Nvidia® GeForce RTX® 40 Series graphics cards
- ATX 3.0 fully supported
- PCIe 5.0 ready, with native 16 pin connector
- Software sync with MSI center
- Full modular design
- Sleeve cables
- 80 PLUS Platinum certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
₹16,499.00
Out of stock
Email when stock available
80 Plus Platinum Certified
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Platinum certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Compared with the general platinum power supply on the market, the power supply’s 160mm-long and 150mm-wide dimensions ensure a comfortable and easy fit in most PC cases, effectively providing more space for cable management and airflow to the rest of the system.
SLEEVED CABLES
Flexible triple-layer sleeved cables are easy to bend and durable, providing easy cable routing and better durability. It also looks better depending on the preference of users.
GPU Support For All
The power supply can support the NVIDIA and AMD graphics cards. Prepared for the highest of requirements, the MEG power supply’s IO supports can support different and versatile ways of connection according to the power connector design of different graphics cards.
12VHPWR PCIe 5.0 Cable
With a native 16 PIN PCIe connector this power supply is ready for next-gen graphics cards. It can freely pipe up to 600W of power to PCIe 5.0 graphics cards.
Japanese Capacitors
Aiming for unwavering product quality and performance stability, the power supply comes with 100% Japanese 105° C capacitors and solid capacitors.
GPU Connection Options
Choose your preferred method of powering your GPU with the abundance of included cables.
Protection Mechanisms
Game easy knowing your PSU and PC are protected with all standard PSU protections.
Heatsink
To improve heat dissipation and prolong the capacitors’ lifespan, the heatsinks were designed to cover as many capacitors as possible in a limited space.
Compact and Fully Modular
With its compact size, reduce cable clutter by only using what cables you need.
Cable Manager
The PSU comes cable managers in two sizes. Keep your system clean and neat!
Magnetic Mark
The cosmetic magnetic plate allows you to reorient it based on your build configuration.

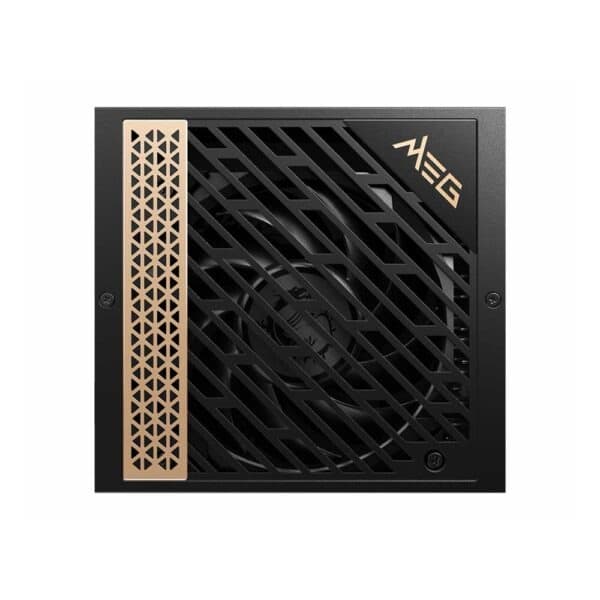

LCP Fan and HDB Bearing
Reduced sound from vibration and increased life expectancy are at the core of the PSU’s fan design.
| Brand | MSI |
|---|---|
| Model | MEG Ai1000P PCIE5 |
| Color | Black |
|---|---|
| Type | ATX |
| Maximum Power | 1000 W |
| Fans | 1 x 120 mm |
| PFC | Active |
| +12V Rails | Single |
| PCI-Express Connector | 8 x 6+2-Pin |
| SATA Power Connector | 12 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Efficiency | Up to 92% |
| Energy-Efficient | 80 PLUS PLATINUM Certified |
| PSU Noise Level | Cybenetics Standard ++ |
| Protection | OCP,OVP,OPP,OTP, SCP,UVP |

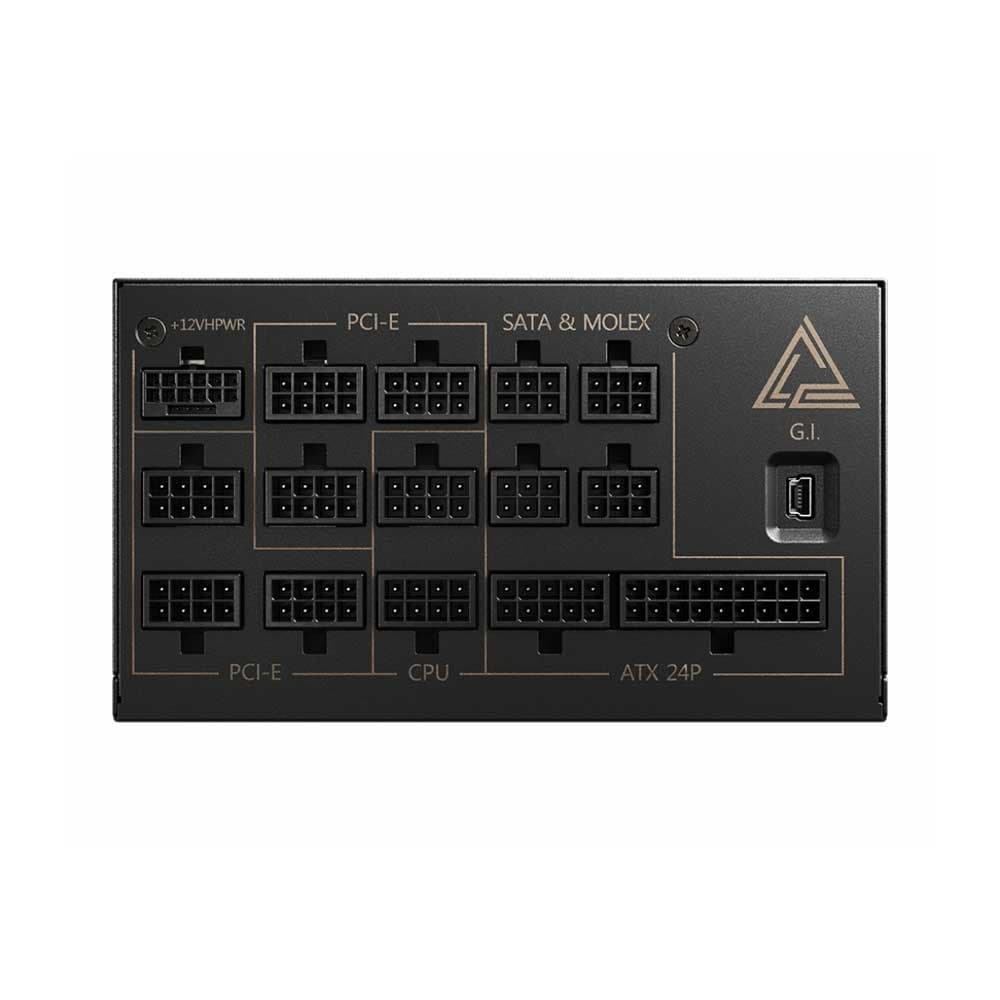

| Connectors | 1 x 16 pin PCIe / 1 x 24 pin ATX / 1 x 8 pin (4+4) EPS (CPU) / 1 x 8 pin (6+2) PCIe / 1 x 8 pin CPU / 1 x Floppy / 12 x SATA / 4 x 4 pin Peripheral |

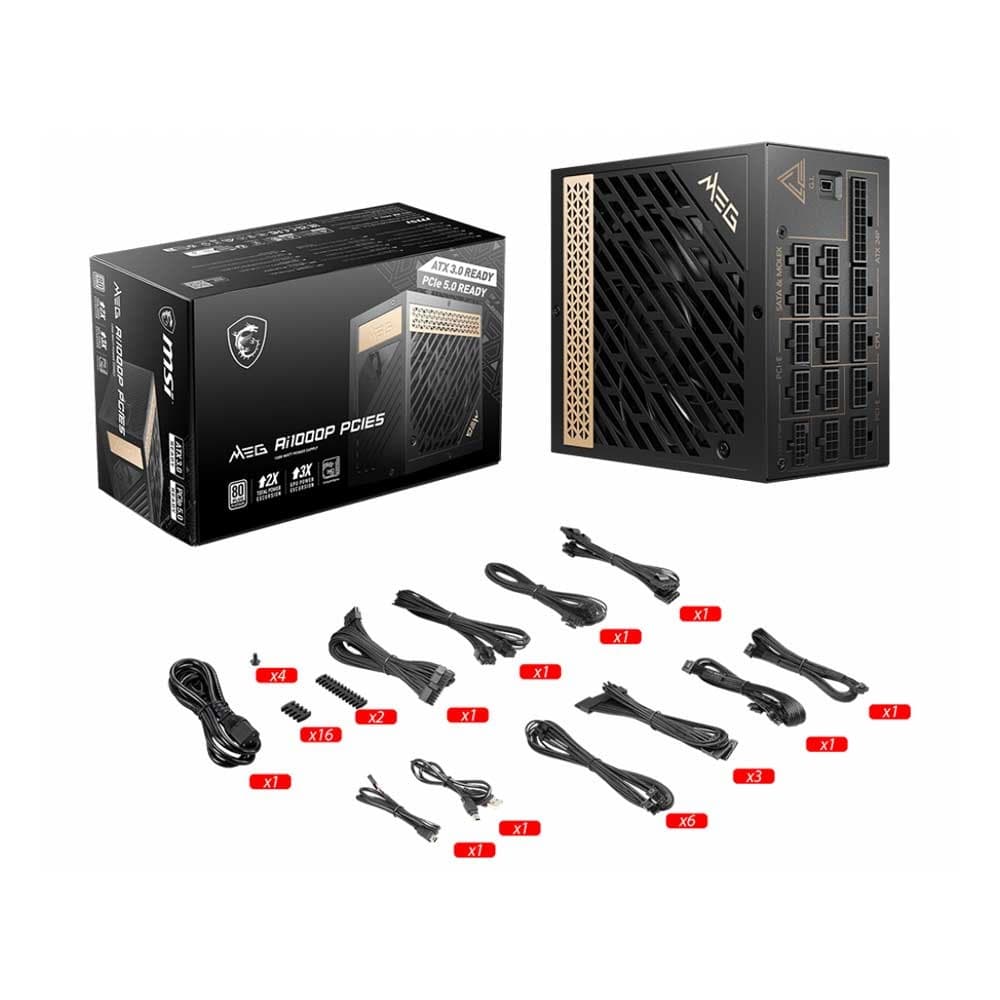

| Cable Spec | 1 x ATX Sleeved Cable 1 x EPS (8 PIN to 4+4 PIN) Sleeved Cable 1 x EPS (8 PIN to 8 PIN) Sleeved Cable 6 x PCIe (8 PIN to 6+2 PIN) Sleeved Cable 1 x PCIe (16 PIN to 16 PIN) Sleeved Cable 1 x PCIe (16 PIN to 6+2 PIN) Sleeved Cable 3 x SATA Sleeved Cable 1 x MOLEX/FDD Sleeved Cable 1 x MINI USB to 10PIN 1 x MINI USB to USB Type-A |
| Dimensions | 160 x 150 x 86mm / 6.3" x 5.9" x 3.4" |
|---|
| Weight | 1 kg |
|---|---|
| Brands | |
| color | |
| Modular | |
| Product Type | |
| PSU Certification | |
| Warranty | |
| Wattage | |
| EAN / UPC Code |
