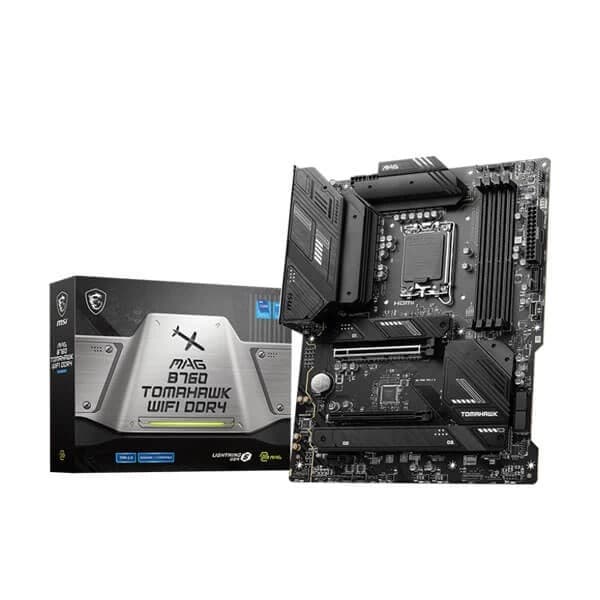

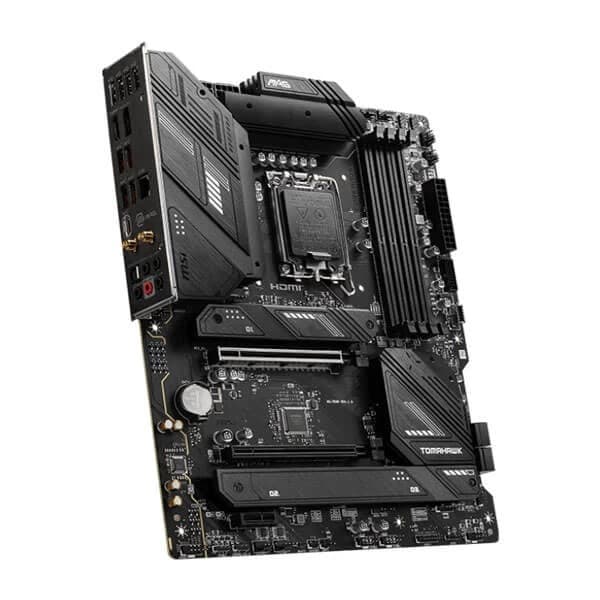

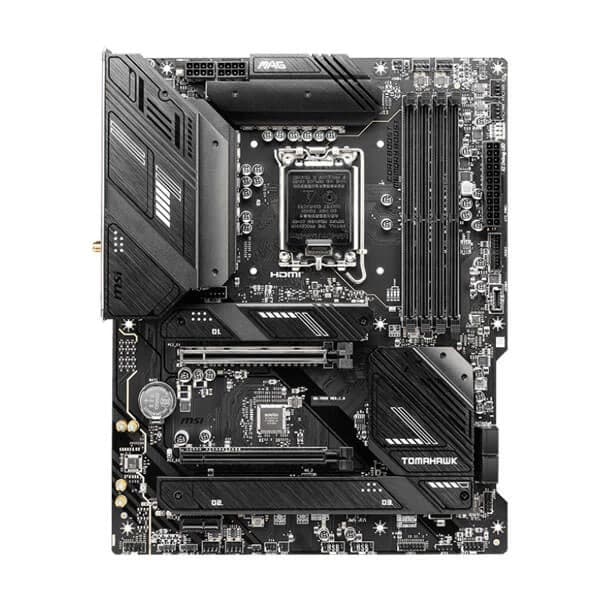

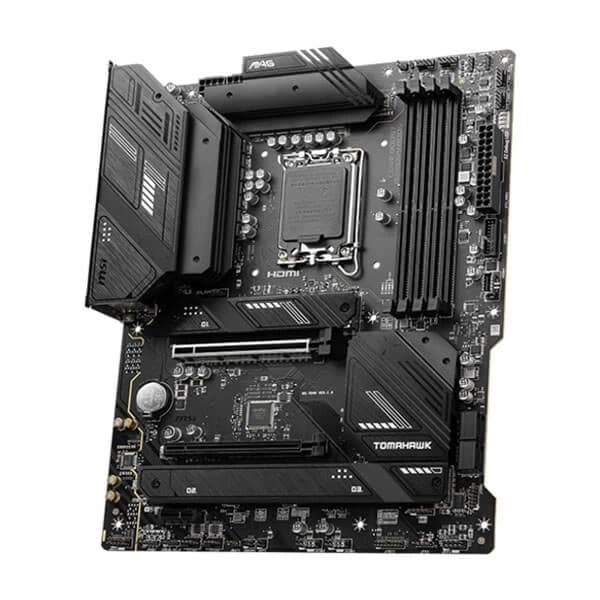

MSI MAG B760 Tomahawk WIFI DDR4 Intel Motherboard Supports Intel 12th , 13th & 14th Gen Processors

The MAG B760 TOMAHAWK WIFI motherboard supports 12th & 13th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: ATX Socket Type: LGA 1700 Chipset: Intel B760

With its dual 8 pin power connectors and exclusive Core Boost technology, the MAG B760 TOMAHAWK WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:

1. Digital PWM IC
2. 12-Phase Duet Rail CPU Power (DrMOS / 75A)
3. 1-Phase GT Power
4. 1-Phase AUX

VRM Cooling: MAG B760 Features an extended heatsink, 7W/mK thermal pads and additional choke thermal pads for improved thermal dissipation. PCB Cooling: Premium 6-layer server-grade printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. SSD Cooling: M.2 Shield Frozr prevents thermal throttling. System Cooling: Connect and synchronize cooling with strategically placed pin-headers – including a dedicated pump-fan header.

Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability. *1DPC 1R Max. overclocking frequency 7000+ MHz, supports Intel XMP.

MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 5.0/4.0/3.0 x16 slot* (with Steel Armor**) 1 x PCI-e 3.0 x16 slot* *Supports x16/x4 **MSI Surface Mount Technology (SMT) solder welding improves signal clarity.

The MAG B760 TOMAHAWK WIFI motherboard features MSI’s Gen4 M.2 slots: 3 x Gen4 x4 64Gbps slots* *3 with M.2 Shield Frozr

Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.

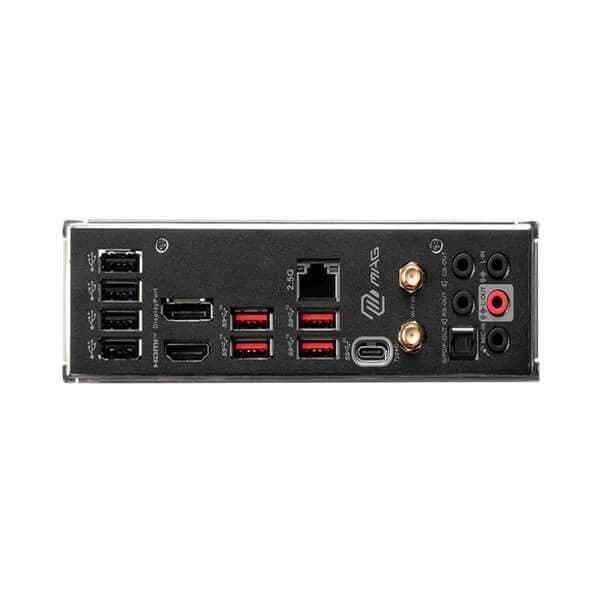

2.5G LAN: A Realtek 2.5Gbps LAN controller delivers a premium network gaming experience. Wi-Fi 6E: Features the latest Intel Wi-Fi 6E module (ultra-low latency, high-bandwidth) & Bluetooth 5.3 technology. USB 3.2 Gen 2×2 Type-C: Connect to devices and transfer files at high bandwidth rates: 20Gbps HD Audio: 7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
