MSI B560M PRO Intel Motherboard

Name: Buy MSI B560M PRO Intel Motherboard - Computech Store
Brand: MSI
SKU: B560M PRO
Price: 9850.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5200(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

... people are viewing this right now

Guaranteed Safe Checkout

₹9,850.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI B560M PRO Intel Motherboard

MSI Business Class B560 Intel 11th Gen Micro ATX Motherboard Featuring 2.5 Gigabit Ethernet Connectivity, 7.1 Channel Audio With MSI Audio Boost.

Features

B560M PRO

MSI B560M PRO Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5200(OC) MHz
Core Boost : With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost : Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience : PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost : Reward your ears with studio grade sound quality
Steel Armor : Protecting VGA cards against bending and EMI for better performance, stability and strength.

EZ DEBUG LED

Ran into trouble? Onboard LEDs for key components will indicate the source of the problem so you know exactly where to look to get it up and running again.

HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.

OPTIMIZE NETWORK FOR LOWER LATENCY!

MSI LAN Manager automatically classifies and prioritizes the latency-sensitive applications, giving you the best online experience with low latency.

MSI LAN MANAGER

– Allows you to change applications’ traffic priority –
– Allows you to customize bandwidth for each application –

A HUGE STEP OF DDR PERFORMANCE

MSI OC LAB does not merely work hard on extreme overclocking. Compare to B460 motherboard memory XMP profile, MSI does have great improvement on performance and efficiency for B560. Easy to enable XMP profile with auto power settings to get the best memory speed and stability.

CORE BOOST

Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.

CPU	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors Processor socket LGA1200
CHIPSET	Intel® B560 chipset
MEMORY	2x DDR4 memory slots, support up to 64GB Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5200 MHz 1DPC 2R Max speed up to 4700+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT	1x PCIe x16 slot (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS	1x VGA port, supports a maximum resolution of 2048x1536 @50Hz, 2048x1280 @60Hz, 1920x1200 @60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
AUDIO	Realtek® ALC897 Codec 7.1-Channel High Definition Audio
LAN	1x Realtek® 8125B 2.5Gbps LAN controller
STORAGE	6x SATA 6Gb/s ports (From B560 chipset) 1x M.2 slot (Key M) Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset) Supports 2242/ 2260/ 2280 storage devices Supports Intel® Smart Response Technology for Intel Core™ processors Intel® Optane™ Memory Ready. Before using Intel®® Optane™ memory modules, please ensure that you have updated the drivers and BIOS to the latest version from MSI website.
USB	Intel® B560 Chipset 6x USB 2.0 ports (2 Type-A port on the back panel, 4 ports available through internal USB 2.0 connectors) 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through internal USB 3.2 Gen1 connector)
FORM FACTOR	mATX Form Factor 9.3 in. x 8.0 in. (23.6 cm x 20.2 cm)
BIOS FEATURES	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 1x M.2 slot (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector
LED FEATURE	1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED

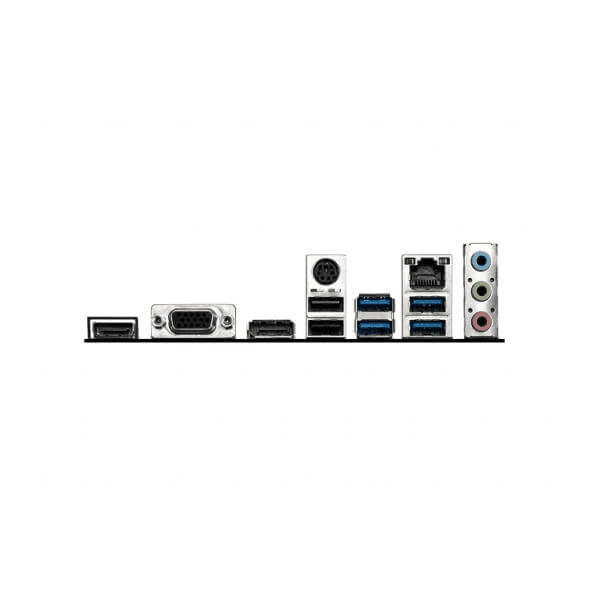

BACK PANEL CONNECTORS	HDMI VGA DisplayPort Keyboard / Mouse LAN port Audio connector USB 2.0 USB 3.2 Gen 1 5Gbps Type-A USB 3.2 Gen 1 5Gbps Type-A
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Dimensions	24 × 24 × 3 cm
Brands	MSI
Chipset	B560
Motherboard Size	mATX
Socket	LGA1200
Platform	Intel
Motherboard Series	MSI PRO
EAN / UPC Code	4719072807856
RAM Type	DDR4
Warranty	3 Years
