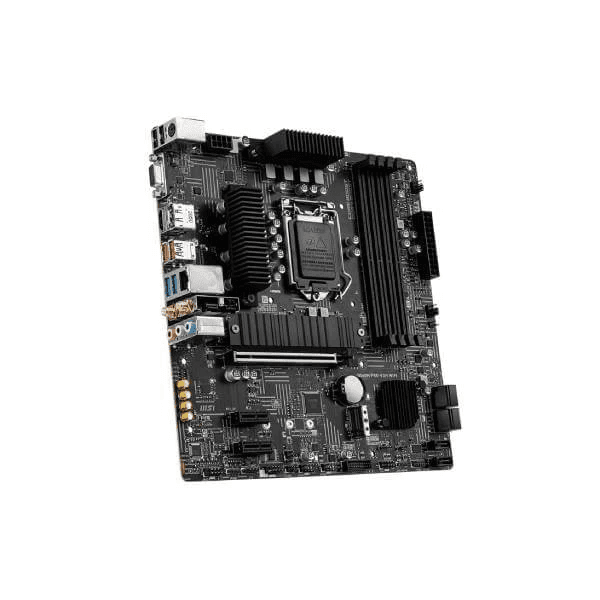

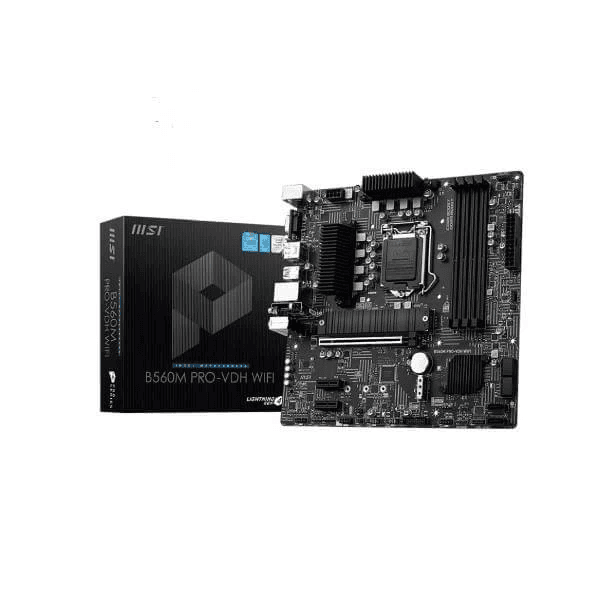

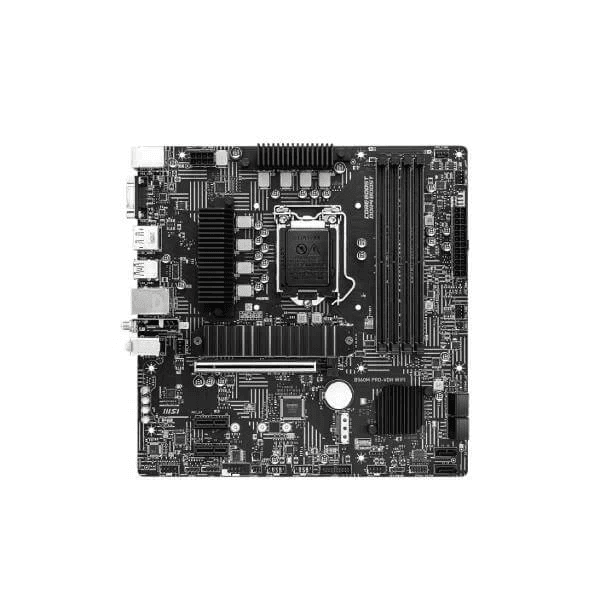

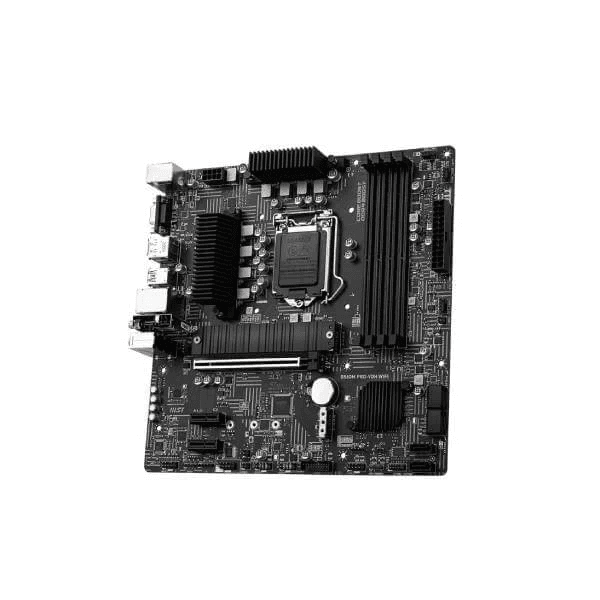

Msi B560m Pro-vdh Wifi Motherboard

Name: Buy Msi B560m Pro-vdh Wifi Motherboard - Computech Store
Brand: MSI
SKU: B560M PRO-VDH WIFI
Price: 11000.00 INR
Availability: OutOfStock

Brands

Brand:

MSI

B560M PRO-VDH Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr

... people are viewing this right now

Guaranteed Safe Checkout

₹11,000.00

Out of stock

Description Specifications Additional information Reviews (0) Q & A

MSI Pro Series Intel 11th Gen Rocket Lake Micro-ATX Motherboard, The B560M VDH WiFi Features DDR4 5000 Memory Support, 2.5 Gigabit Gaming LAN, Intel WiFI 6, Audio Boost and Copper OZ PCB for Longer Life.

Features

B560M PRO-VDH WIFI

MSI B560M PRO-VDH Supports 10th Gen Intel® Core™, 11th Gen Intel® Core™, Pentium® Gold and Celeron® processors for LGA 1200 socket
Supports DDR4 Memory, up to 5066(OC) MHz
Core Boost: With premium layout and digital power design to support more cores and provide better performance.
DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr
2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
Audio Boost: Reward your ears with studio grade sound quality
Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.

MSI

MSI: For Gamers & Creators

MSI Business & Productivity specializes in home & commercial office computing hardware with a design emphasis on productivity and user comfort.

For business professionals searching for elegant, world class solutions engineered with cutting edge components, premium reliability and refined aesthetics, MSI Business & Productivity offers a broad array of innovative products to ensure a competitive working environment.

B560M PRO-VDH WIFI

Business Elegance

The B560M PRO-VDH WIFI is a business-oriented micro-ATX motherboard featuring the latest Intel B560 chipset that includes both ample RAM capacity and excellent Wi-Fi connectivity.

Supports Intel Core 11th & 10th Gen Processors (LGA 1200)
Lightning Gen4 M.2 slot with Shield Frozr & Auto-Switch & Turbo Gen3 M.2 slot
1 x PCI-e 4.0 x16 slot
4 DIMMS with DDR4 Boost: Dual Channel (128GB Max. / 5066MHz OC)
7.1 HD Audio with Audio Boost
2.5G LAN Controller

B560 Chipset, Smart Cooling, PCI-e 4.0 x16


Supports Intel Core 11th Gen Processors The B560M PRO-VDH WIFI motherboard supports 11th Gen Intel Core, 10th Gen Intel Core, Pentium Gold, and Celeron processors. Form Factor: Micro-ATX Socket Type: LGA 1200 Chipset: Intel B560	Integrated Cooling Features VRM Heatsinks: Ensure excellent thermal dissipation under heavy loading PCB Cooling: Printed circuit design with 2 oz. thickened copper improves heat dissipation & reliability. Chipset Heatsink: Provides passive cooling Frozr AI Cooling: Automatically adjusts system fan settings based on CPU & GPU temperatures	Fortified PCI-e 4.0 x16 MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference: 1 x PCI-e 4.0/3.0 x16 slot (with Steel Armor)

Reliable Performance & WiFi Connectivity


Gen4 M.2 Connector The B560M PRO-VDH WIFI motherboard features MSI’s latest M.2 slots (Intel Optane supported): 1 x Gen4 x4 64Gb/s (automatically synchronises to either 10th or 11th Gen CPU’s) 1 x Gen3 32Gb/s *M.2 specifications may vary depending on the CPU installed.	M.2 Shield Frozr Even the world’s fastest SSDs will automatically slow if thermal throttling firmware detects excessively high temperatures. M.2 Shield Frozr is MSI’s most advanced thermal solution, offering the best possible protection to ensure maximum SSD transfer speed performance.	4 x DDR4 Dual Channel (5066 MHz OC) DDR4 Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are tested by MSI OC LAB and can be easily enabled with auto power settings for optimized memory speed and stability.	Wi-Fi 6E & Bluetooth 5.2 WI-FI 6: Intel WiFi 6 AX201 & Bluetooth 5.1 provide excellent remote connectivity. 2.5G LAN: A 2.5Gbps LAN controller delivers a premium network gaming experience. USB 3.2 Gen 2: Connect to devices and transfer files at high bandwidth rates: 10Gb/s. HD Audio: 7.1-Channel High Definition Audio with Audio Boost.

CPU	Supports 10th Gen Intel® Core™ Processors, 11th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors1 Processor socket LGA1200
MEMORY	4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
EXPANSION SLOT	1x PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel® CPU Support up to PCIe 3.0 for 10th Gen Intel® CPU 2x PCIe 3.0 x1 slots (From B560 chpiset)
ONBOARD GRAPHICS	1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
AUDIO	Realtek® AL897 Codec 7.1-Channel High Definition Audio
NETWORKING / LAN / WiFI	1x Realtek® 8125B 2.5Gbps LAN controller Intel® Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre certified Supports Bluetooth® 5.1, FIPS, FISMA
STORAGE	6x SATA 6Gb/s ports (From B560 chipset) 2x M.2 slot (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)¹ Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel® Optane™ Memory Ready¹ Supports Intel® Smart Response Technology for Intel Core™ processors
USB	Intel® B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
FORM FACTOR	Miro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
BIOS FEATURES	1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
INTERNAL CONNECTORS	1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector
LED FEATURE	1x 4-pin RGB LED connector 1x 3-pin RAINBOW LED connector 4x EZ Debug LED

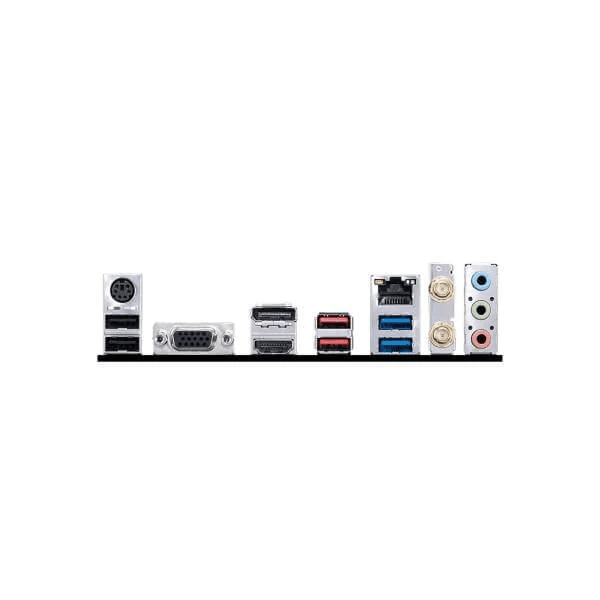

BACK PANEL CONNECTORS	Keyboard / Mouse VGA DisplayPort USB 3.2 Gen 2 10Gbps Type-A LAN port Audio connector USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A
Warranty	3 Years
Note	*** Features, Price, Specifications are subject to change without notice.

Weight	1 kg
Dimensions	22 × 22 × 3 cm
Brands	MSI
Chipset	B560
Socket	LGA 1200
Platform	Intel
Motherboard Series	MSI PRO
EAN / UPC Code	4719072807849
Motherboard Size	mATX
RAM Type	DDR4
Warranty	3 Years
