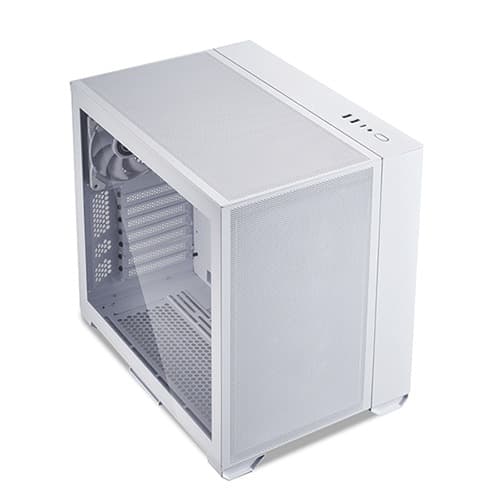

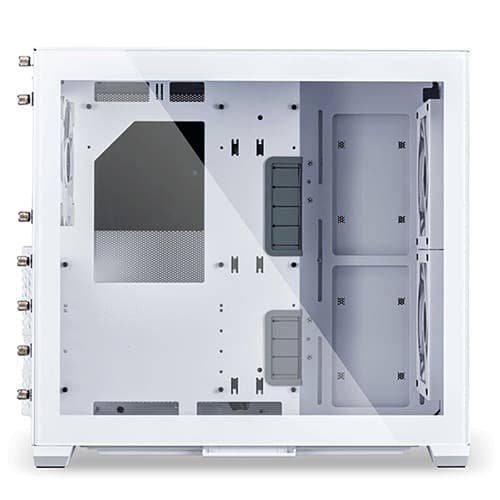

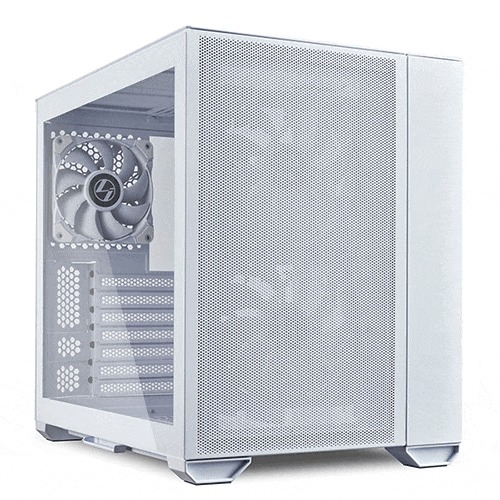

Lian Li O11 Air Mini E-Atx Mid Tower Cabinet With Tempered Glass Side Panel (White)
- Mesh Panels at the top, front and rear, providing extreme airflow
- Modular backplate (5 + 2 expansion slot), supporting MINI-ITX up to E-ATX MB
- Included 2 x 140MM PWM fans at the front, and a 120mm PWM fan at the rear
- Support 6 x 2.5” SSD or 4 x 3.5” HDD + 2 x 2.5” SSD
₹11,299.00
Lian Li O11 Air Mini E-Atx Mid Tower Cabinet With Tempered Glass Side Panel (White)
O11 AIR MINI
Small tower with big airflow, the O11 AIR MINI provides modular design for ATX, M-ATX or ITX motherboards. Being all about the air, O11 AIR MINI has a spacious interior to accommodate multiple confirgurations of fan and radiator setups to maximize the airflow.
EXTREME AIRFLOW
SUPER FINE MESH FRONT, TOP AND SIDE PANELS
The mesh design on the front, top and side panels of the O11 AIR MINI have been optimized to allow maximum airflow from different sides of the case to the temperatures stable and low. The super fine mesh also acts as dust filter to avoid dust buildup inside the case.
2 x 140MM FRONT FANS AND 1 X 120MM REAR FAN INCLUDED
The O11 AIR MINI comes with 2 x 140mm PWM front fans and 1 x 120mm PWM rear fan pre-installed straight out of the box. Get your system up and running faster with ease.
AIR COOLING OR…
The O11 AIR MINI is ideal for air cooling builds, as it has enough clearance for up to 170mm for larger tower coolers.
AIO WATERCOOLING
The O11 AIR MINI also accommodates AIO watercooling with enough installation space for 240mm or 280mm radiators on the top, side and bottom.
UNOBSTRUCTIVE AIRFLOW FOR AIR OR AIO COOLING SETUPS
Designed with optimized mesh pattern on the front, top and side panels, the O11 AIR MINI provides exceptional focused airflow and overall system airflow for both air cooling setups and AIO setups. The spacious interior allows for different fan or radiator configurations to maximize the cooling temperature.
BUILT WITH THE FINEST MATERIALS
The O11 AIR MINI black has a premium hairline brushed aluminum that looks as good as it feels. The O11 AIR MINI white has a minimalist white powder coating. The durable tempered glass allows for easy and carefree maintenance and for showing off the internal components.
MODULAR BACK PANELS FOR COMPATIBILITY WITH ATX, M-ATX OR ITX MOTHERBOARDS
7-slot or 5-slot back panels are included. 7-slot back panel for ATX, M-ATX, ITX motherboards and 5-slot back panel for M-ATX, ITX motherboards.
SUPPORTS REGULAR SIZED ATX POWER SUPPLY
O11 AIR MINI supports up to 200mm long full ATX PSUs to easily swap the power from another system and run the most power hungry systems.
UP TO 6 x SSD OR 4 X HDD + 2 X SSD STORAGE
All storage is tucked away behind the motherboard tray.
A total of 6 x 2.5” drives or 4 x 3.5” + 2 x 2.5” drives can be installed with dedicated mounts for storage.
DUAL-CHAMBER CABLE MANAGEMENT
Cables can be quickly passed through rubber grommets to the second chamber. Multiple tie points and velcro strap channels are provided for tidy cables.
OPTIONAL ACCCESSORY
Vertical GPU – CAN BE USED IN TOP OR BOTTOM MODE.
The vertical GPU bracket can be used as top mode or bottom mode to accommodate clearance for fans and radiators.
| Model | |
|---|---|
| Brand | Lian Li |
| Model | O11AMW |
| Spec | |
| Type | Computer Cabinet |
| Color | White |
| Case Material | 4mm Aluminum Panel 0.8mm Mesh Panel 4.0 mm Tempered Glass |
| Motherboard Compatibility | E-ATX (Max 280 mm wide)/ ATX/ Micro-ATX/ Mini-ITX |
| With Side Panel Window | 4.0 mm Tempered Glass |
| Expansion | |
| Internal 3.5" Drive Bays | 2 X 2.5” SSD + 4 X 3.5” HDD |
| Expansion Slots | 7 or 5 (depends on the back panel) |
| Front Ports | |
| Front Ports | 2 X USB 3.0, 1 X USB 3.1 TYPE-C, 1 X HD AUDIO |
| Cooling System | |
| Side Air duct | No |
| Physical Spec | |
| Dimensions | (D) 400 X (W) 288 X (H) 384 mm |
