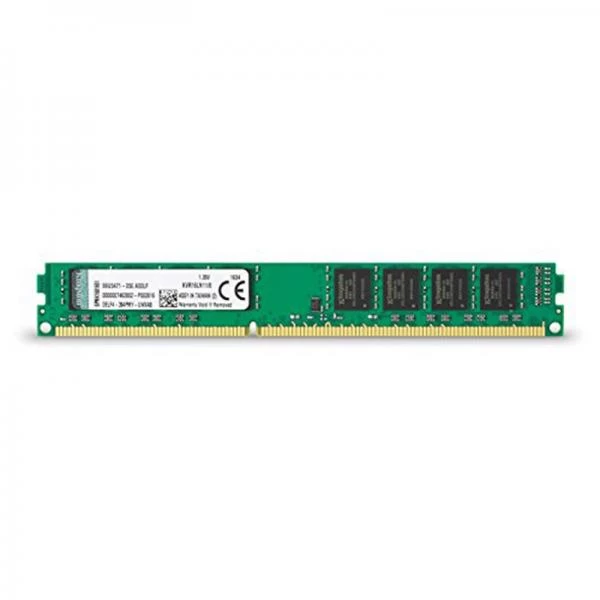

Kingston Value 8GB (8GBX1) DDR3L 1600Mhz Desktop RAM
SKU: KVR16LN11-8
users viewing this item right now
₹2700
Availability
Sold Out
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
Kingston Value Series DDR3L 1600 MHz 8GB Desktop Memory With CL9 Timings.
FEATURES
- Kingston Value, JEDEC standard 1.35V (1.28V ~ 1.45V) Power Supply
- VDDQ = 1.35V (1.28V ~ 1.45V)
- 800MHz fCK for 1600Mb/sec/pin
- 8 independent internal bank
- Programmable CAS Latency: 11
- Programmable Additive Latency: 0, CL - 1 clock
- 8-bit pre-fetch
- Burst Length: 8 (Interleave without any limit, sequential with starting address “000” only), 4 with tCCD = 4 which does not allow seamless read or write [either on the fly using A12 or MRS]
- Bi-directional Differential Data Strobe
- Thermal Sensor Grade B
- Internal(self) calibration : Internal self calibration through ZQ pin (RZQ : 240 ohm ± 1%)
- On Die Termination using ODT pin
- Average Refresh Period 7.8us at lower than TCASE 85°C, 3.9us at 85°C < TCASE < 95°C
- Asynchronous Reset
- PCB: Height 1.18” (30mm), double sided component
Key Features
| Model | KVR16LN11/8 |
| CL(IDD) | 11 cycles |
| Row Cycle Time (tRCmin) | 48.125ns (min.) |
| Refresh to Active/Refresh Command Time (tRFCmin) | 260ns (min.) |
| Row Active Time (tRASmin) | 35ns (min.) |
| Maximum Operating Power | (1.35V) = 2.721W* |
| UL Rating | 94 V - 0 |
| Operating Temperature | 0°C to 85°C |
| Storage Temperature | -55°C to +100°C |
| Warranty | Lifetime |
| Note | ***Features, Price and Specifications are subject to change without notice. |
Brands
Kingston
Ram-Size
8GB
Ram-Type
DDR3
Memory-Type
Desktop Memory
Ean-Upc-Code
740617225914
Product-Type
Normal
Ram-Frequency
1600 MHz
Rated-Voltage
1.5 V
