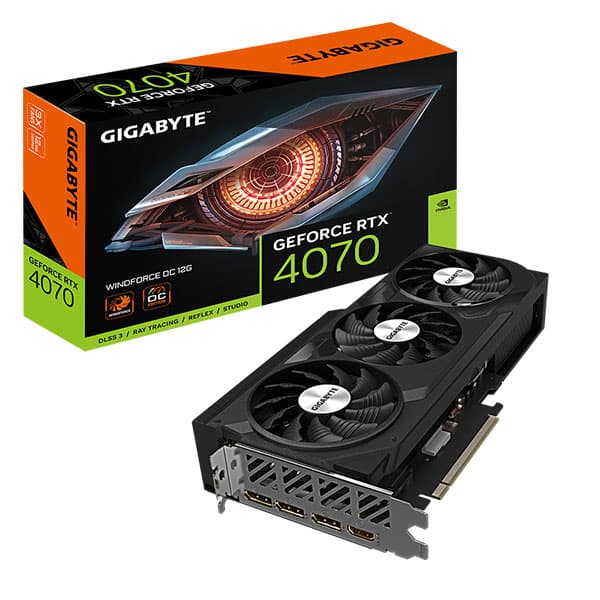

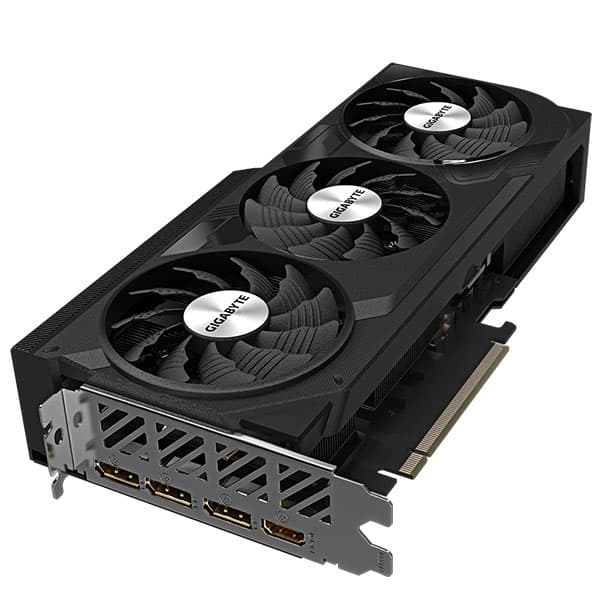

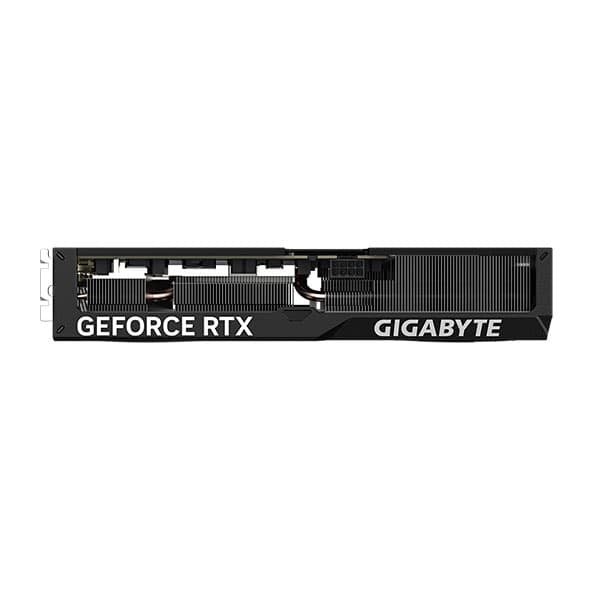

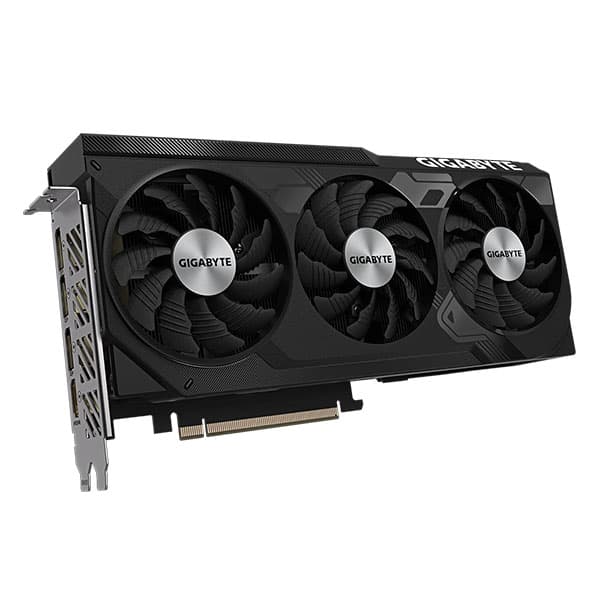

Gigabyte Geforce RTX 4070 Windforce OC 12GB GDDR6X Graphic Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4070
- Integrated with 12GB GDDR6X 192bit memory interface
- WINDFORCE Cooling System
- Protection metal back plate
₹54,299.00
Gigabyte GeForce RTX 4070 WINDFORCE OC 12G 12GB GDDR6X Graphic Card GV-N4070WF3OC-12GD
Overview :
KEY FEATURE
Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
4th Generation Tensor Cores: Up to 4x performance with DLSS 3 vs. brute-force rendering
3rd Generation RT Cores: Up to 2X ray tracing performance
Powered by GeForce RTX™ 4070
Integrated with 12GB GDDR6X 192bit memory interface
WINDFORCE Cooling System
Protection metal back plate
CORE CLOCK
2490 MHz (Reference Card: 2475 MHz)

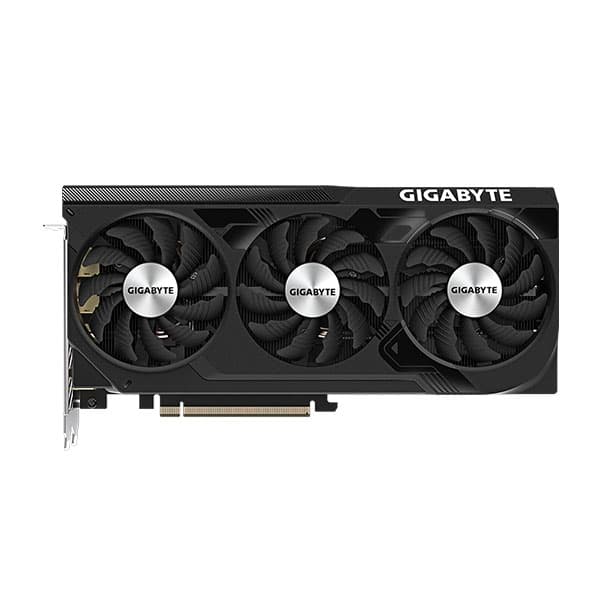

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.

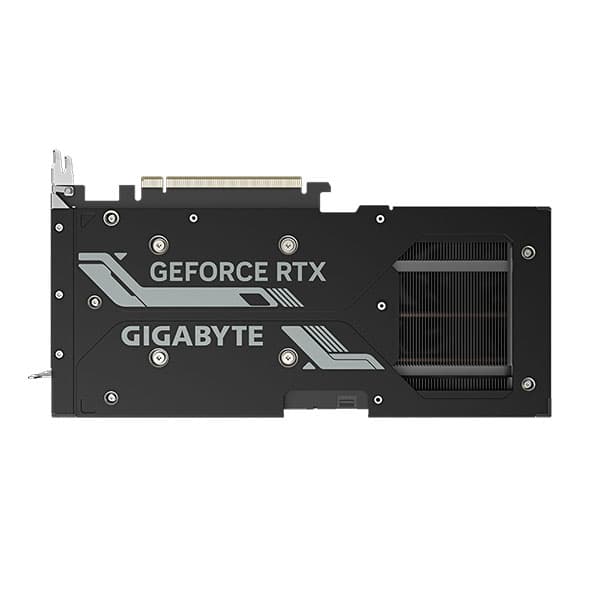

PROTECTION METAL BACK PLATE
The metal back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
| Graphics Processing | GeForce RTX™ 4070 |
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| CUDA Cores | 5888 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 Bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi View | 4 |
| Card Size | L=261 W=126 H=50 mm |
| PCB Form | ATX |
| Direct X | 12 Ultimate |
| Open GL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin*1 |

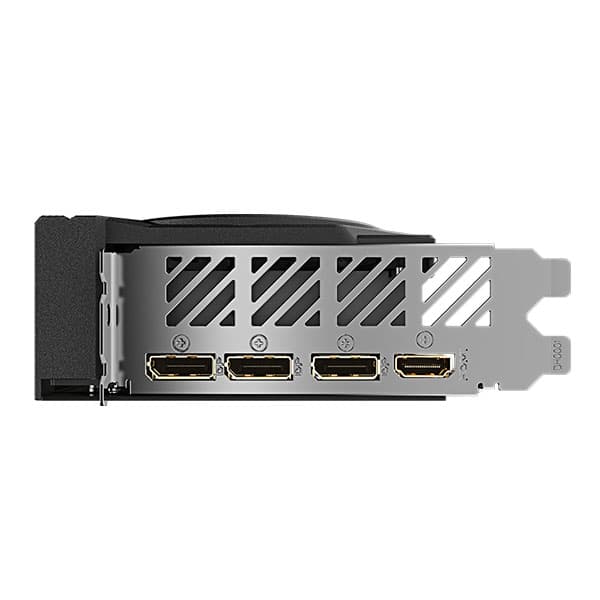

| Output | DisplayPort 1.4a *3 HDMI 2.1a *1 |
| Accessories | 1. Quick guide 2. Warranty registration 3. Anti-sag bracket 4. Anti-sag bracket installation guide 5. One 16-pin to two 8-pin power adaptor 6. AORUS Metal sticker |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
