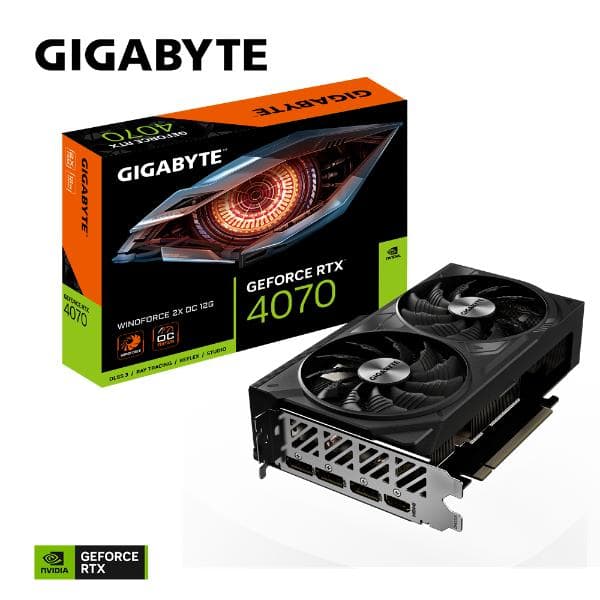

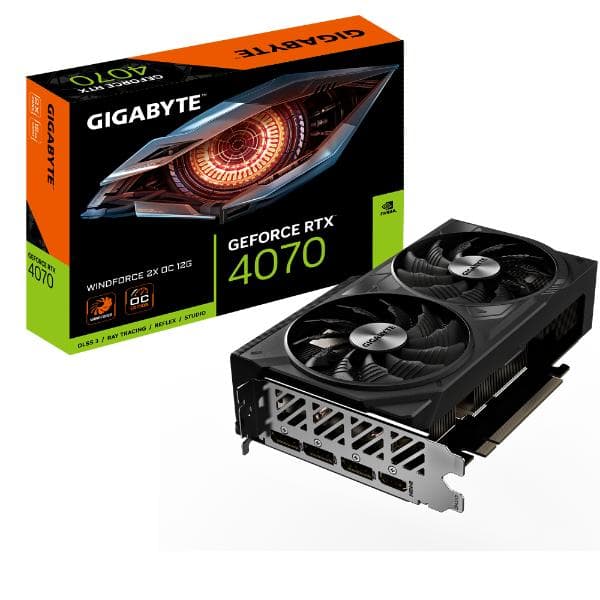

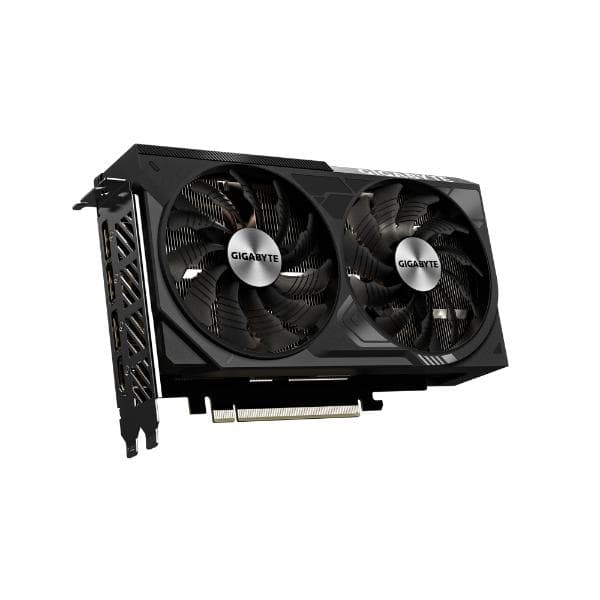

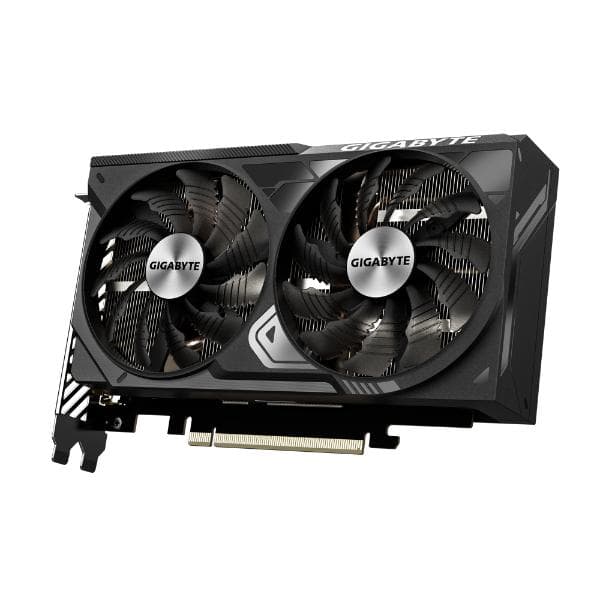

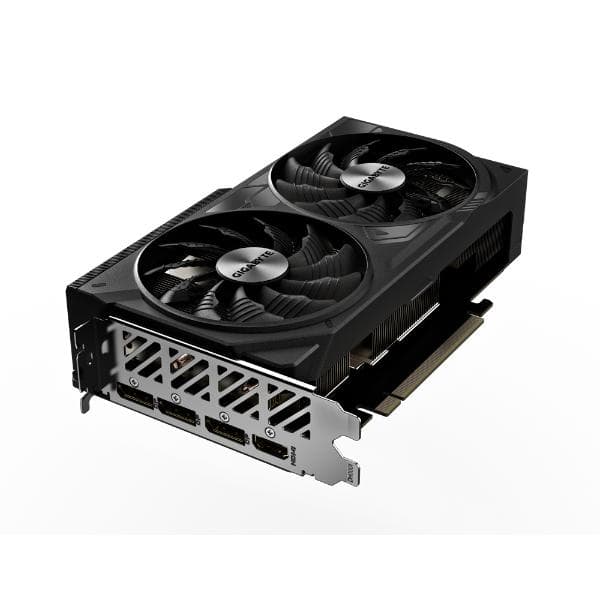

Gigabyte RTX 4070 Windforce 2X OC 12GB GDDR6X Graphic Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architechture, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Powered by GeForce RTX 4070
- Integrated with 12GB GDDR6X 192-bit memory interface
- WINDFORCE Cooling System, RGB Fusion, Dual BIOS, Protection metal back plate, Anti-Sag Bracket
Original price was: ₹154,999.00.₹55,299.00Current price is: ₹55,299.00.

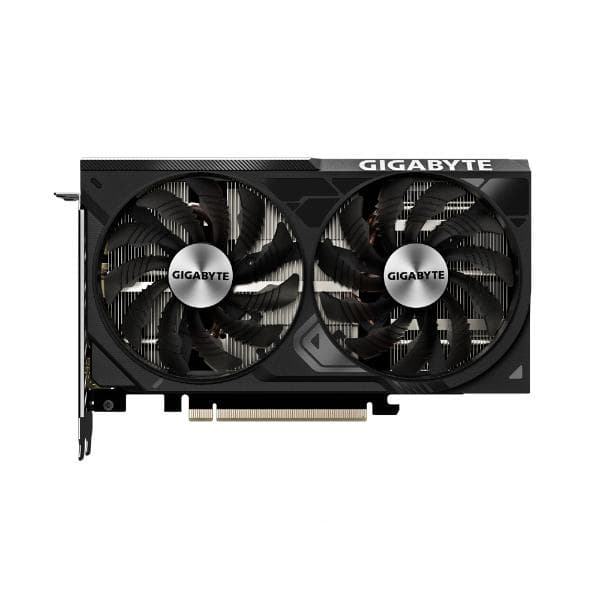

WINDFORCE
COOLING SYSTEM
The WINDFORCE cooling system features two 90mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
SMOOTH AIRFLOW
GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

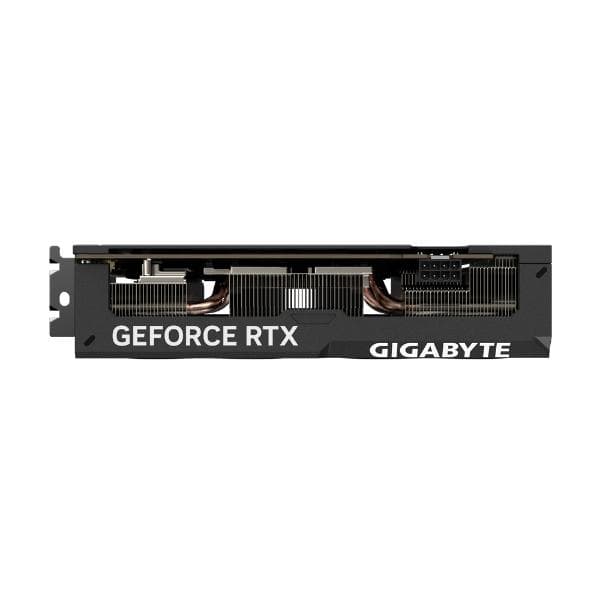

HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
EXCELLENT IN ESSENTIAL

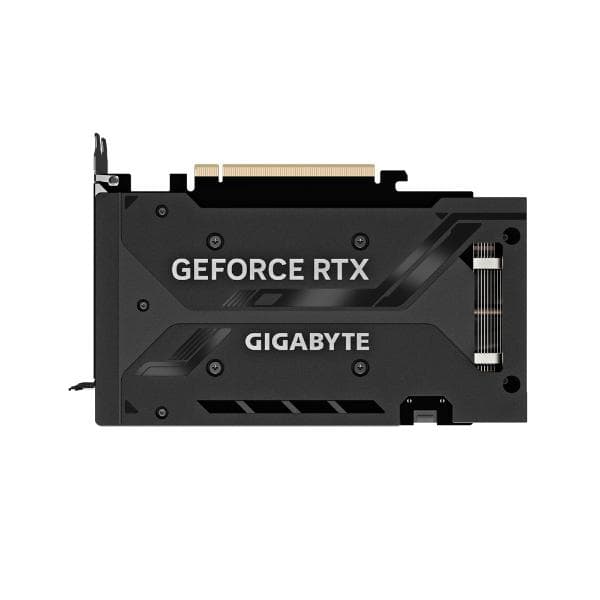

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
BUILD STRONG
ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
GIGABYTE CONTROL CENTER
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides an intuitive interface that allows users to adjust clock speed, voltage, fan mode and power target in real-time.
Specifications
| Specification | Details |
|---|---|
| Core Clock | 2490 MHz (Reference Card: 2475 MHz) |
| CUDA Cores | 5888 |
| Memory Clock | 21 Gbps |
| Memory Size | 12 GB |
| Memory Type | GDDR6X |
| Memory Bus | 192 bit |
| Card Bus | PCI-E 4.0 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=201 W=122.3 H=48.4 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 650W |
| Power Connectors | 8 pin *1 |

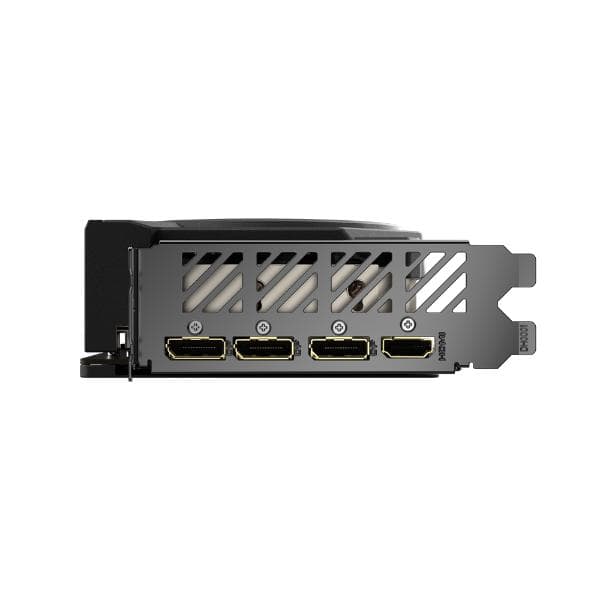

| Output | DisplayPort 1.4a *3, HDMI 2.1a *1 |
| Warranty | 3 years + 1 year on Registration |
| Weight | 1 kg |
|---|---|
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Bus | |
| Memory Series | |
| Product Type | |
| Warranty | |
| EAN / UPC Code |
