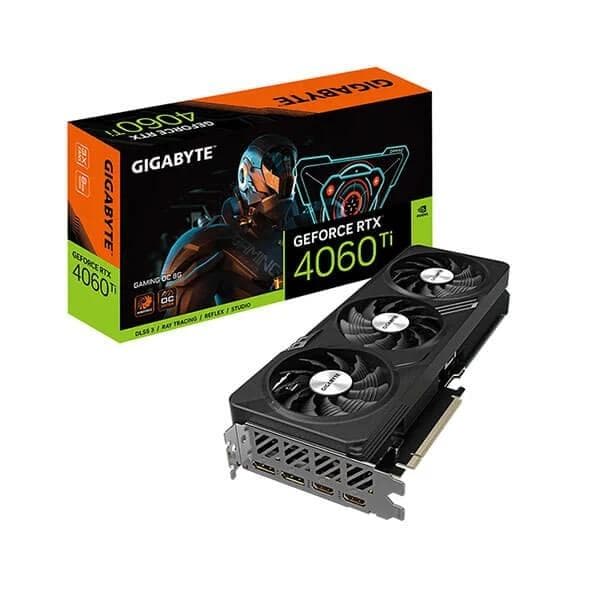

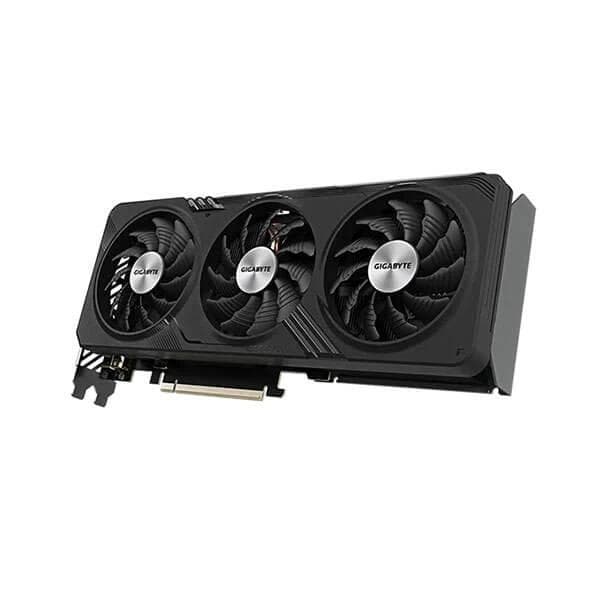

Gigabyte GeForce RTX 4060 Ti Gaming OC 8GB GDDR6 128-Bit Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architechture, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Powered by GeForce RTX 4060 Ti
- Integrated with 8GB GDDR6 128-bit memory interface
₹41,099.00
Overview:
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS
- 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- RGB Fusion
- Dual BIOS

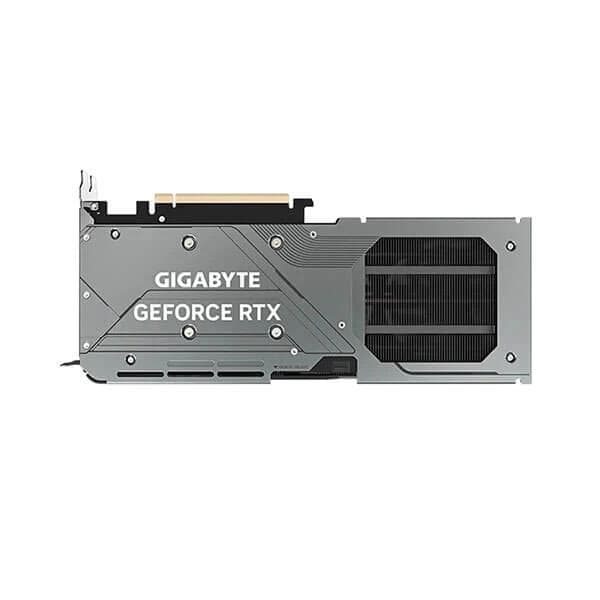

- Protection metal back plate

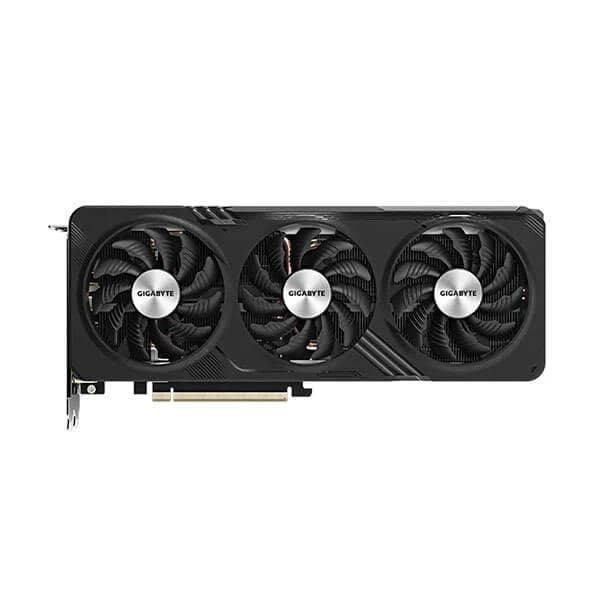

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 4 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Gigabyte GeForce RTX 4060 Ti has Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a metal plate
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.
RGB FUSION
With 16.7M customizable color options and numerous lighting effects, you can choose any lighting effect or synchronize with other devices in GIGABYTE CONTROL CENTER.
| Graphics Processing | GeForce RTX™ 4060 Ti (8GB) |
| Core Clock | 2580 MHz (Reference card: 2535 MHz) |
| Cuda Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 8GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 Bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi View | 4 |
| Card Size | L=281 W=117 H=53 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| Open GL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8 Pin x 1 |

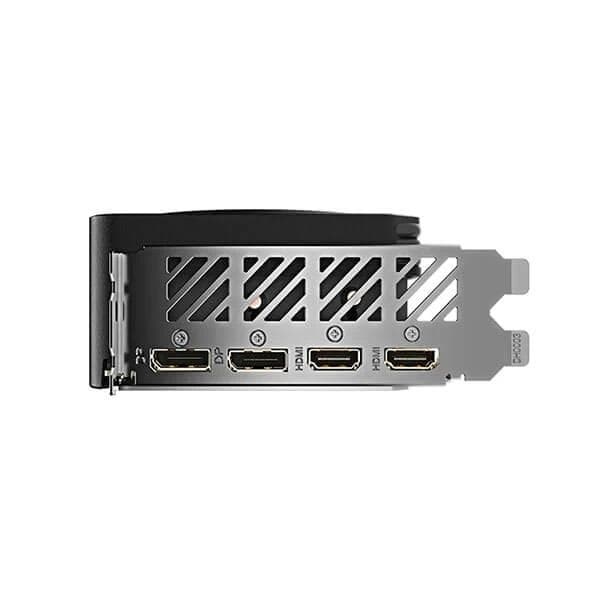

| Output | DisplayPort 1.4a*2 |
| HDMI 2.1a*2 | |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Weight | 1 kg |
|---|---|
| Product Type | |
| Brands | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Series | |
| Warranty | |
| EAN / UPC Code |
