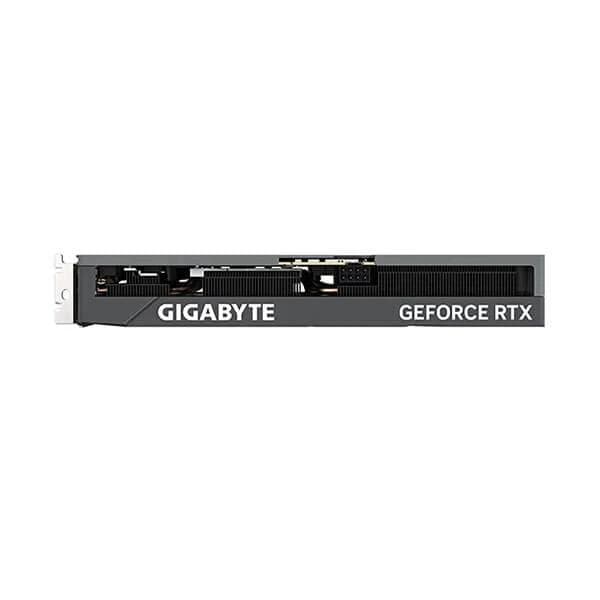

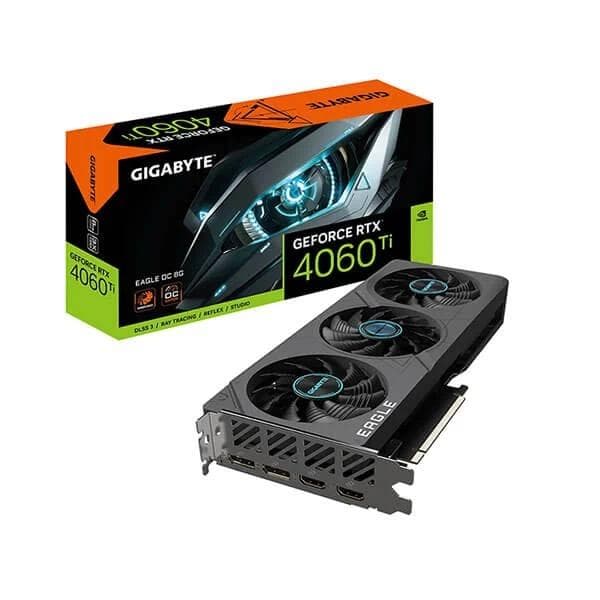

Gigabyte GeForce RTX 4060 Ti Eagle OC 8GB GDDR6 128-Bit Gaming Graphics Card
- Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace architechture, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS 3
- 3rd Generation RT Cores: Up to 2x ray tracing performance
- Powered by GeForce RTX 4060 Ti
- Integrated with 8GB GDDR6 128-bit memory interface
₹38,849.00
Gigabyte GeForce RTX 4060 Ti Eagle OC 8GB GDDR6 128-Bit Gaming Graphics Card
Overview:
- Gigabyte GeForce RTX 4060 Ti Eagle OC Powered by NVIDIA DLSS 3, ultra-efficient Ada Lovelace arch, and full ray tracing
- 4th Generation Tensor Cores: Up to 4x performance with DLSS
- 3 vs. brute-force rendering
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Powered by GeForce RTX™ 4060 Ti (8GB)
- Integrated with 8GB GDDR6 128bit memory interface
- WINDFORCE cooling system
- Dual BIOS
- Protection back plate
WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 80mm unique blade fans, alternate spinning, 3 composite copper heat pipes directly touch the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.
ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.
GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by
HEAT PIPES DIRECT TOUCH
The shape of the pure copper heat pipe maximizes the direct contact area with the GPU. The heat pipe also covers the VRAM through a large metal plate contact to ensure proper cooling.
SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

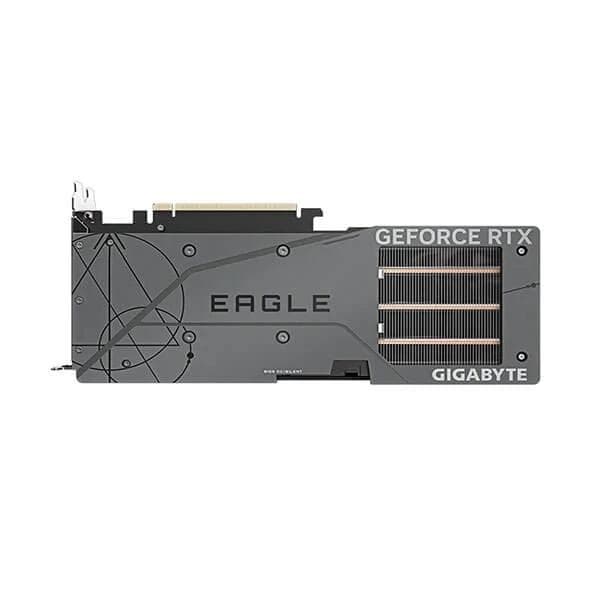

PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
DUAL BIOS
The factory default setting is OC mode, which provides users with the best performance. However, switching to silent mode will enjoy a quieter experience.
Power Through The Game
GIGABYTE offers the best power supply solutions for your graphics cards. You can choose either the AORUS series or the UD series to power your graphics card.
| Graphics Processing | GeForce RTX™ 4060 Ti (8GB) |
| Core Clock | 2550 MHz (Reference card: 2535 MHz) |
| Cuda Cores | 4352 |
| Memory Clock | 18 Gbps |
| Memory Size | 8GB |
| Memory Type | GDDR6 |
| Memory Bus | 128 Bit |
| Card Bus | PCI-E 4.0 |
| Digital Max Resolution | 7680 x 4320 |
| Multi View | 4 |
| Card Size | L=272 W=115 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| Open GL | 4.6 |
| Recommended PSU | 500W |
| Power Connectors | 8 Pin x 1 |
| Output | DisplayPort 1.4a*2 HDMI 2.1a*2 |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note** | **Prices, Specifications & Features are subject to change without notice |
| Weight | 1 kg |
|---|---|
| Brands | |
| Product Type | |
| GPU Chipset | |
| GPU Memory Size | |
| GPU Series | |
| Memory Series | |
| Warranty | |
| EAN / UPC Code |
