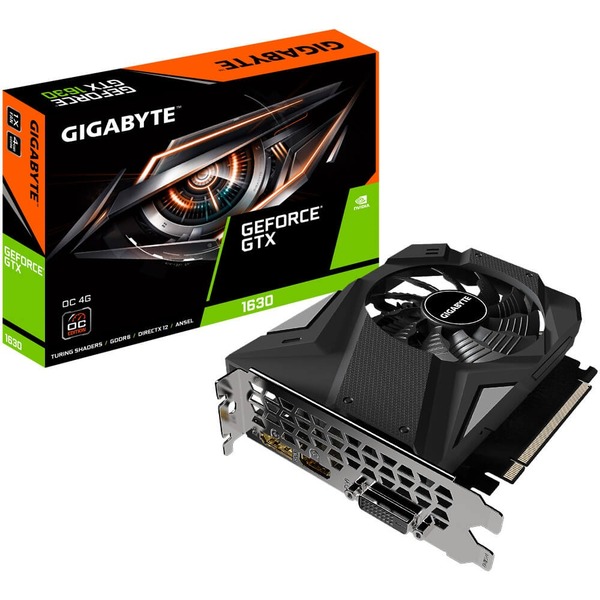

GIGABYTE GeForce GTX 1630 OC 4GB Graphic Card
- Memory Size: 4GB
- Memory Type: GDDR6
- Memory Interface: 64 bit
- Memory Clock: 12000 MHz
Original price was: ₹16,777.00.₹12,999.00Current price is: ₹12,999.00.
GIGABYTE GeForce GTX 1630 OC 4GB Graphic Card
Feature
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GTX 1630 OC Custom-designed cooling system features a 80mm unique blade fan, delivering an effective heat dissipation capacity for higher performance at lower temperatures.
COMPACT SIZE FOR EASY INSTALLATION
With less than 170mm in length, the graphics card can be easily installed in any small chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
ULTRA COOLING
Lower RDS(on) MOSFETs are specially designed to produce lower switching resistance for faster electric current charging and discharging at extremely low temperature.
LOW POWER LOSS
Metal Choke hold energy much longer than common iron-core chokes at high frequency, thus effectively reduce core energy loss and EMI interference.
LONGER LIFE
Lower ESR Solid Capacitors ensure better electronic conductivity for excellent system performance and longer lifespan.
FRIENDLY PCB DESIGN
GTX 1630 OC Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your game’s requirements.
| Chipset | GeForce® GTX 1630 |
| Core Clock | 1815 MHz (Reference Card: 1785 MHz) |
| CUDA® Cores | 512 |
| Memory Size | 4 GB |
| Memory Type | GDDR6 |
| Memory Bus | 64 bit |
| Memory Clock | 12000 MHz |
| Memory Bandwidth | 96 GB/s |
| Card Bus | PCI-E 3.0 x 16 |
| Resolution | 7680x4320 |
| Multi-view | 3 |
| Card size | L=153 W=116 H=36 mm |
| PCB Form | ATX |
| DirectX | 12 API |
| OpenGL | 4.6 |
| Recommended PSU | 300W |
| Power Connectors | N/A |
| Output | DisplayPort 1.4 *1 HDMI 2.0b *1 DVI-D *1 |
| SLI support | N/A |
| Accessories | Quick guide |
| Warranty | 3 Years |
| Note* | Price, feature and specifications are subject to change without notice. |
| Product Type | |
|---|---|
| color | |
| Brands | |
| Memory Bus | |
| Memory Series | |
| GPU Memory Size | |
| GPU Chipset | |
| GPU Series | |
| TDP | |
| Warranty | |
| EAN / UPC Code |
