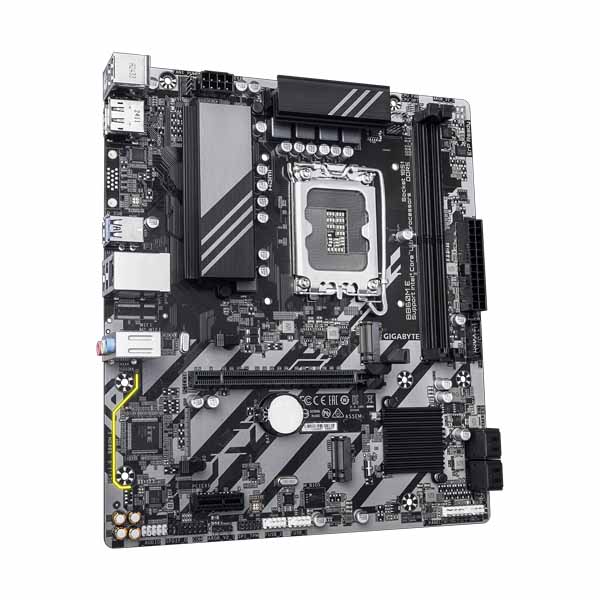

GIGABYTE B860M E LGA 1851 Micro ATX Motherboard
SKU: B860M E
users viewing this item right now
₹17999
₹9292
Save Extra
Availability
In Stock
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
GIGABYTE B860M E LGA 1851 Micro ATX Motherboard
Feature
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage : 2*PCIe 4.0 x4 M.2 Connectors
- Fast Networking : GbE LAN
- Extended Connectivity : HDMI, DisplayPort
Infinite Memory Performance
Gigabyte UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.Effortlessly Boost Your DDR5 Memory Speed
DDR5 XMP Booster feature offers ready-to-use settings derived from analysis of memory IC and PMIC vendor. This allows users to maximize DDR5 memory performance without the hassle of manual tweaking for overclocked DDR5 memory kits.
Boost instantly
Instant memory performance uplift
Hands-off memory tuning
Eliminate manual entry of complex memory settings such as clock, voltage, and timings.
Hassle-free overclocking
Seamlessly overclock for both standard and XMP 3.0 DDR5 memory frequencies.
Incorporated database
Built-in library of pre-optimized configurations for diverse memory chip suppliers.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
* Coming soon
Auto-Overclocking Software by AI model
Unleash Ultimate Performance with One-Click Activation.Auto CPU & DDR5 Memory Boost
One-Click Acceleration:
- Real time Analyze
- OC accuracy UP
- EZ to Pro
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.Smart Fan 6
Superior cooling performance and whisper-quiet operation for your gaming rig.
High Current Support
- Supports both PWM and DC fans, plus water cooling pumps
- Up to 24W (12V x 2A) capacity per fan header
- Built-in over-current protection
Precision Control
- Multiple temperature and fan speed points
- Customizable fan curves for optimal performance
Dual Curve Mode
- Choose between slope and stair modes
- Tailor cooling to your specific needs and preferences
Fan Stop Technology
- Fans can be completely turned off at low temperatures
- Ensures silent operation during light loads
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN with Bandwidth Management
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.* The picture is for reference and may vary by mode.
* Photo for reference only.
High-End Audio Capacitors
These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects.Audio Noise Guard
Essentially separates the board’s sensitive analog audio components from potential noise pollution at the PCB level.Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
Key Features
| Category | Details |
|---|---|
| CPU | LGA1851 socket: Support for Intel® Core™ Ultra Processors (Go to GIGABYTE's website for the latest CPU support list.) L3 cache varies with CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | Support for DDR5 8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C.)/7400(O.C.)/7200(O.C.)/7000(O.C.)/6800(O.C.)/6600(O.C.)/6400/5600 MT/s memory modules |
| 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory | |
| Dual channel memory architecture | |
| Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) | |
| Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules | |
| Support for Extreme Memory Profile (XMP) memory modules | |
| (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.) | |
| Onboard Graphics | Integrated Graphics Processor-Intel® HD Graphics support: |
| - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz | |
| * Support for HDMI 2.1 version and HDCP 2.3. | |
| - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz | |
| * Support for DisplayPort 2.1 version. | |
| (Graphics specifications may vary depending on CPU support.) | |
| Audio | Realtek® Audio CODEC |
| High Definition Audio | |
| 2/4/5.1/7.1-channel | |
| * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. | |
| Support for S/PDIF Out | |
| LAN | Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps) |
| Expansion Slots | CPU: |
| - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) | |
| * The PCIEX16 slot can only support a graphics card or an NVMe SSD. | |
| Chipset: | |
| - 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) | |
| Storage Interface | Chipset: |
| - 2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) | |
| - 4 x SATA 6Gb/s connectors | |
| RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices | |
| USB | Chipset: |
| - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) | |
| - 2 x USB 2.0/1.1 ports on the back panel | |
| Chipset+USB 2.0 Hub: | |
| - 4 x USB 2.0/1.1 ports available through the internal USB headers | |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector |
| 1 x 8-pin ATX 12V power connector | |
| 1 x CPU fan header | |
| 1 x CPU fan/water cooling pump header | |
| 1 x system fan/water cooling pump header | |
| 2 x addressable RGB Gen2 LED strip headers | |
| 2 x M.2 Socket 3 connectors | |
| 4 x SATA 6Gb/s connectors | |
| 1 x front panel header | |
| 1 x front panel audio header | |
| 1 x S/PDIF Out header | |
| 1 x USB 3.2 Gen 1 header | |
| 2 x USB 2.0/1.1 headers | |
| 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) | |
| 1 x serial port header | |
| 1 x Clear CMOS jumper | |
| Back Panel Connectors | 1 x PS/2 keyboard/mouse port |
| 1 x HDMI port* | |
| 1 x DisplayPort* | |
| 4 x USB 3.2 Gen 1 ports | |
| 2 x USB 2.0/1.1 ports | |
| 1 x RJ-45 port | |
| 3 x audio jacks | |
| * Actual support may vary by CPU. | |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage detection |
| Temperature detection | |
| Fan speed detection | |
| Water cooling flow rate detection | |
| Fan fail warning | |
| Fan speed control | |
| * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. | |
| BIOS | 1 x 256 Mbit flash |
| Use of licensed AMI UEFI BIOS | |
| PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 | |
| Unique Features | Support for GIGABYTE Control Center (GCC) |
| * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. | |
| Support for Q-Flash | |
| Support for Smart Backup | |
| Bundled Software | Norton® Internet Security (OEM version) |
| LAN bandwidth management software | |
| Operating System | Support for Windows 11 64-bit |
| Support for Windows 10 64-bit | |
| * The Intel® NPU driver is only supported on Windows 11. | |
| Form Factor | Micro ATX Form Factor; 24.4cm x 21.5cm |
| Warranty | 3-year warranty |
Color
Black
Brands
Gigabyte
Socket
LGA 1851
Chipset
B860
Warranty
3 Years
Product-Type
Normal
Motherboard-Size
mATX
Motherboard-Series
Gigabyte Ultra Durable
