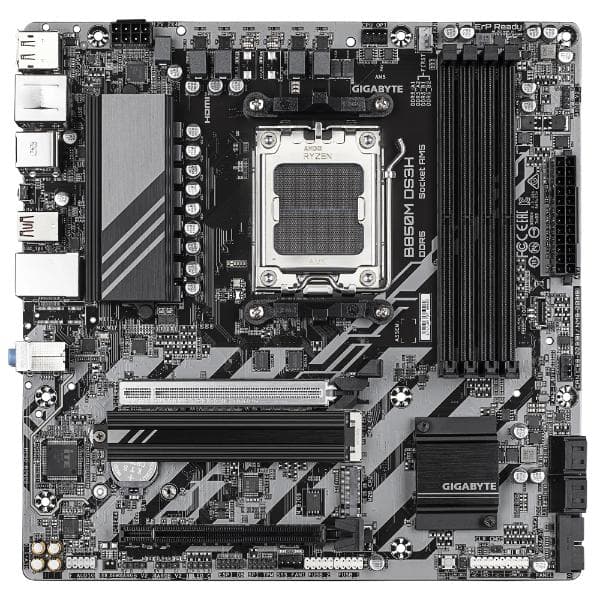

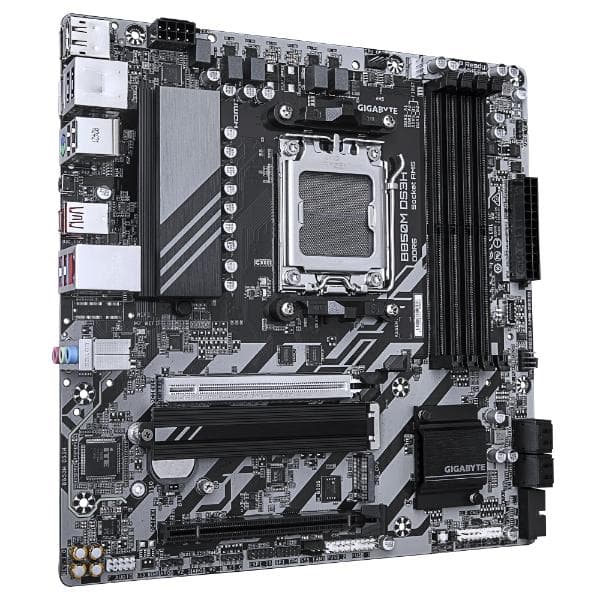

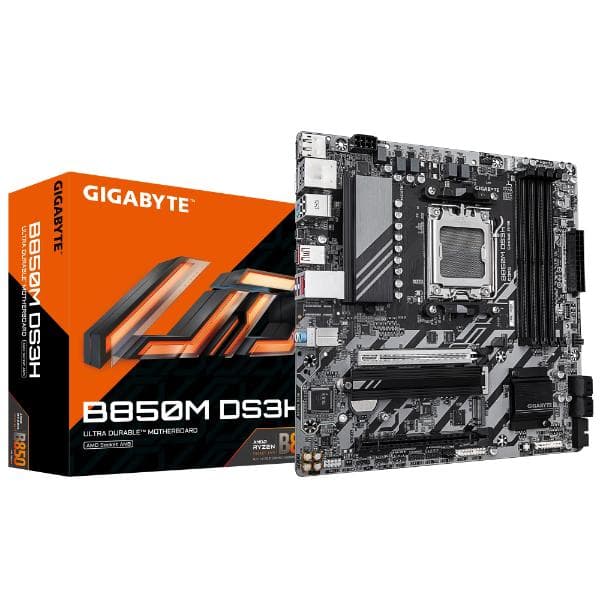

Gigabyte B850M DS3H AM5 M-ATX AMD Motherboard

EMI & Split Payment Options

Motherboard Gigabyte AMD Motherboard Gigabyte Motherboard

Gigabyte B850M DS3H AM5 M-ATX AMD Motherboard

Name: Gigabyte B850M DS3H AM5 M-ATX AMD Motherboard
Brand: Gigabyte
SKU: B850M DS3H
Price: 13099.00 INR
Availability: OutOfStock

SKU: B850M DS3H

Gigabyte

users viewing this item right now

₹29999

₹13099 Save Extra

Availability

Sold Out

Micro-ATX Form Factor
AMD B850 Chipset
AM5 Socket
4 x Dual-Channel DDR5 Slots
PCIe 5.0

Gigabyte B850M DS3H AM5 M-ATX AMD Motherboard

Key Features

X3D Turbo Mode : Unleash new era gaming performance
AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
Digital twin 8+2+2 phases VRM solution
Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
EZ-Latch : PCIe x16 Slot with Quick Release Design
M.2 EZ-Latch Plus : screwless installation for M.2 SSDs
Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 slot
M.2 Thermal Guard : To Ensure M.2 SSD Performance
Fast Networking : 2.5GbE LAN
Extended Connectivity : 2*DP, HDMI

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

2.5GbE LAN

Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.

PCIe 5.0 / 4.0 Hardware Design

Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.

* Photo for reference only.

Hi-Fi Audio

High-End Audio CapacitorsAudio Noise Guard

* Photo for reference only.

Key Features

Motherboard
Platform	AMD
Socket	AM5
Cpu Type	Ryzen 9000,Ryzen 8000,Ryzen 7000
Chipset	B850
Memory Speed	up to 8200
Max Memory Support	256 GB
Supported Memory Type	DDR5
Channel Supported	Dual Channel
Memory Feature	Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE\'s website for more information.)
Graphics Port	1 x HDMI,2 x DisplayPort
Expansion Slots	1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

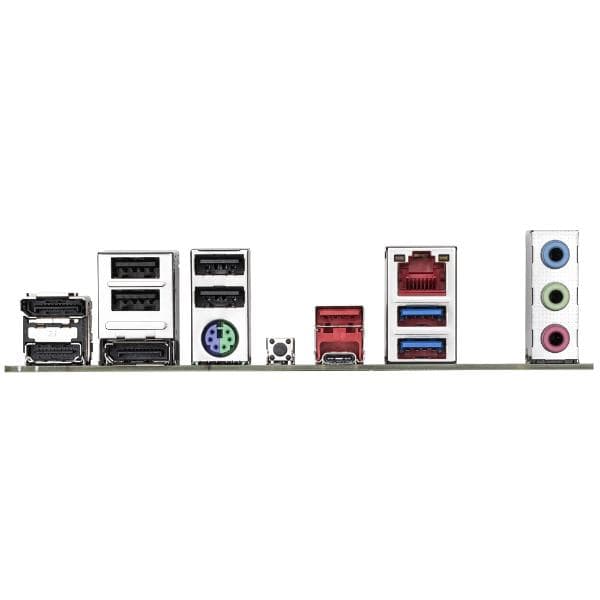

Back Panel I/O Ports	1 x HDMI port (Note) 2 x DisplayPorts (Note) 1 x Q-Flash Plus button 1 x PS/2 keyboard/mouse port 1 x USB 3.2 Gen 2 Type-A ports (red) 1 x USB Type-C® port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 3 x audio jacks
Internal I/O Connector	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x CPU fan/water cooling pump header 1 x system fan header 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x SATA 6Gb/s connectors 2 x M.2 Socket 3 connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper
Form Factor	Micro-ATX
Warranty	3 Years
Note	***Features, Price and Specifications are subject to change without notice. Images use for Representation Purpose Only.
